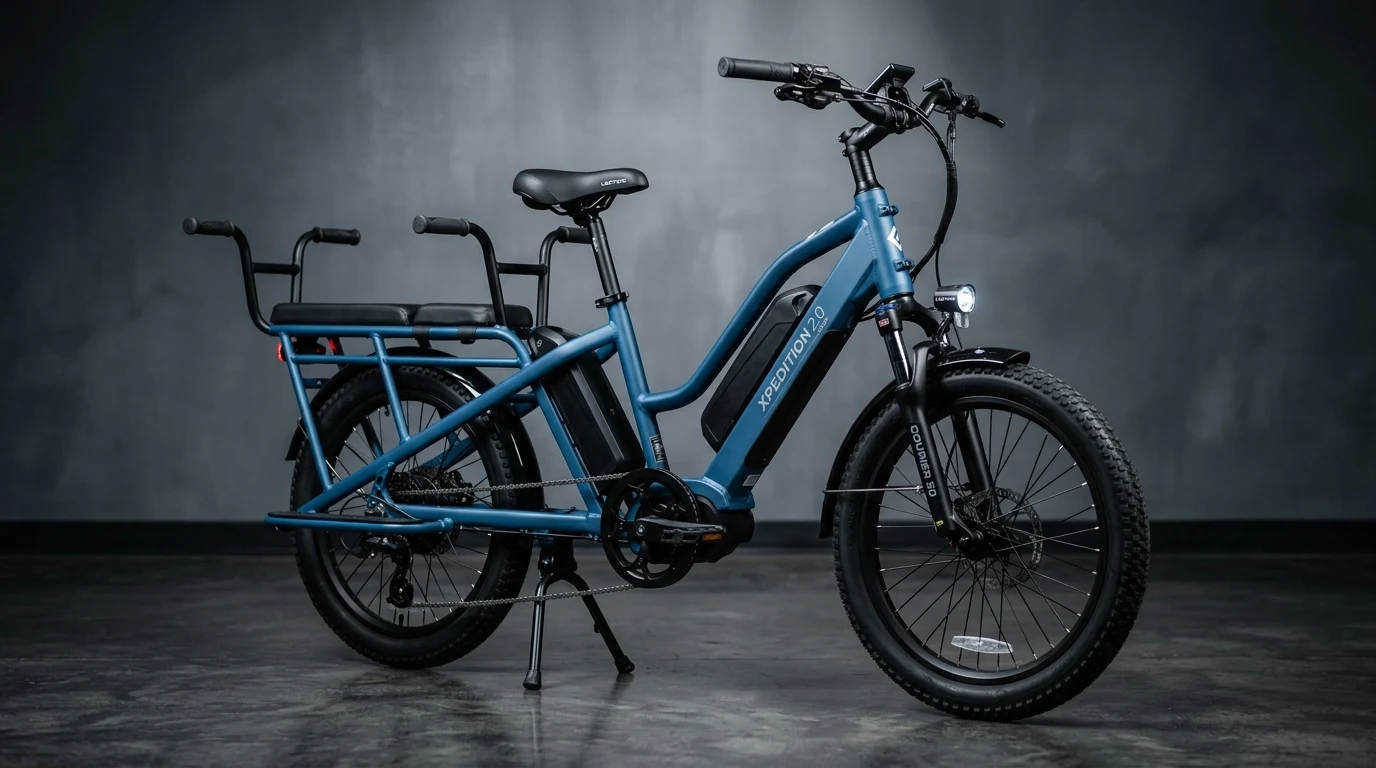

Lectric XPedition 2.0 Review (2026): 450 lb Payload, PWR+ Torque Sensor & Specs
The ultimate high-value longtail cargo electric bike upgraded with the PWR+ torque sensor, Courier 50mm suspension fork, 1,310W peak rear hub motor, 450 lb payload rating, and dual battery options delivering up to 170 miles of range.
Custom programming delivers natural pedal response with zero lag when starting from dead stops with heavy cargo.
Custom-engineered cargo suspension fork soaks up road vibrations without flexing under 450 lb loads.
Hydraulic mineral oil calipers paired with extra-thick rotors resist brake fade under high gross weights.
High-contrast color cockpit screen with real-time wattage display, battery bar, and 5V USB output.
1,310W Peak Hub Motor with PWR+ Torque Sensor
Custom-tuned firmware regulates current output based on real-time pedal pressure.
Power Levels & Assist Speeds
PWR+ Torque Sensing Algorithm
Measures pedaling force directly at the bottom bracket to deliver instantaneous motor assistance when starting on steep hills.
Dual Parallel Battery Management
Dual battery connectors draw power simultaneously from both packs, reducing battery sag and extending overall cell life.
Twist Grip Throttle
Right-hand half-twist throttle provides full 20 mph on-demand power without pedaling, ideal for crossing intersections.
Loaded Range & Hill Climbing Benchmarks
Field tests under 350 lb payload conditions across flat terrain and steep grades.
Measured on flat pavement in PAS 1 on dual 17.5Ah battery setup.
Easily configurable in the display menu between Class 1, 2, and 3 modes.
Real-world mixed throttle and high-assist riding with two kids on the back.
Reinforced Longtail Frame & Courier Fork
Custom 6061 aluminum frame with integrated 300 lb rear rack and 20x3.0" puncture-resistant tires.
Chassis & Hardware Architecture
- Frame: 6061 Heat-Treated Aluminum Longtail Chassis
- Front Fork: Custom Courier 50mm Hydraulic Suspension Fork
- Brakes: 2-Piston Hydraulic Disc with 180mm x 2.3mm Rotors
- Rear Rack: Structural Integrated Longtail Rack (300 lb rating)
- Tires: 20 x 3.0" Custom Puncture-Resistant Heavy-Duty Tires
- Kickstand: Dual-Leg Spring-Loaded Center Stand with Wide Footprint
Dimensions & Passenger Fit
- Total Bike Length: 76.5 inches
- Seat Height Range: 30" to 38" (Fits riders 4'11" to 6'5")
- Rear Rack Deck Length: 31 inches (Fits 2 Thule Yepp Maxi seats)
- Step-Through Height: Low 18.5-inch standover clearance
- Total Bike Weight: 34 kg (75 lbs with single battery)
- Foldable Stem: Quick-release folding handlebar stem for SUV transport
Passenger Accommodation & Daily Utility
Modular rear accessories, dual child seat compatibility, and comfort saddle.
Modular Orbitor Cargo Cage
The optional Orbitor cargo rail surrounds passengers safely, while cushioned seat pads and running boards provide comfortable footrests for growing children. The rack also accepts heavy grocery panniers and delivery crates.
Comfort Cockpit & Dual Stand Stability
The heavy-duty dual-leg center stand elevates the rear wheel, allowing parents to load children or cargo securely without the bicycle tipping over. An ergonomic step-through frame makes mounting effortless.
Complete 30-Point Technical Spec Matrix
Detailed engineering specifications across powertrain, chassis, and utility components.
Powertrain & Battery
- Motor: 750W Nominal / 1,310W Peak Geared Rear Hub
- Motor Torque: 85 Nm
- Pedal Sensor: PWR+ Dynamic Torque Sensor
- Primary Battery: 48V 13Ah (624Wh) or 17.5Ah (840Wh)
- Secondary Battery: 48V 13Ah or 17.5Ah Swappable Pack
- Total Dual Capacity: Up to 1,680 Wh
- Charger: 48V 3A Fast Charger
- Throttle: Right-Side Half-Twist Grip
- Assist Modes: 5 Levels of PWR+ Torque-Assist
- Top Speed: Up to 28 mph (Class 3 configurable)
Chassis & Hardware
- Frame: 6061 Aluminum Step-Through Longtail
- Front Fork: Courier 50mm Hydraulic Suspension Fork
- Rear Rack: Welded Aluminum (300 lb capacity)
- Brakes: 180mm Hydraulic Disc Brakes (2.3mm thick)
- Tires: 20 x 3.0" Custom Heavy-Duty Puncture Resistant
- Rims: Double-Wall Aluminum 36-Hole Rims
- Drivetrain: Shimano 8-Speed Derailleur (11-34T)
- Shifter: Shimano 8-Speed Trigger Shifter
- Gross Capacity: 450 lbs (204 kg) Total Payload
- Bike Weight: 75 lbs (Single) / 83 lbs (Dual Battery)
Utility & Electrical
- Display: Color LCD Screen with USB Charging Port
- Headlight: Integrated 115-Lux LED Projector
- Taillight: Integrated Brake Light with Flashing Signal
- Fenders: Front and Rear Full-Coverage Metal Fenders
- Center Stand: Dual-Leg Spring-Loaded Cargo Stand
- Handlebar Stem: Quick-Release Telescoping & Folding Stem
- Chain Guard: Full Plastic Passenger Chain Guard
- Saddle: Custom High-Density Foam Comfort Saddle
- Seatpost: 31.6mm Rigid Post (Suspension Post Compatible)
- Certifications: UL 2849 & UL 2271 Certified Battery System
Editorial Verdict & Buying Guidance
Final scorecard, utility capabilities, and family buying recommendation.
Why Buy the XPedition 2.0
- PWR+ torque sensor delivers smooth, natural power without jerky cadence spikes.
- Massive 450 lb total payload and 300 lb rear rack support two children easily.
- Courier 50mm suspension fork absorbs harsh potholes and road bumps.
- Extra-thick 2.3mm hydraulic disc brake rotors provide reliable stopping power.
- UL 2849 fire-safety certification delivers complete peace of mind when charging at home.
Consider Alternatives If
- You require a compact bike for frequent bus or train multi-modal commuting.
- You prefer front-loading box cargo bikes (consider the Urban Arrow Family).
- You demand internal gear hubs and carbon belt drive maintenance-free systems.
Technical Deep Dive: PWR+ Firmware & Courier Kinematics
The 2026 Lectric XPedition 2.0 directly answers feedback from commercial delivery fleets and cargo-hauling families. The introduction of Lectric's PWR+ torque-sensing programming replaces cadence-only on/off power delivery. By reading pedal force 1,000 times per second, the motor controller delivers proportional wattage, preventing wheelspin on wet pavement.
Courier 50mm Suspension Fork Dynamics
Standard bicycle suspension forks often bind when loaded with heavy front rack cargo. Lectric developed the custom Courier 50mm hydraulic fork with reinforced stanchions and custom spring valving. The fork isolates the rider's wrists and front cargo basket from high-frequency road vibrations while maintaining precise steering tracking under full 450 lb loads.
The XPedition 2.0 transforms longtail cargo riding from a cumbersome chore into a smooth, effortless car replacement for family hauling.
Thermal Dissipation & 2.3mm Rotors
To maximize safety on steep downhill descents with two passengers on board, Lectric upgraded the hydraulic disc brakes to 2.3mm extra-thick steel rotors. These heavy-duty rotors resist thermal warpage and dissipate braking heat 25% faster than standard 1.8mm bicycle discs, delivering fade-free stopping power.
Frequently Asked Questions: Lectric XPedition 2.0
The XPedition 2.0 introduces the PWR+ torque sensor for natural pedal engagement, the custom Courier 50mm hydraulic suspension fork, a 1,310W peak motor with 85 Nm of torque, dual battery options yielding up to 170 miles of range, and a heavy-duty rear rack rated for 300 lbs.
The XPedition 2.0 has an overall payload capacity of 450 lbs (204 kg), with the integrated rear cargo rack supporting up to 300 lbs (136 kg)—sufficient for two child seats or an adult passenger.
It is equipped with a 750W nominal / 1,310W peak rear hub motor delivering 85 Nm of torque, capable of Class 1 (20 mph), Class 2 (20 mph with throttle), or unlocked Class 3 (28 mph with pedal assist).
Riders can choose a single 13Ah (624Wh) battery, a dual 13Ah pack (1,248Wh, 150-mile claimed range), or a dual 17.5Ah long-range pack (1,680Wh, 170-mile claimed range).
It features dual hydraulic disc brakes with oversized 180mm x 2.3mm extra-thick rotors to dissipate heat under heavy full-capacity cargo descents.
The 2026 Lectric XPedition 2.0 starts at $1,699 USD for the single battery version and $1,999 USD for the dual-battery long-range model.
