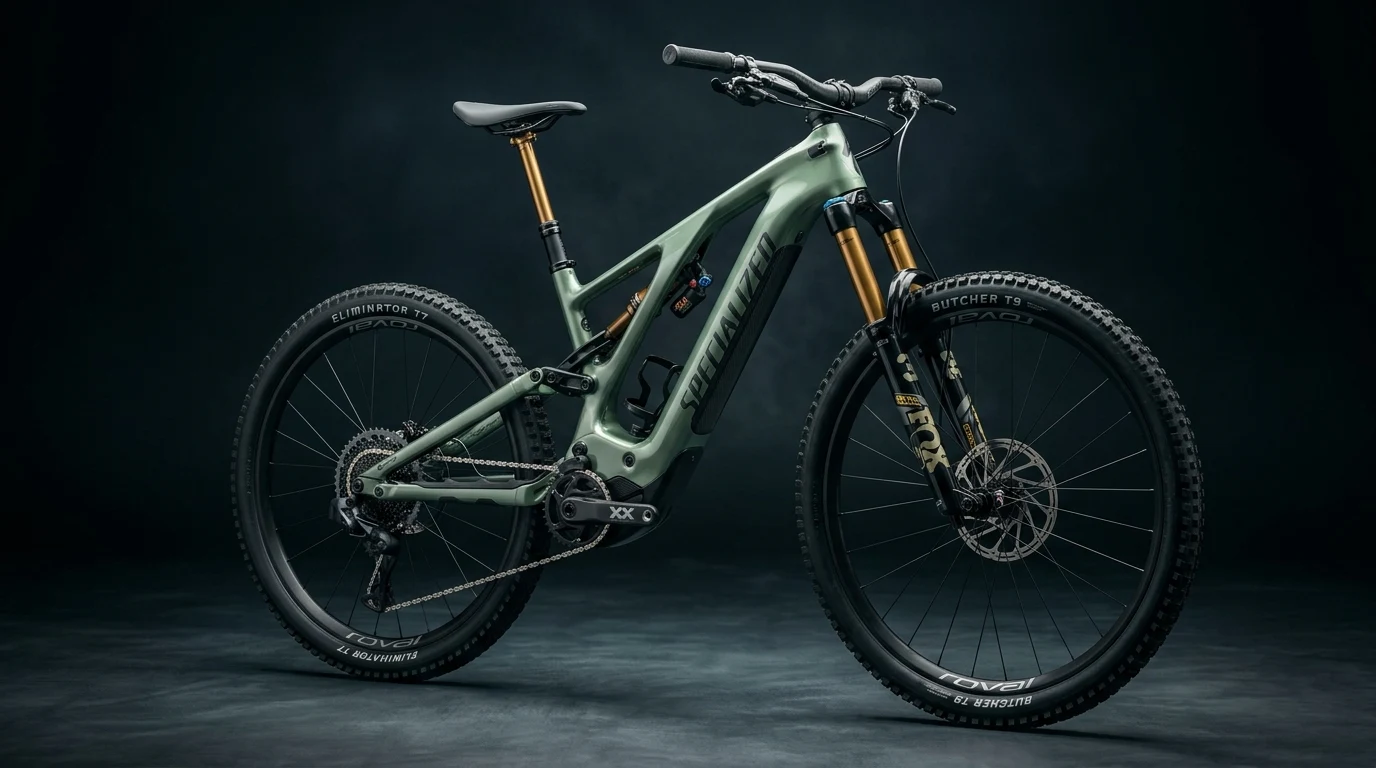

Specialized Turbo Levo Gen 4 Review (2026): 101 Nm Motor, 840Wh Battery & e-MTB Specs
The benchmark full-power electric mountain bike built with the Specialized 3.1 custom-tuned mid-drive motor, 840Wh internal downtube battery, 160mm/150mm FOX Factory GripX2 suspension, FACT 11m carbon chassis, and MasterMind TCU digital connectivity.
Progressive linkage progression curve with bottom-out resistance for steep technical enduro descents.
Multiplies rider effort smoothly with zero cadence drop-off on punchy climbs.
Adjust head tube angle between 63.5° and 65.5° and bottom bracket height by 7mm.
Color top tube display with on-the-fly 10% assist step adjustments and GPS cadence tracking.
Specialized 3.1 Custom-Tuned Powertrain
Full-power 101 Nm mid-drive motor paired with 840Wh high-density downtube battery.
Motor Torque & Power Output Curves
Steel Belt Drive Reinforcement
Internal steel-reinforced belt drives eliminate thermal slippage and sustain peak torque on sustained 25% technical grades.
MicroTune 10% Step Adjust
Handlebar remote enables immediate 10% assist step adjustments without removing hands from the grips.
840Wh High-Density Cell Architecture
Slotted battery enclosure delivers lower center-of-gravity placement with rapid-release locking mechanism.
Dyno Testing & Field Range Metrics
Real-world battery longevity, ascent speed, and motor thermal benchmarks.
Measured on rolling singletrack in mixed Trail and Eco assist modes.
Total sustained alpine ascent capacity on standard 840Wh battery.
Smooth magnetic sensor deceleration with zero motor drag past the cutoff speed.
FACT 11m Carbon Chassis & Fox 38 Suspension
Dedicated mullet frame geometry with 6-way adjustable trail configuration.
Frame & Hardware Architecture
- Frame Material: Specialized FACT 11m full carbon fiber construction
- Front Suspension: FOX FLOAT 38 Factory 29", GripX2 damper, 160mm travel
- Rear Shock: FOX FLOAT X2 Factory, 2-position lever, 210x55mm
- Wheel Standard: 29" Front / 27.5" Rear Roval Traverse Carbon rims
- Brake Calipers: SRAM Maven Silver 4-piston hydraulic with 220mm/200mm HS2 rotors
- Seatpost: RockShox Reverb Stealth wireless dropper post
S3 Frame Trail Geometry
- Head Tube Angle: 63.5° (Slack) to 65.5° (Steep) via eccentric headset cups
- Seat Tube Angle: 76.5° effective angle for steep climbing position
- Chainstay Length: 442mm in low setting, 436mm in short setting
- Bottom Bracket Drop: 27mm in Low / 20mm in High setting
- Reach: 457mm on S3 chassis for centered rider balance
- Wheelbase: 1,232mm for high-speed downhill stability
MasterMind TCU & Trail Cockpit
Clean internal routing, integrated top tube display, and customizable telemetry screens.
Digital Control & Rider Interface
The MasterMind TCU display sits flush in the carbon top tube, protected by Gorilla Glass. It delivers customizable screens displaying real-time power, cadence, battery percentage with 1% accuracy, altitude gain, and heart rate monitor integration.
Handlebar Remote Ergonomics
The compact handlebar remote occupies minimal grip real estate, enabling seamless pairing with wireless SRAM AXS shifters and dropper levers for an uncluttered trail cockpit.
Complete 30-Point Technical Spec Matrix
Detailed engineering specifications across powertrain, chassis, and electronics.
Powertrain & Electrical
- Motor: Specialized 3.1 Custom RX Trail Tuned
- Peak Torque: 101 Nm
- Peak Output: 700 Watts
- Battery: 840 Wh Lithium-Ion Downtube Pack
- Charger: Custom 42V / 4A Fast Charger
- Charge Time: 3.8 hours (0 to 100%)
- Range Extender: Optional 250 Wh Bottle Cage Pack
- Top Assist Speed: 20 mph (Class 1)
- Assistance Modes: Eco, Trail, Turbo, MicroTune
- Walk Assist: Push-button motor walk mode
Chassis & Suspension
- Frame: FACT 11m Full Carbon, S-Sizing geometry
- Front Fork: FOX 38 Factory GripX2, 160mm travel
- Rear Shock: FOX Float X2 Factory, 150mm travel
- Front Wheel: Roval Traverse Carbon 29" (30mm internal)
- Rear Wheel: Roval Traverse Carbon 27.5" (30mm internal)
- Front Tire: Specialized Butcher GRID Gravity T9 29x2.6"
- Rear Tire: Specialized Eliminator GRID Gravity T7/T9 27.5x2.6"
- Brakes: SRAM Maven Silver 4-piston hydraulic
- Rotors: 220mm Front / 200mm Rear SRAM HS2
- Kerb Weight: 22.8 kg (50.2 lbs, Size S3)
Drivetrain & Electronics
- Rear Derailleur: SRAM X0 Eagle Transmission AXS
- Shifter: SRAM AXS POD Ultimate Controller
- Cassette: SRAM XS-1295 T-Type 10-52T (12-speed)
- Chain: SRAM X0 Eagle T-Type Flattop
- Crankset: Praxis Carbon e-Cranks 160mm
- Chainring: SRAM T-Type 32T Steel
- Display: Specialized MasterMind TCU, full color
- Connectivity: BLE / ANT+ Specialized App integration
- Dropper Post: RockShox Reverb Stealth 170mm (S3)
- Saddle: Specialized Bridge Comp Hollow Ti Rails
Editorial Verdict & Buying Guidance
Final scorecard, trail capabilities, and target rider recommendation.
Why Buy the Turbo Levo Gen 4
- 101 Nm Specialized 3.1 motor delivers class-leading natural torque without jerky surges.
- 840Wh downtube battery provides genuine 5+ hour mountain epics.
- Dedicated mullet setup delivers supreme rear-wheel maneuverability on steep berms.
- Comprehensive 6-way geometry adjustments adapt the frame to any terrain.
- MasterMind TCU offers the most refined digital cockpit in the cycling industry.
Consider Alternatives If
- You prioritize featherweight sub-18kg SL e-bikes (consider the Turbo Levo SL).
- The $8,999 base MSRP exceeds your intended mountain bike budget.
- You ride purely paved gravel paths and do not need 160mm enduro suspension.
Technical Deep Dive: Engineering Analysis
The 2026 Specialized Turbo Levo Gen 4 marks a significant milestone in electric mountain bike engineering. While previous iterations established the benchmark for chassis dynamics, Gen 4 addresses high-altitude climbing power with the newly engineered Specialized 3.1 mid-drive motor. Delivering 101 Nm of peak torque, the motor maintains quiet operation through a revised internal steel-reinforced belt architecture.
Suspension Kinematics and Mullet Wheel Balance
By implementing a dedicated 29-inch front and 27.5-inch rear wheel platform from the ground up, the frame designers shortened chainstay length to 442mm. This compact rear end gives the 22.8 kg carbon bike the playful flickability of an acoustic enduro bike. The FOX 38 Factory fork with GripX2 damper absorbs high-frequency trail chatter, while the Float X2 rear shock resists harsh bottom-outs over square-edge rock gardens.
The Levo Gen 4 blends massive 101 Nm assistance with acoustic bike trail manners better than any full-power e-MTB tested to date.
Battery Thermal Efficiency & Range Extender
The 840Wh downtube battery utilizes latest-generation high-density cylindrical cells that minimize internal resistance under sustained high-amperage draws. Even during 1,500-meter non-stop climbs in Turbo mode, motor temperature remains well below thermal throttling limits. Riders seeking all-day alpine epics can add the 250Wh range extender for a total on-board capacity of 1,090Wh.
Frequently Asked Questions: Specialized Turbo Levo Gen 4
The Specialized Turbo Levo Gen 4 uses the Specialized 3.1 mid-drive motor, delivering 101 Nm of peak torque and 700 watts of peak power with a 4x amplification factor.
The bike features an integrated 840Wh lithium-ion battery in the downtube. It delivers up to 5.5 hours of trail riding time or 45 to 65 miles of range depending on assist level, elevation gain, and rider input. An optional 250Wh range extender increases total capacity to 1,090Wh.
The Turbo Levo Gen 4 features 160mm of front travel and 150mm of rear wheel travel via a FOX 38 Factory GripX2 fork and Float X2 shock. The frame includes six geometry settings with an adjustable head tube angle between 63.5 and 65.5 degrees.
The bike runs a dedicated mixed wheel (Mullet) setup with a 29-inch front wheel for roll-over efficiency and a 27.5-inch rear wheel for cornering agility.
In the FACT 11m carbon Expert/Pro build with the 840Wh battery, the Turbo Levo Gen 4 weighs approximately 22.8 kg (50.2 lbs) in an S3 size frame.
The 2026 Specialized Turbo Levo Gen 4 carries a base MSRP of $8,999 USD for the Pro build, with entry Carbon Comp configurations starting at $7,499 USD and flagship S-Works builds reaching $13,999 USD.
