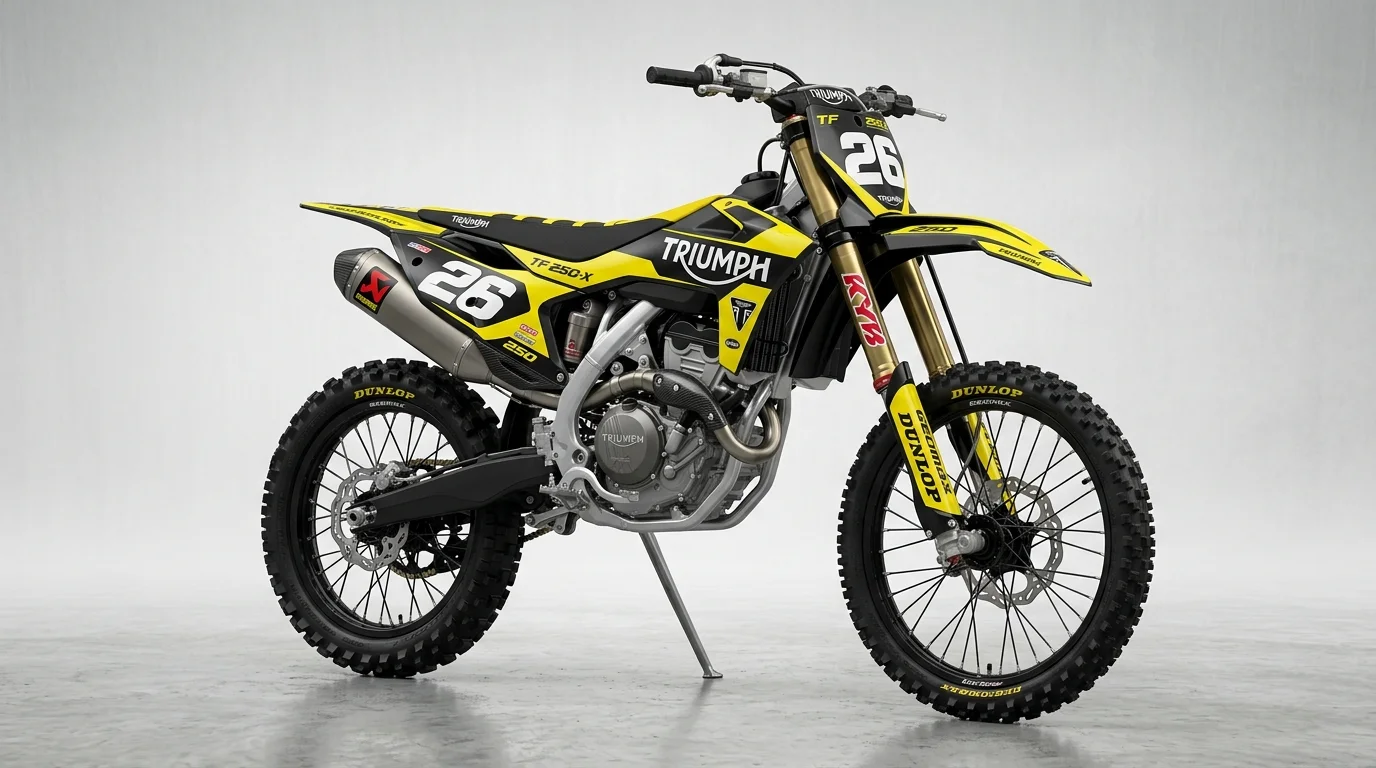

Triumph TF 250-X Review (2026): 47.3 HP Motocross Racer, KYB Suspension Specs
The ground-up competition motocross motorcycle featuring a 47.3 HP 249.9cc DOHC single, aluminum spine chassis, KYB AOS 48mm suspension, Brembo brakes, and a class-leading 102 kg wet weight.
The Strengths
- Class-leading 47.3 HP top-end scream with forged aluminum piston and titanium valves
- Lightweight 102 kg wet curb weight delivers razor-sharp track turn-in through deep berms
- Premium components: KYB 48mm AOS forks, Brembo calipers, Galfer discs, D.I.D DirtStar rims
- Athena EFI electronics package with quickshifter (gears 2-5), launch control, and traction control
- MX Tune Pro smartphone module allows live EFI ignition and fuel mapping adjustments
The Compromises
- Engine characteristics require maintaining high RPMs to exploit the explosive 10,000+ powerband
- Pure closed-course competition race bike (not street legal, no kickstand or headlight)
- High 960mm (37.8-inch) seat height demands experienced racer body control at the starting gate
Estimate monthly race bike payments, trackday maintenance intervals, top-end rebuild budgets, and tire costs.
Ground-Up 249.9cc DOHC 4-Valve Single with 14,000 RPM Ceiling
Forged König aluminum piston, titanium valves, and Athena electronic management.
Gate Launch Sprints, Dyno RPM Output & Track Lap Times
Dyno power delivery curve, starting gate acceleration, and top-end over-rev.
Hand-Welded Aluminum Spine Frame & KYB 48mm AOS Suspension
Closed-cartridge spring forks, 3-way adjustable shock, and Brembo race brakes.
Chassis Specifications
- Hand-welded aluminum spine chassis with hydroformed twin-cradle architecture engineered for torsional flex
- KYB 48mm AOS (Air-Oil Separate) closed-cartridge coil spring forks with 310mm (12.2 inches) of travel
- KYB 3-way adjustable rear monoshock with high/low speed compression damping (305mm travel)
- D.I.D DirtStar 7000-series black aluminum rims with machined alloy hubs and Pirelli Scorpion MX32 tires
- Brembo front dual-piston floating caliper with 260mm Galfer wave disc and Brembo rear 220mm disc
Pro Motocross Ergonomics, Flat Gripper Seat & ProTaper Cockpit
Slim radiator shrouds, ProTaper ACF handlebars, and ODI lock-on grips.
Ergonomics & Rider Interface
- Ultra-slim radiator shrouds allow seamless front-to-rear rider weight shifting into tight corners
- Flat gripper seat profile (960mm height) provides steady grip under hard acceleration out of starting ruts
- ProTaper ACF carbon-core aluminum handlebars reduce vibration and wrist fatigue across braking bumps
- ODI half-waffle lock-on grips come fitted as standard equipment for immediate race readiness
Complete 30-Point Technical Specification Matrix
Comprehensive factory engineering data for the 2026 Triumph TF 250-X.
1. Engine, Valvetrain & Drivetrain
Engine & Combustion
Fuel System & Transmission
2. Aluminum Chassis, KYB Suspension, Brakes & Dimensions
Frame & Suspension
Brakes & Dimensions
3. Competition Electronics & Commercial Pricing
Racer Electronics
Commercial & Pricing
Is the 2026 Triumph TF 250-X the New King of 250cc Motocross?
Buy If You Want
- Class-leading 47.3 HP top-end horsepower with a 14,000 RPM rev ceiling
- Featherweight 102 kg wet weight providing razor-sharp track maneuverability
- Factory-grade KYB 48mm AOS closed-cartridge forks and Brembo race brakes
- Comprehensive Athena electronics with quickshifter, launch control, and app tuning
Skip If You Need
- A road-legal dual-sport bike with headlights, turn signals, and a kickstand
- A low-revving, tractor-like trail plonker for casual slow-speed trail exploring
Triumph TF 250-X (2026): 47.3 HP Single, KYB Suspension & Motocross Review
Triumph's entry into top-tier motocross competition arrived after years of secretive development with racing legends Ricky Carmichael and Ivan Cervantes. The 2026 Triumph TF 250-X is an uncompromising, purpose-built race machine. Compare street-legal dual-sports in our Suzuki DR-Z4S Review and examine rally machinery in our Kove 450 Rally Review.
1. 249.9cc DOHC Competition Single: 47.3 HP & 14,000 RPM Redline
Engineered from a clean sheet in Hinckley, the TF 250-X power plant features a forged König aluminum piston, titanium intake and exhaust valves, and Diamond-Like Carbon (DLC) coated finger followers. Generating 47.3 HP at 13,500 RPM and revving cleanly to 14,000 RPM, the motor pulls relentlessly down long starting straights without flattening out before track triples.
2. Athena Engine Electronics: Quickshifter & Launch Control
The powertrain is managed by an Athena Engine Control Unit linked to handlebar-mounted map switches. Riders can toggle between aggressive and smooth power delivery curves, activate multi-stage launch control for holeshot precision, or engage traction control. An electronic upshift quickshifter enables full-throttle gear changes from 2nd through 5th gear.
3. Hand-Welded Aluminum Spine Chassis & KYB AOS Closed-Cartridge Forks
Chassis dynamics rely on a hand-welded aluminum spine frame designed with specific longitudinal rigidity and torsional compliance. The front end is supported by 48mm KYB AOS (Air-Oil Separate) closed-cartridge coil spring forks providing 310mm of plush travel, while the rear features a 3-way adjustable KYB piggyback shock with 305mm travel.
🌿 Related Models & Comparison Guides
Frequently Asked Questions
The 2026 Triumph TF 250-X carries an official base MSRP of $9,995 USD in North America (£9,795 in the UK).
The 249.9cc DOHC single produces 47.3 HP at 13,500 RPM and 28.6 Nm of torque at 9,000 RPM, with a 14,000 RPM redline.
The complete race-ready wet weight is just 102 kg (225 lbs).
It features KYB 48mm AOS closed-cartridge front forks (310mm travel) and a 3-way adjustable KYB piggyback rear shock (305mm travel).
Yes. Athena electronic fuel injection, launch control, traction control, and a clutchless upshift quickshifter (gears 2-5) come standard.
The TF 250-X delivers class-leading 47.3 HP peak power, premium Brembo braking hydraulics, and a featherweight 102 kg wet weight.
