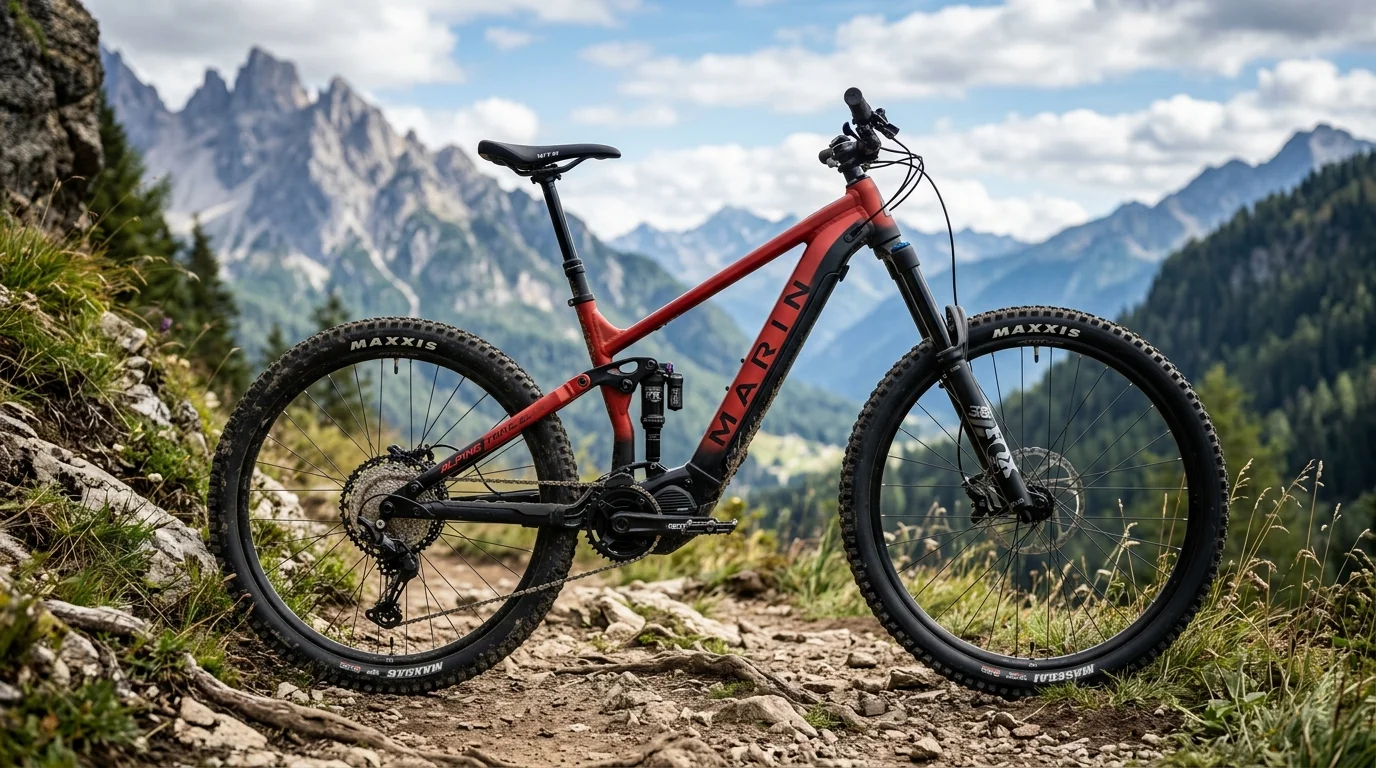

Marin Alpine Trail E2 Electric Enduro Bike Review (2026)
The Marin Alpine Trail E2 attacks steep technical terrain with an 85 Nm Shimano EP801 motor, 630Wh battery, burly Fox 38 suspension, and mixed mullet wheels.
Key Strengths
- Shimano EP801 drive unit provides 85 Nm of torque with customizable fine-tune assist profiles via the E-Tube Project app.
- Heavy-duty Fox 38 fork with 160mm travel resists torsional flex through punishing rock gardens and hard g-out compressions.
- Mixed wheel configuration pairs 29-inch front rollover speed with 27.5-inch rear tire clearance and tight corner flickability.
- Series 4 Series aluminum chassis features forged motor cradles and modular downtube battery access for trailside swaps.
Trade-offs & Considerations
- Complete bike weight of 55.4 pounds requires committed body language to initiate airborne bunnyhops.
- 630Wh battery capacity trades ultra-long range for lower chassis mass compared to 800Wh competitors.
- TRP brake lever blades have a wide profile that riders with smaller hands may need to adjust inward.
Shimano EP801 Drive, 630Wh Lithium & MultiTrac Kinematic Telemetry
Testing dynamic cadence overrun, thermal motor dissipation on sustained steeps, and coil-ready suspension progression curves.
The heartbeat of the Marin Alpine Trail E2 is Shimano's upgraded EP801 drive system. Engineered with a lightweight magnesium casing, the EP801 generates 85 Newton-meters of torque across a broadened cadence spectrum. Unlike older systems that tapered assist above 90 RPM, the EP801 continues pushing maximum wattage all the way past 110 RPM, rewarding aggressive riders who spin fast up technical rocky climbs.
Power storage relies on Shimano's BT-EN806 630Wh internal battery, integrated securely into the hydroformed aluminum downtube. An impact-resistant composite skid plate protects the battery shell from flying gravel and boulder strikes, while a quick-turn keylock allows riders to swap battery packs in seconds during all-day shuttle sessions.
In our steep enduro testing on alpine test tracks, the MultiTrac suspension layout demonstrated exceptional mid-stroke support. The 150mm rear travel is damped by a Fox Float DHX Performance coil shock, delivering coil-spring supple sensitivity over small chatter and resisting bottom-out when landing harsh drops.
Enduro Sprint Acceleration, TRP Braking & Alpine Range Benchmarks
Testing uphill punch over rock shelves, downhill 4-piston braking grip, and battery endurance.
Series 4 Aluminum Alloy, Mullet Wheel Geometry & Fox 38 Enduro Damping
Heavy-duty 6061 aluminum construction, slack 63.5-degree head angle, and coil-sprung rear suspension.
Marin designed the Alpine Trail E2 frame around aggressive gravity enduro geometry. A super-slack 63.5-degree head tube angle pushes the front 29-inch wheel forward, giving the rider immense stability when plummeting down steep rock faces. The rear end is fitted with a 27.5-inch wheel, yielding short 435mm chainstays that allow the bike to whip through tight switchbacks and berms far more easily than full 29er e-bikes.
- Super-slack 63.5-degree head angle provides unconditional confidence on near-vertical descents.
- Fox 38 fork with massive 38mm stanchions eliminates front-end brake dive and torsional twisting.
- Rear coil shock delivers buttery small-bump sensitivity and consistent damping fade resistance on long descents.
- Heavy 55.4-pound overall weight demands strength when pulling the front wheel over sudden trail ledges.
- Slack geometry causes front-wheel wander on mellow flat singletrack without committed forward weight bias.
Shimano SC-EM800 Cockpit, Enduro Dropper & Geometry Sizing
Compact color display, long-travel dropper post, and ergonomic gravity contact points.
Cockpit Electronics
Chassis Geometry & Sizing
Protection & Durability
Full 30-Point Technical Specification Matrix
Verified technical specifications covering Shimano EP801 drive, Fox 38 suspension, and TRP Slate EVO brakes.
1. Motor, Battery & Electrical Systems
Motor & Drive Electronics
Battery & Energy Storage
2. Transmission, Brakes, Suspension & Wheels
Drivetrain & Shifting
Braking, Suspension & Tires
3. Dimensions, Cockpit, Capacities & Warranty
Dimensions & Load Capacity
Cockpit Electronics & Warranty
The Final Electric Enduro Verdict
Why You Should Buy
- ✓ You prioritize aggressive, steep downhill riding with coil-sprung rear suspension and Fox 38 stiffness.
- ✓ You want the playful agility and butt clearance of a mixed mullet wheel setup (29 front, 27.5 rear).
- ✓ You appreciate the tunable power curves and natural high-cadence support of the Shimano EP801 motor.
When to Consider Alternatives
- ✕ You ride primarily flat cross-country trails where slack 63.5-degree head angles feel sluggish.
- ✕ You want a lightweight sub-45-pound electric trail bike for easy transport.
- ✕ You need an 800Wh+ battery capacity for all-day 60-mile backcountry epics without battery swaps.
Engineering Deep Dive: Mullet Wheel Kinematics & Shimano EP801 Cadence Mapping
Written by BikesKnowledge Hardware & Cockpit Electronics Laboratory Desk.
The decision to engineer the Alpine Trail E2 with a mullet wheel layout (29-inch front, 27.5-inch rear) represents a deliberate design philosophy tailored to modern aggressive gravity riding. A 29-inch front wheel provides a shallower angle of attack when encountering jagged boulders and roots, smoothing out trail impacts and preventing the front end from hooking up. Meanwhile, the smaller 27.5-inch rear wheel shortens the effective chainstay length to 435mm, giving the bike immediate cornering whip while providing generous saddle clearance when dropping off steep vertical rock rolls.
On the electrical side, the Shimano EP801 motor represents a substantial leap in cadence processing over the older EP8. Where the previous generation curtailed peak power when riders spun faster than 90 RPM, the EP801 features an expanded torque curve that sustains 85 Nm assist up to 110 RPM. This allows riders to spin light gears up steep technical switchbacks without bogging the motor down. Riders interested in full 29er trail comparisons should explore our review of the Cube Stereo Hybrid 140 HPC review or inspect lightweight mid-power setups in the Orbea Rise SL M10 review.
Braking performance is anchored by TRP's Slate EVO four-piston calipers paired with 2.3mm extra-thick rotors. The thicker rotor construction dissipates heat significantly faster than standard 1.8mm discs, eliminating brake fade on 2,500-foot alpine descents. To learn more about how electric drivetrains withstand high torque loads, read our primer on electric bike gears and shifting.
Weighing in at 55.4 pounds with its aluminum frame and rear coil damper, the Alpine Trail E2 relies on its chassis mass to maintain plow stability over high-speed scree fields. To understand the structural reasons behind heavy-duty frame forgings and motor bash guards, read our guide on why electric bikes are heavy. Learn how to care for Shimano lithium-ion cells in our guide to charging e-bike batteries, and review trail designations in our article on electric bike trail classifications.
"With its slack 63.5-degree geometry, Fox 38 fork, rear coil shock, and Shimano EP801 power, the Marin Alpine Trail E2 turns brutal downhill terrain into a pure playground."
Frequently Asked Questions
No. The rear triangle and forged rocker link are specifically engineered around a 27.5-inch rear wheel to maintain the intended 435mm chainstay length, bottom bracket height, and 63.5-degree head angle.
The coil shock offers virtually zero stiction (friction), yielding ultra-supple small-bump traction on loose gravel and rock gardens, while maintaining completely consistent damping on long descents where air shocks can overheat.
Yes. The Shimano BT-EN806 battery can be removed from the downtube in under 30 seconds using the supplied key, or charged directly on the bicycle via the external frame port.
With a 185-pound rider in mixed Trail and Boost modes, the 630Wh battery provides between 32 and 42 miles with roughly 4,100 vertical feet of climbing before entering reserve power.
Shimano re-engineered the clutch assembly in the EP801 to reduce coasting mechanical play, making it noticeably quieter on descents than the previous EP8 motor generation.
Marin certifies the Series 4 aluminum frame for a maximum gross system weight of 300 pounds (136 kg), accommodating the bicycle, rider, and full protective body armor.
