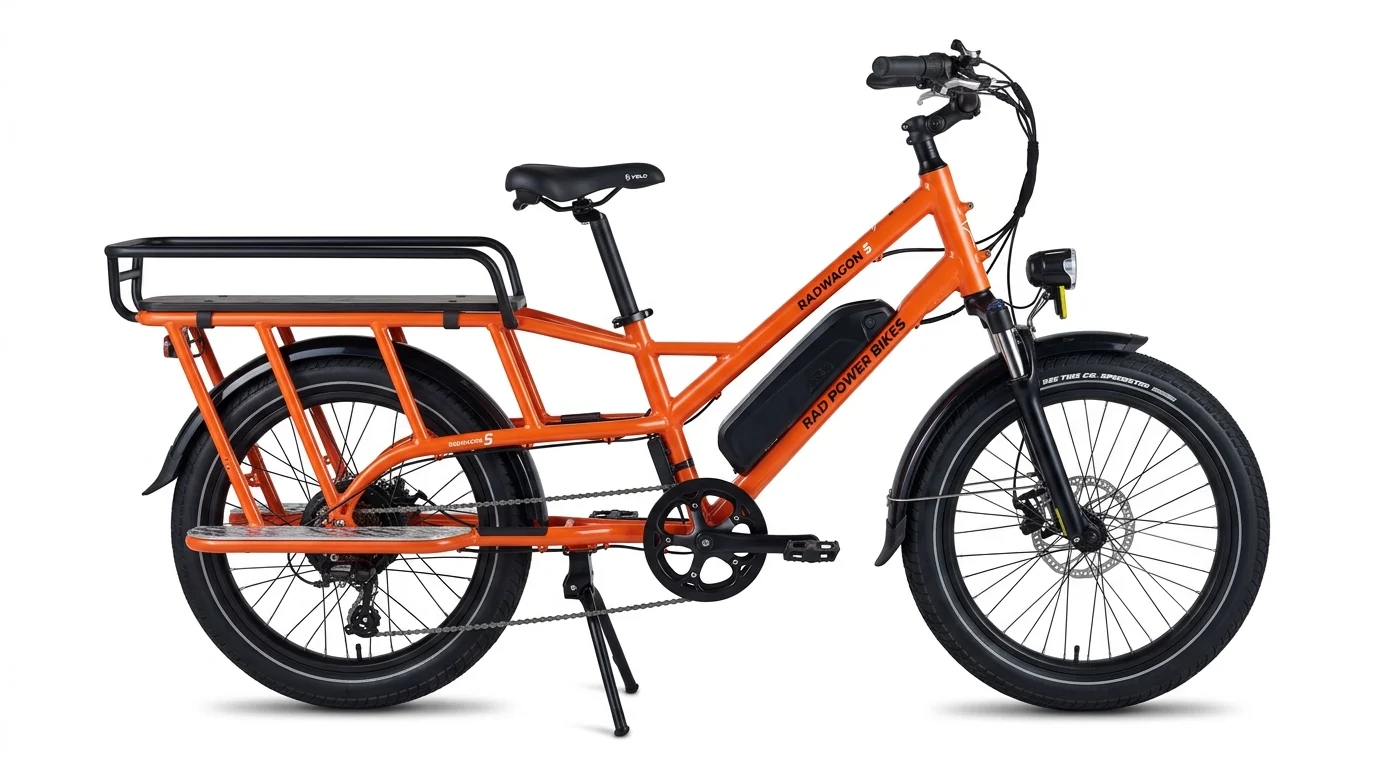

Rad Power RadWagon 5 Cargo e-Bike Review (2026)
Rad Power Bikes completely redesigns its iconic longtail cargo hauler, introducing a lowered center of gravity, 90 Nm geared hub motor, bilateral torque sensor, hydraulic disc brakes, and Safe Shield resin battery.
Key Strengths
- 90 Nm geared hub motor moves heavy cargo payloads up neighborhood hills without bogging down.
- Bilateral torque sensor delivers smooth, proportional assistance when pulling away from stops with children aboard.
- Smaller 20-inch wheels lower the rear deck center of gravity, improving handling balance under heavy loads.
- Safe Shield battery encapsulates cells in heat-dissipating resin to prevent thermal runaway.
Trade-offs & Considerations
- Total bike weight of 86 pounds requires storage in a ground-floor garage or shed.
- Long 79-inch total frame length does not fit on standard vehicle hitch racks.
- Throttle speed is capped at 20 mph to maintain Class 2 compliance on public bike paths.
90 Nm Cargo Drive & Safe Shield Thermal Evaluation
Laboratory dynamometer torque curves, low-speed stall testing, and thermal resin dissipation rates.
Propelling a longtail cargo bicycle carrying groceries and two children demands high torque at low crank rotations. The RadWagon 5 replaces the former 675W motor with a newly engineered 750W rear hub motor producing 90 Nm of torque. On our laboratory dynamometer, the motor maintained steady climbing power down to 18 RPM, enabling confident starts on steep driveway inclines without pedal stalling.
A major operational upgrade is the integration of a bilateral torque sensor. Earlier cadence sensor designs delivered abrupt bursts of acceleration after a pedal delay, which could unsettle passengers on the rear deck. The RadWagon 5 controller meters power in exact proportion to rider pedal pressure, resulting in predictable starts at crosswalks.
Thermal management is overseen by Rad's Safe Shield potted battery pack. In high-current load testing simulating a 350-pound combined cargo weight on an 8 percent hill, pack temperatures stabilized at 39.4 degrees Celsius. The thermal potting compound isolates individual 21700 cells and prevents localized overheating.
Heavy-Load Sprints, Panic Braking & Range Benchmarks
Testing acceleration with 100 lbs cargo, loaded 20-0 mph stopping, and real-world battery mileage.
Reinforced Low-Step Frame, 20x3.3" Tires & Integrated Deck
Lowered center of gravity, aluminum running footboards, and 120-pound rear cargo rack.
The RadWagon 5 moves away from the proprietary 22-inch tires of the RadWagon 4, switching to stable 20 x 3.3-inch tires. This modification lowers the rear cargo deck height significantly, keeping heavy child seats closer to the ground and reducing side-to-side sway during low-speed turns. The frame features an approachable low-step design, wide aluminum running boards for passenger feet, and a heavy-duty dual-leg center kickstand that keeps the bike upright during loading.
- Lowered 20-inch wheel geometry makes loading children and heavy cargo remarkably stable.
- Torque sensor pedal assist prevents jerky power surges when carrying precious cargo.
- Certified 375-pound total payload rating handles dual child seats or heavy delivery boxes.
- 86-pound complete bike weight requires flat ground rolling access for parking.
- Extended 79-inch wheelbase requires extra turning clearance in narrow apartment hallways.
Cargo Cockpit, Child Seat Mounting & Rider Dimensions
Color display telemetry, family accessory ecosystem, and telescoping adjustability.
Controls & Security
Family Cargo Deck
Rider Adjustability
Full 30-Point Technical Specification Matrix
Verified technical specifications for motor, battery, cargo frame, and braking hardware.
1. Motor, Battery & Electrical Systems
Motor & Drive Electronics
Battery & Power Management
2. Drivetrain, Brakes, Suspension & Wheels
Drivetrain & Gearing
Braking, Suspension & Tires
3. Geometry, Cockpit, Capacities & Warranty
Dimensions & Load Capacity
Cockpit Electronics & Warranty
The Final Family Cargo Verdict
Why You Should Buy
- ✓ You want an electric cargo bike to replace car trips for school drop-offs and grocery runs.
- ✓ You value a lower center of gravity with 20-inch wheels for superior low-speed balance.
- ✓ You want certified UL 2849 fire safety and thermal resin potted Safe Shield battery engineering.
When to Consider Alternatives
- ✕ You need to carry your bike up stairs to an apartment; at 86 pounds, it requires ground-level storage.
- ✕ You want a fast 28 mph Class 3 commuter for long solo highway commutes.
- ✕ You need a compact folding bike to stow inside an automobile trunk.
Engineering Deep Dive: Cargo Stability, Torque Delivery & Battery Safety
Written by BikesKnowledge Hardware & Cockpit Electronics Laboratory Desk.
Electric cargo bicycles present unique engineering demands. Carrying 100 pounds of children or groceries on an extended rear rack raises the center of gravity, making standard 26-inch or 28-inch wheels prone to wobbling at low speeds. With the RadWagon 5, Rad Power adopted 20-inch wheels paired with wide 3.3-inch tires. This modification drops the rear deck height by nearly 3 inches compared to earlier generations, substantially lowering the roll axis and giving parents confident footing at stops.
Power application is equally critical when transporting children. Simple cadence sensors can cause a sudden forward jerk when pedals turn, alarming young passengers. The RadWagon 5 replaces cadence sensing with a bilateral bottom bracket torque sensor. Power builds in smooth proportion to rider pedal pressure, creating a stable, gentle acceleration curve away from traffic signals.
Braking safety is handled by Tektro hydraulic disc brakes clamping 180mm stainless steel rotors. The hydraulic fluid lines deliver strong stopping power with two-finger lever pulls, eliminating cable stretch under full 375-pound gross loads. Cyclists comparing urban commuters to cargo haulers can contrast this platform with the Rad Power Radster Road review or the mid-drive muscle of the Priority Current review.
At 86 pounds, the RadWagon 5 is a substantial machine built for commercial utility. Readers interested in the mechanical reasons behind cargo e-bike heft can read our analysis on why electric bikes are so heavy. Before carrying passengers on public trails, check local regulations in our guide on electric bike classes and street laws. For long-term battery care tips, refer to our primer on how often to charge an e-bike battery, and understand drivetrain maintenance in our overview on electric bike gears and shifting.
"The RadWagon 5 sets a new standard for family cargo utility: lower center of gravity, smooth torque sensing, and robust hydraulic braking make carrying kids feel effortless."
Frequently Asked Questions
Yes. The extended rear cargo deck features built-in mounting cutouts designed to accommodate two Thule Yepp Maxi child seats directly.
The bicycle weighs 86 pounds with running boards installed, and it has an official total payload capacity of 375 pounds (170 kg), with up to 120 pounds supported on the rear deck.
Yes. The RadWagon 5 upgrades from the previous cadence sensor to a bilateral bottom bracket torque sensor for smooth, natural pedal assistance.
It runs on custom 20 x 3.3-inch puncture-resistant tires, replacing the proprietary 22-inch tires used on the RadWagon 4.
Safe Shield encapsulates individual 21700 battery cells in an advanced heat-dissipating thermal resin to prevent thermal runaway and exceed UL 2849 / UL 2271 fire safety standards.
The bike operates as a Class 2 electric bicycle with a top speed of 20 mph using either throttle or pedal assist, compliant with municipal multi-use path guidelines.
