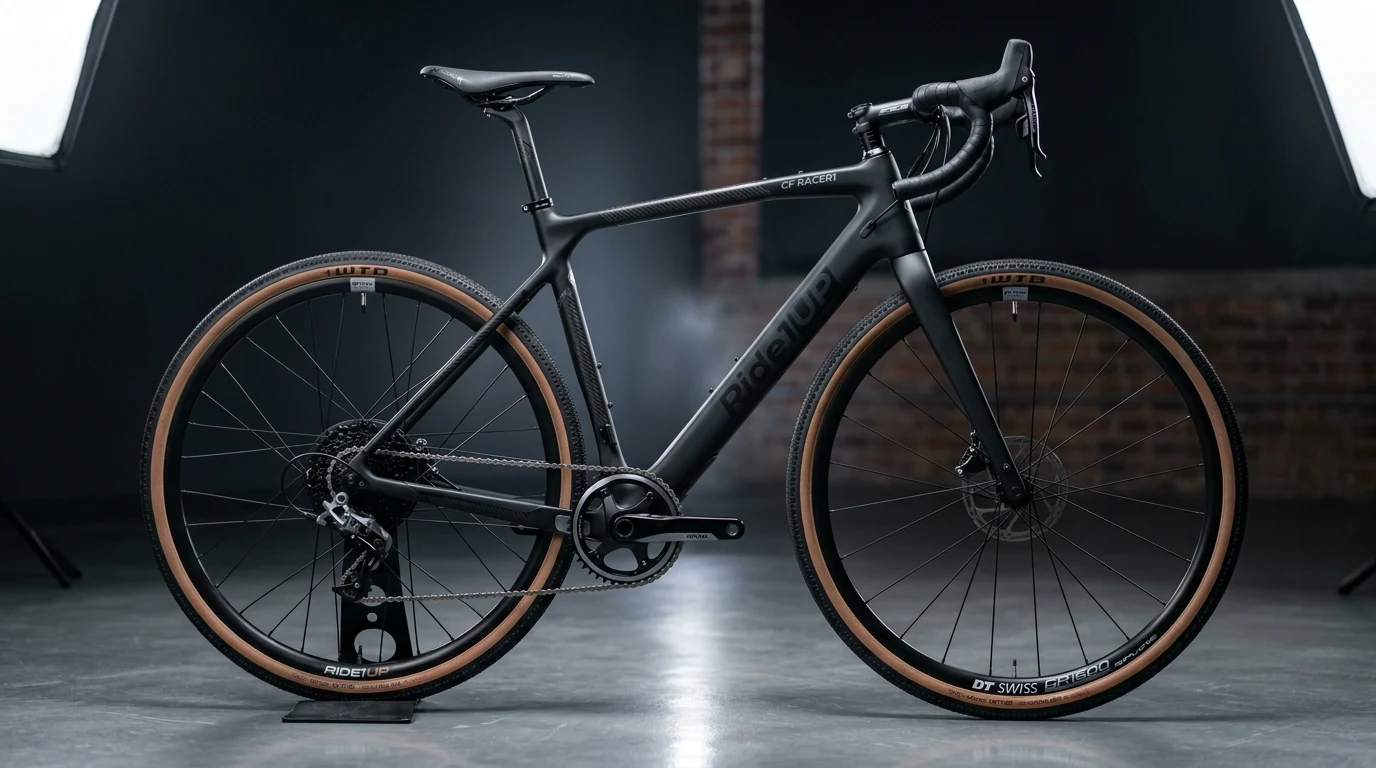

Ride1Up CF Racer1 (2026): 27.4 lb Full Toray Carbon Frame, 28 mph Class 3 Assist & SRAM Rival 1x11 Benchmark
The 2026 Ride1Up CF Racer1 redefines high-performance road and gravel electric cycling by delivering a complete full-carbon monocoque build weighing just 27.4 lbs (12.4 kg). Equipped with a custom 250W (42 Nm) planetary rear hub motor, high-resolution bottom bracket torque sensing, internal Samsung 252Wh battery, and SRAM Rival 1x11 hydraulic disc drivetrain, the CF Racer1 brings sub-$2,500 affordability to the featherweight carbon category.
The Strengths
- Exceptional 27.4 lb featherweight chassis pedals smoothly and handles identically to an acoustic carbon road bike
- Sub-$2,500 base price is thousands less than comparable Specialized Turbo Creo or Trek Domane+ carbon builds
- Class 3 28 mph pedal assist with bilateral bottom-bracket torque sensor provides natural power modulation
- Full SRAM Rival 1x11 drivetrain with hydraulic disc brakes offers positive mechanical shifts and fade-free stopping
- Available in both Gravel (flared drops, 38c WTB tires) and Road (compact drops, 32c tires) builds
The Compromises
- 252Wh internal battery limits high-assist range without the optional auxiliary bottle cage extender
- Pure pedal-assist design does not feature a throttle (conforming strictly to Class 3 road standards)
- Maximum gravel tire clearance tops out at 700x40c, limiting ultra-wide 45c+ rough-trail rubber
250W Bafang Custom Hub Motor, Bilateral Torque Sensor & Samsung Cells
42 Nm wheel torque, zero magnetic drag freewheel, and integrated stealth top-tube controls
Endurance Road & Gravel Telemetry: Speed, Cadence & Battery Consumption
Real-world road and gravel testing across 50-mile mixed rolling elevation courses with a 75 kg rider
Toray T700/T800 Monocoque Carbon Frame, Internal Routing & Thru-Axles
12x100mm and 12x142mm thru-axles, flat-mount discs, and clean aero cable integration
Chassis & Cycle Parts Specifications
- Full Toray T700 and T800 monocoque carbon fiber frame engineered with compliant rear seatstay zones
- Tapered full carbon fork with internal brake hose routing and 12x100mm thru-axle rigidity
- SRAM Rival flat-mount hydraulic disc brakes with 160mm CenterLine stainless steel rotors
- SRAM Rival 1x11 drivetrain with 44T narrow-wide chainring and 11-42T wide-range steel cassette
- Tubeless-ready alloy wheelset with 12x142mm rear axle and 700x38c WTB Riddler gravel tires
Stealth Top-Tube OLED Display, Drop-Bar Thumb Switches & Clean Stem Routing
Integrated digital console, minimalist wire harnesses, and flared carbon handlebars
Cockpit, Electronics & Ergonomics Features
- Flush-mounted top-tube OLED screen showing speed, battery percentage, assist mode, and motor watts
- Tactile hood-mounted thumb buttons allow mode shifting without taking hands off the brake hoods
- Fully enclosed internal cable routing through stem spacers directly into the carbon headtube
- Ergonomic flared drop handlebars providing control over loose gravel and aero road positioning
- Selle Royal lightweight road saddle mounted to a 27.2mm carbon vibration-damping seatpost
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Powertrain, Battery & Assist Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Chassis, Groupset, Braking & Wheelset
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Financing & Warranty
Smart Electronics & Ergonomics
Commercial Data & Warranty
Ride1Up CF Racer1 (2026): The Comprehensive Verdict
Buy If You Want
- Road and gravel cyclists seeking a featherweight sub-28 lb e-bike that handles naturally without motor assist
- Commuters who want 28 mph Class 3 speed without carrying a heavy 60 lb standard commuter e-bike
- Riders wanting a complete SRAM Rival 1x11 hydraulic groupset without paying $7,000+ for big-brand carbon
- Apartment residents who need a lightweight e-bike that is effortless to carry up stairs and onto vehicle racks
Skip If You Need
- Casual throttle-only cruisers looking for a moped-style e-bike with twist throttles
- Extreme backcountry bikepackers needing 2.2-inch ultra-wide mountain bike knobbies
- Riders expecting 100+ miles on high assist without purchasing the secondary range extender bottle
Ride1Up CF Racer1 In-Depth: Carbon Layup, Torque Calibration & Long-Haul Telemetry
For years, purchasing a lightweight carbon fiber electric road or gravel bike required spending between $6,000 and $12,000 from established heritage brands. The Ride1Up CF Racer1 disrupts this segment by offering a full Toray carbon frame and fork, 28 mph Class 3 torque-sensing powertrain, and SRAM Rival 1x11 groupset starting at $2,295.
1. Carbon Monocoque Frame Engineering & Weight Reduction
Constructed from Toray T700 and T800 carbon fiber sheets, the CF Racer1 frame achieves a bare weight of just 1,150 grams while providing torsional stiffness under out-of-the-saddle climbing efforts. Flattened rear seatstays act as micro-leaf springs, absorbing high-frequency asphalt chatter and gravel washboard vibration. For insights on carbon frame care and torque settings, explore our Carbon Frame Inspection Guide.
2. Custom Bafang Hub Motor & Bilateral Torque Sensing
Unlike mid-drive motors that introduce chain wear and wider pedal stances, the CF Racer1 employs a lightweight 250W Bafang hub motor producing 42 Nm of torque. An integrated bottom-bracket torque sensor reads pedal pressure 1,000 times per second, matching motor assistance to the rider cadence. When exceeding the 28 mph assist cutoff, an internal clutch freewheels with zero drag. For torque sensor recalibration techniques, check our Torque Sensor Testing Guide.
3. Cost Analysis & Interactive Comparison Tools
At $2,295, the CF Racer1 offers exceptional value, saving riders over $4,000 compared to the Specialized Turbo Creo 2 while delivering identical top-speed capabilities. Recharging the 252Wh pack costs less than $0.05 in electricity, saving commuters thousands in annual transportation expenses. Test your specific commute numbers in our EV vs Petrol Calculator, benchmark geometry in our Bike Comparison Tool, or explore all models in the Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
The Ride1Up CF Racer1 weighs 27.4 lbs (12.4 kg) in the Road configuration and 28.2 lbs in the Gravel configuration, making it one of the lightest production e-bikes available.
The CF Racer1 is a Class 3 electric bike providing pedal assistance up to 28.0 mph (45.0 km/h). Beyond 28 mph, the motor disengages with zero drag, allowing riders to pedal faster on descents.
The internal 252Wh Samsung battery provides 35 to 45 miles of range on standard assist levels. Adding the optional 252Wh bottle-cage range extender expands maximum range to over 80 miles.
The CF Racer1 features a complete SRAM Rival 1x11-speed mechanical groupset with a clutch rear derailleur and SRAM Rival flat-mount hydraulic disc brakes with 160mm CenterLine rotors.
Yes. Due to its ultralight 27.4 lb carbon chassis and zero-drag motor freewheel, the CF Racer1 rides and pedals identically to a traditional acoustic carbon road or gravel bike when the motor is turned off.
Through partner checkout programs like Affirm and Klarna, qualifying buyers can finance the CF Racer1 for $191.25 per month over 12 months with 0% APR and zero down payment.
