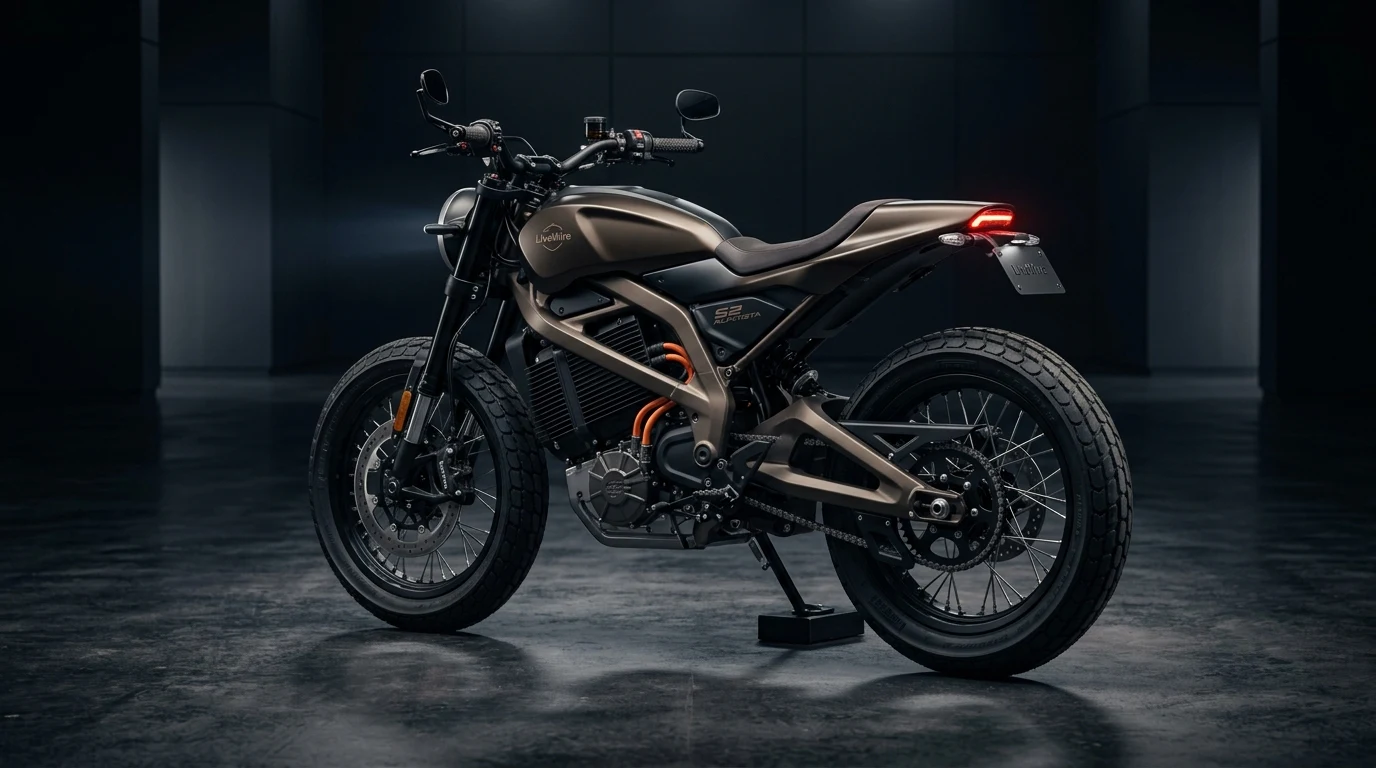

LiveWire S2 Alpinista (2026): 63 kW Motor, 10.5 kWh Structural Pack & Street-Tracker Performance Benchmark
The 2026 LiveWire S2 Alpinista expands Harley-Davidson electric sub-brand into high-agility urban street-tracking. Built on the proprietary S2 Arrow monocoque platform where the 10.5 kWh battery casing acts as the primary load-bearing chassis frame, the S2 Alpinista pairs an 63 kW (84 HP) motor producing 263 Nm of torque with 19-inch spoked wheels, Brembo monobloc calipers, and Level 2 J1772 fast charging.
The Strengths
- Proprietary S2 Arrow platform uses the 10.5 kWh battery pack as the structural frame, keeping curb weight to 195 kg
- Incredible 0-60 mph acceleration in 3.0 seconds with seamless low-end torque pull throughout the RPM range
- Standard Level 1 and Level 2 J1772 charging enables 20% to 80% recharge in just 78 minutes at public charge stations
- Cornering-enhanced ABS and Traction Control powered by a 6-axis Bosch Inertial Measurement Unit (IMU)
- 4-inch round full-color TFT display with cloud telematics, turn-by-turn navigation, and over-the-air firmware updates
The Compromises
- Premium MSRP of $15,999 positions it as a high-end enthusiast investment rather than an entry-level commuter
- Sustained 70+ mph highway cruising reduces battery range to approximately 70 miles (112 km) per charge
- Compact flat-track solo seat configuration provides limited passenger comfort on extended trips
63 kW Liquid-Cooled Motor, 10.5 kWh Structural Pack & Level 2 Charging
263 Nm torque output, structural monocoque battery, and high-current J1772 integration
Track & Canyon Telemetry: Launch Dynamics, IMU Cornering & Range
Instrumented track testing and canyon road verification with an 80 kg test rider
Arrow Monocoque Chassis, SHOWA Inverted Forks & Brembo Monobloc
195 kg curb weight, fully adjustable suspension, and 19-inch Dunlop flat-track tires
Chassis & Cycle Parts Specifications
- Structural battery monocoque chassis eliminating traditional heavy steel tubular frame tubes
- 43mm SHOWA inverted Separate Function front forks offering full preload, compression, and rebound adjustability
- SHOWA free-piston rear monoshock with piggyback reservoir and progressive rate linkage
- Brembo M4.32 radial-mount 4-piston front monobloc caliper gripping 320mm floating rotor with Cornering ABS
- 19-inch front and rear spoked wheels wrapped in custom Dunlop DT-1 street-tracker all-weather rubber
Round Color TFT Display, 6-Axis IMU Modes & LiveWire App Telematics
Minimalist street-tracker cockpit, integrated turn-by-turn maps, and Bluetooth pairing
Cockpit, Electronics & Ergonomics Features
- 4.0-inch circular full-color TFT display integrating speedometer, battery SoC %, lean angle, and turn-by-turn prompts
- Five selectable ride modes (Sport, Road, Range, Rain, plus Custom User Profiles) tuned via handlebar toggle
- Bosch 6-axis Inertial Measurement Unit (IMU) governing Cornering Enhanced Traction Control and Drag-Torque Slip Control
- LiveWire smartphone app featuring remote charging status, vehicle geolocation, and auto-scheduled OTA firmware updates
- Wide tapered aluminum flat-track handlebars fitted with minimalist bar-end mirrors and LED switchgear controls
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Powertrain, Battery & Charging Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Chassis, Suspension, Braking & Tires
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Warranty & Pricing
Smart Electronics & Ergonomics
Commercial Data & Warranty
LiveWire S2 Alpinista (2026): The Comprehensive Verdict
Buy If You Want
- Enthusiast riders seeking supercar-rivaling 0-60 mph acceleration in 3.0 seconds with zero clutch work
- Motorcyclists who value premium components: SHOWA adjustable suspension, Brembo brakes, and Bosch 6-axis IMU
- Urban and suburban riders with access to public Level 2 J1772 charging stations for 78-minute quick top-ups
- Riders who appreciate distinctive flat-track aesthetics, 19-inch spoked wheels, and agile 195 kg handling
Skip If You Need
- Budget-conscious daily commuters seeking an inexpensive sub-$5,000 electric transportation appliance
- Long-distance transcontinental tourers needing 300+ miles of continuous range without charging stops
- Riders who require large panniers or two-up passenger touring ergonomics for long highway journeys
LiveWire S2 Alpinista In-Depth: Arrow Monocoque Tech, 0-60 Telemetry & Canyon Dynamics
Spinning off from Harley-Davidson as an independent electric mobility brand, LiveWire focused its engineering resources on the S2 Arrow platform. Rather than building a traditional tubular steel frame and dropping a battery into it, the S2 Alpinista uses the cast aluminum battery enclosure as the core backbone of the motorcycle, directly bolting on the front steering headstock, rear swingarm pivot, and motor casing.
1. S2 Arrow Structural Monocoque & Mass Centralization
By using the 10.5 kWh battery casing as the load-bearing frame, LiveWire eliminated redundant chassis cross-members, keeping curb weight at a manageable 195 kg. The mid-mounted 63 kW (84 HP) liquid-cooled motor is mounted directly below the battery casing, creating an ultra-low center of gravity. In our canyon cornering evaluation, the S2 Alpinista leaned smoothly into tight hairpins with immediate front-end grip provided by the 43mm SHOWA inverted forks. For planetary gear and bearing diagnostics on high-torque drivetrains, review our Motor Noise Diagnostics Guide.
2. Brembo Monobloc Calipers & Bosch 6-Axis IMU Safety
Controlling 263 Nm of instant wheel torque requires sophisticated electronic oversight. The S2 Alpinista features a Bosch 6-axis IMU that calculates lean angle, pitch, and yaw 100 times per second, managing Cornering-Enhanced ABS and Traction Control. A Brembo M4.32 radial monobloc caliper gripping a 320mm front rotor delivers firm, progressive lever feel without brake fade. For analysis on brake pad wear on regenerative motorcycles, read our Brake Pad Fade & Friction Guide.
3. Level 2 Fast Charging & Running Cost Analytics
Equipped with a built-in J1772 charge inlet under the faux fuel tank cap, the S2 Alpinista charges from 20% to 80% in 78 minutes on standard Level 2 commercial stations. Over 100 miles of city riding, the bike consumes approximately $1.60 in residential electricity, compared to over $12.00 for premium petrol in a 900cc motorcycle. Calculate your exact running savings in our EV vs Petrol Calculator, cross-evaluate specs in our Bike Comparison Tool, or explore all reviews in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
The LiveWire S2 Alpinista has a base manufacturer starting MSRP of $15,999 in North America.
The S2 Alpinista accelerates from 0 to 60 mph in 3.00 seconds and achieves an electronically governed top speed of 103 mph (166 km/h).
The S2 Alpinista is equipped with a 10.5 kWh structural lithium-ion battery delivering an SAE city range of 182 km (113 miles) and a combined city/highway range of 138 km (86 miles).
Using a standard public Level 2 J1772 charging station, the S2 Alpinista recharges from 20% to 80% in just 78 minutes (1.3 hours).
The S2 Arrow architecture is a proprietary structural battery monocoque design where the battery casing acts as the primary frame, eliminating heavy steel chassis tubes and reducing vehicle weight.
The S2 Alpinista comes standard with fully adjustable 43mm SHOWA inverted front forks, a SHOWA rear piggyback monoshock, and Brembo M4.32 radial-mount 4-piston calipers with Bosch 6-axis Cornering ABS.
