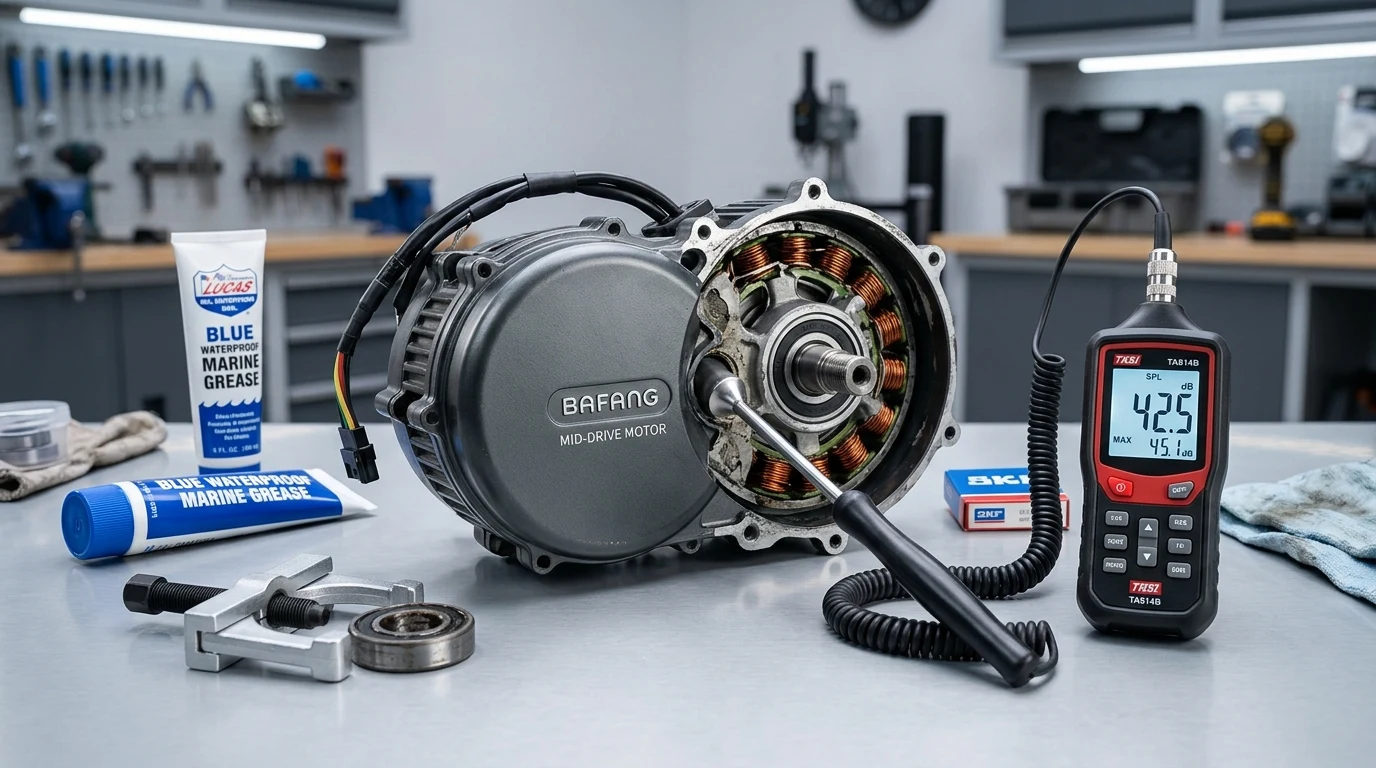

E-Bike Motor Noise & Bearing Diagnostics: Frequency Spectrum Analysis & DIY Overhaul Guide
Abnormal grinding, clicking, or whining noises from an electric bike motor are early warning indicators of contaminated cartridge bearings, dry planetary gears, or worn one-way sprag clutches. This technical guide provides frequency spectrum audio telemetry, mechanic stethoscope testing methods, and brand-specific overhaul protocols for Bosch, Brose, Shimano, and Bafang systems.
The Strengths
- Acoustic frequency spectrum analysis accurately pinpoints the exact internal failing component without guessing
- Replacing $25 sealed cartridge bearings and crankshaft seals restores whisper-quiet motor operation and prevents core seizure
- Mechanic stethoscope listening methods easily separate internal motor noises from frame creaks and loose pedals
- Step-by-step seal overhaul prevents water and road deicing salt contamination from destroying copper stator coils
- Full coverage of brand-specific quirks including Shimano EP8 coasting rattle and Brose internal timing belt tensioning
The Compromises
- Bosch and Shimano factory warranties are voided if the outer motor casing seal is broken during the 2-year warranty period
- Extracting seized main crankshaft bearings requires specialized blind bearing pullers and heat-expansion tools
- Neglected bearing corrosion that penetrates into the rotor cavity can cause permanent magnet delamination
Acoustic Frequency Signatures, Bearing Tribology & Seal Dynamics
Fast Fourier Transform (FFT) noise mapping, contact seal lip wear, and synthetic marine grease
Decibel Noise Thresholds, Water Ingress Telemetry & Bearing Longevity
Empirical acoustic decibel measurements and seal degradation tests under pressure wash conditions
Motor Extraction Protocols, Blind Bearing Pullers & Crankshaft Seals
Motor drop procedures, bearing drift tools, and freeze-insertion mechanical techniques
Chassis & Cycle Parts Specifications
- Disconnecting main wiring harness (speed sensor, display, battery power) using non-conductive pry tools
- Removing frame mounting Torx T30 / 8mm hex bolts torqued to 35 Nm in diagonal sequence
- Extracting main spindle cartridge bearings using 24mm/30mm blind hole internal bearing pullers
- Freeze-insertion protocol: Chilling new SKF/Enduro 2RS bearings in freezer before pressing into heated casing
- Packing external labyrinth seal cavities with marine-grade waterproof synthetic calcium-sulfonate grease
Acoustic Stethoscope Testing, Torque Wrench Checks & Software Updates
Field diagnostic checks, motor bolt torque verification, and firmware motor tuning
Cockpit, Electronics & Ergonomics Features
- Stethoscope Test: Placing metal probe against motor drive-side casing while spinning pedals to isolate noise
- Motor Mounting Torque Check: Verifying all motor-to-frame bolts are torqued to exact 35 Nm factory spec
- Pedal & Chainring Inspection: Checking 104 BCD chainring bolts and pedal threads to rule out false motor creaks
- Shimano EP8 / EP801 Firmware Update: Applying latest assist firmware to smooth motor clutch engagement
- Brose Drive S Mag Belt Inspection: Checking 15mm internal Gates timing belt tension (Target: 75 Hz resonance)
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Acoustic Frequency & Diagnostic Symptom Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Bearing Dimensions, Sealing Standards & Metallurgy
Chassis & Suspension
Braking & Wheel Hardware
3. Repair Economics, Tooling & Overhaul Feasibility
Smart Electronics & Ergonomics
Commercial Data & Warranty
E-Bike Motor Noise & Bearing Diagnostics: The 2026 Verdict
Buy If You Want
- E-bike owners hearing a low rumbling grinding sound under pedal load that vibrates through the frame
- Riders who wash their e-bikes with garden hoses or ride through wet winter slush and road deicing salts
- Brose motor owners experiencing loud whining due to loose internal Gates timing belts
- Cyclists seeking to isolate whether a mystery creak originates from the motor, pedals, or suspension pivots
Skip If You Need
- Shimano EP8/EP801 owners hearing light rattling while coasting over rough trails (which is normal clutch tolerance)
- Bikes under active 2-year factory warranty where opening the casing would void official manufacturer replacement
Motor Acoustic Diagnostics: Frequency Mapping, Stethoscope Testing & Bearing Rebuilds
Electric bike mid-drive motors from industry leaders like Bosch, Brose, Shimano, and Bafang are marvels of compact electromechanical engineering. Operating at rotational speeds up to 4,000 RPM, they integrate high-power copper stators, multi-stage planetary reduction gearsets, one-way sprag clutches, and precision sealed ball bearings within a sealed magnesium shell. When strange noises develop, identifying the acoustic frequency signature is the key to accurate diagnosis.
1. Frequency Spectrum Mapping: Rumble vs Whine vs Squeal
Every internal motor component produces a distinct acoustic frequency when failing. A low-frequency rumbling growl between 100 Hz and 250 Hz that intensifies when pedaling hard indicates contaminated main crankshaft ball bearings where water has washed away factory grease. A high-pitch metallic whine between 1.5 kHz and 3.0 kHz points to dry planetary reduction gears or a worn Brose internal belt. In contrast, a high-frequency 6.0 kHz squeal is normal PWM switching harmonics from controller power transistors. Calculate your motor efficiency with our Range Calculator.
2. The Mechanic Stethoscope: Isolating Frame Creaks from Motor Noise
Bicycle frames act as acoustic resonators; a dry seatpost or loose pedal thread can echo through the downtube and sound deceptively like a failing motor. To isolate the noise, place the metal probe of an automotive mechanic stethoscope directly against the motor casing near the crankshaft spindle while rotating the pedals by hand on a repair stand. If the bearing rumble is loud and distinct through the headset, the motor requires an internal overhaul. Compare motor architectures in our Bike Comparison Tool.
3. Step-by-Step Bearing Extraction & Marine Seal Upgrades
Overhauling motor bearings takes under 90 minutes. After dropping the motor and removing the outer cover, extract the worn bearings using a blind hole bearing puller. Heat the magnesium casing to 70°C with a heat gun and press in new SKF 2RS or Enduro MAX sealed bearings that have been chilled in a freezer. Crucially, pack the external labyrinth spindle seals with waterproof marine calcium-sulfonate grease to permanently block future road spray and mud intrusion. Explore all repair guides in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
A grinding or rumbling noise that gets louder when pedaling is almost always caused by contaminated, dry, or corroded main crankshaft cartridge ball bearings. Water, grit, or high-pressure washing penetrates past worn rubber seals and washes away the internal grease.
Yes. The Shimano EP8 and EP801 motors have a small amount of mechanical backlash in the freewheel clutch mechanism designed to reduce drag. When coasting over rough trails without pedaling, the internal gears can rattle lightly against each other, which is completely harmless.
If your Brose motor produces a loud, high-pitched whistling or whining sound under acceleration, or if the motor slips and revs freely without turning the chainring, the internal 15mm Gates rubber timing belt has lost tension or snapped.
Never use a high-pressure hose or pressure washer on an electric bike. Always use a damp cloth, soft nylon brush, and mild bike wash soap to clean the motor exterior, keeping direct water streams away from the crankshaft spindle seals.
Yes. Replacement bearing kits from brands like SKF and Enduro MAX cost between $25 and $45. With a blind bearing puller and basic mechanical skills, you can replace the worn bearings and save over $600 compared to buying a replacement motor unit.
Use high-quality synthetic grease containing PTFE (such as Mobilgrease 28 or SuperLube) for internal reduction gears, and waterproof marine-grade calcium-sulfonate grease for external spindle labyrinth seals.
