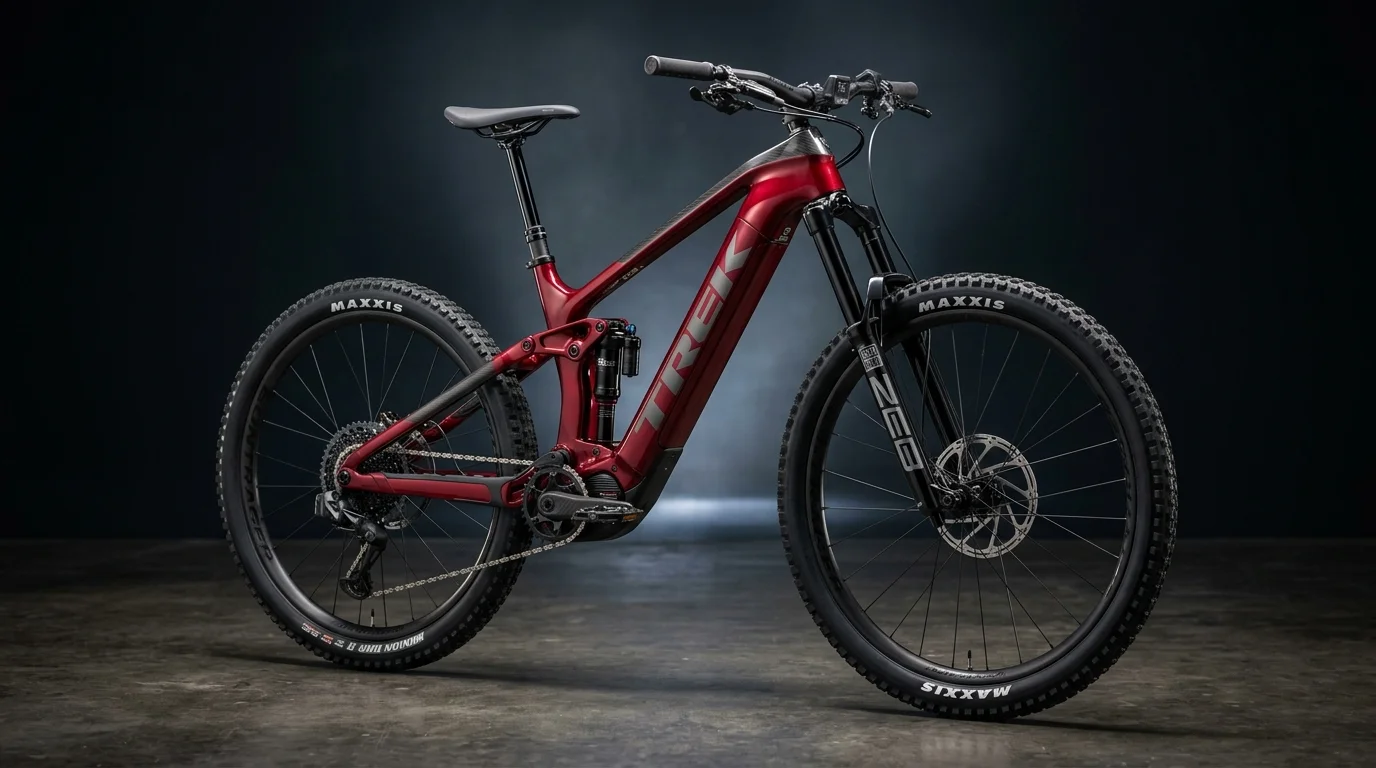

Trek Rail+ 9.8 Gen 5 Review (2026): Bosch CX Gen 5, 800 Wh Battery & Specs
The long-travel carbon enduro eMTB featuring the silent Bosch Performance Line CX Gen 5 motor (85 Nm torque), 800 Wh internal PowerTube battery, 170mm RockShox ZEB Ultimate fork, and OCLV Mountain Carbon frame.
The Strengths
- Next-generation Bosch CX Gen 5 motor eliminates downhill overrun clatter and mechanical noise
- Huge 800 Wh internal battery powers all-day alpine epics exceeding 5,500 vertical feet
- Plush 170mm/160mm RockShox Ultimate suspension package with Charger 3.1 RC2 damper
- OCLV Mountain Carbon frame with 4-position Mino Link geometry and headset angle adjustment
- PowerMore 250 Wh range extender compatible for colossal 1,050 Wh multi-peak missions
The Compromises
- At 23.4 kg (51.6 lbs), it is heavier than ultra-lightweight mid-assist trail e-bikes
- Premium $8,999 price point reflects high-spec carbon frame and suspension componentry
- Long 170mm travel enduro geometry is tuned for aggressive descents rather than mellow flat loops
Estimate monthly financing rates, calculate alpine elevation gain per charge, and compare battery capacities.
Bosch Performance Line CX Gen 5 & PowerTube 800 Wh Architecture
85 Nm torque, 600W peak assist, whisper-quiet operation, and dynamic trail sensing.
Alpine Elevation Gain, Rough Descent Control & Single-Charge Range
Tested vertical elevation benchmarks, battery discharge curves, and trail speed.
OCLV Mountain Carbon Frame, RockShox ZEB & Shimano XT Brakes
170mm ZEB Ultimate fork, 160mm Super Deluxe shock, and 4-piston XT calipers.
Chassis Specifications
- OCLV Mountain Carbon mainframe and rear stays with integrated down-tube rock armor and motor bash guard
- RockShox ZEB Ultimate Charger 3.1 RC2 fork with 38mm stanchions and 170mm of plush enduro travel
- RockShox Super Deluxe Ultimate RC2T piggyback shock delivering 160mm of controlled rear wheel travel
- Shimano Deore XT M8120 4-piston hydraulic disc brakes paired with 220mm front and 203mm rear Ice-Tech rotors
- Bontrager Line Pro 30 OCLV Carbon 29-inch tubeless-ready wheelset with Rapid Drive 108 hubs
4-Way Mino Link Geometry, Removable Integrated Battery & Cockpit
Adjustable head tube angle, Bontrager Line Pro dropper post, and Bosch System Controller.
Ergonomics & Trail Handling
- Mino Link flip chip and angle-adjust headset cups allow customization of head angle between 63.5° and 65.0°
- Removable Integrated Battery (RIB 2.0) system enables tool-free battery removal from the side of the downtube
- Bontrager Line Pro dropper post (up to 200mm travel) provides complete saddle clearance on vertical rock rolls
- Bosch System Controller integrated seamlessly into the top tube with minimalist Mini Remote on the handlebar
Complete 30-Point Technical Specification Matrix
Comprehensive factory engineering data for the 2026 Trek Rail+ 9.8 Gen 5.
1. Motor, Battery & Transmission Architecture
Motor & Drive System
Battery & Drivetrain
2. Carbon Chassis, RockShox Suspension, Brakes & Geometry
Frame & Suspension
Brakes & Dimensions
3. Cockpit, App Connectivity & Commercial Pricing
Cockpit & Electronics
Commercial & Pricing
Is the 2026 Trek Rail+ 9.8 Gen 5 the Ultimate Full-Power Enduro eMTB?
Buy If You Want
- Quiet, responsive 85 Nm Bosch CX Gen 5 motor with zero downhill clatter
- Colossal 800 Wh internal battery capacity for true 5,500+ vertical foot alpine range
- Top-tier 170mm/160mm RockShox Ultimate suspension package with Charger 3.1 RC2
- OCLV Mountain Carbon frame backed by Trek's global dealer support and lifetime warranty
Skip If You Need
- An ultra-light sub-19 kg mid-assist trail bike for lightweight XC flow trails
- An entry-level budget e-bike under the $5,000 threshold
Trek Rail+ 9.8 Gen 5: Bosch CX Gen 5, 800 Wh Battery & Enduro eMTB Review
Full-power electric enduro mountain bikes represent the pinnacle of self-shuttled alpine exploration. The 2026 Trek Rail+ 9.8 Gen 5 delivers long-travel suspension and class-leading battery capacity. Compare lightweight carbon full-power eMTBs in our Cannondale Moterra SL 1 Review and explore cargo utility platforms in our Specialized Globe Haul LT Review.
1. Bosch Performance Line CX Gen 5: 85 Nm Torque & Silent Overrun
The fifth-generation Bosch Performance Line CX motor delivers 85 Nm of torque and 600W of peak power while resolving the mechanical noise of previous iterations. An internal decoupler eliminates freewheel rattle during rough descents. Advanced multi-axis inertia sensors adjust assistance output to maintain rear tire traction over slick roots.
2. 800 Wh PowerTube Battery & 5,500 Vertical Foot Endurance
Housed securely in the downtube is Bosch's high-energy-density 800 Wh PowerTube battery, providing sufficient power for 60 to 85 miles of trail riding and over 5,500 vertical feet of climbing. Trek's RIB 2.0 side-access latch allows riders to remove the battery without tools. For massive alpine missions, the system connects with an optional 250 Wh PowerMore range extender.
3. OCLV Carbon Chassis, 170mm RockShox ZEB & 4-Way Mino Link
Constructed from Trek's OCLV Mountain Carbon, the Rail+ chassis features 170mm front travel via a RockShox ZEB Ultimate fork and 160mm rear travel via a RockShox Super Deluxe Ultimate shock. Adjustable Mino Link chips and angle-adjust headset cups allow riders to fine-tune head angle geometry between 63.5 and 65.0 degrees or convert to a 27.5-inch mullet rear wheel.
🌿 Related Models & Comparison Guides
Frequently Asked Questions
The 2026 Trek Rail+ 9.8 Gen 5 has an official base MSRP of $8,999 USD in North America (€9,499 in Europe).
The Bosch CX Gen 5 delivers 85 Nm torque with quiet motor operation, zero downhill rattle, and responsive inertia sensor assist.
It features an 800 Wh Bosch PowerTube internal battery delivering 60 to 85 miles of range and over 5,500 vertical feet of climbing.
It is equipped with 170mm front travel via a RockShox ZEB Ultimate fork and 160mm rear travel via a RockShox Super Deluxe Ultimate shock.
Yes. Mino Link geometry chips and adjustable headset cups allow conversion to a 27.5-inch rear wheel.
The Rail+ offers a larger 800 Wh battery capacity, 170mm enduro travel, and Bosch's quiet Gen 5 motor system.
