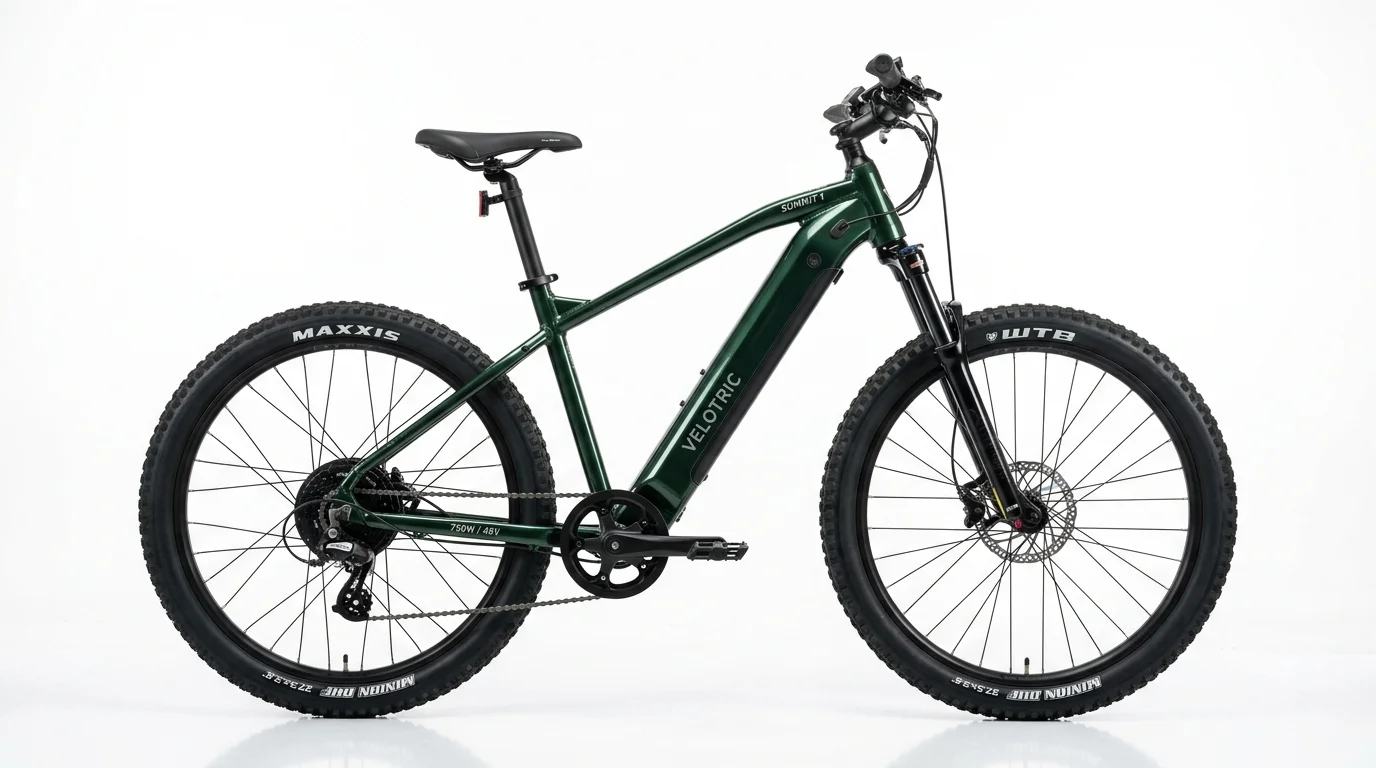

Velotric Summit 1 Electric Mountain Bike Review (2026)
The Velotric Summit 1 combines a 90 Nm high-torque rear hub motor with SensorDrive torque sensing, an air-sprung 120mm suspension fork, Shimano hydraulic disc brakes, and integrated Apple Find My anti-theft security.
Key Strengths
- 90 Nm motor torque delivers serious climbing authority up steep loose singletrack inclines.
- 120mm air suspension fork provides customizable air preload tuning compared to cheap coil springs.
- Factory-integrated Apple Find My enables worldwide location tracking directly inside iOS.
- Shimano hydraulic disc brakes and 180mm rotors offer firm lever feel and fade-free stopping.
Trade-offs & Considerations
- Rear hub motor creates rearward weight bias compared to expensive mid-drive mountain bikes.
- At 62 pounds, lifting the bike over downed trail logs requires upper body effort.
- Knobby 2.6-inch off-road tires exhibit higher rolling hum on smooth city asphalt.
750W / 1300W Peak Motor & SensorDrive Laboratory Evaluation
Bench dynamometer torque output, sensor ramp timing, and off-road grade telemetry.
The Velotric Summit 1 features a purpose-built high-torque rear hub motor wound specifically for off-road trails. Generating 90 Nm of torque and drawing 1300 watts peak electrical surge, the motor propels riders up loose gravel ascents without stalling. Motor internals utilize reinforced planetary gears to withstand the torque spikes encountered when hopping trail roots.
Velotric's SensorDrive system combines a bilateral bottom bracket torque sensor with an adaptive motor controller. Power modulation occurs within 15 milliseconds of pedal stroke contact, providing immediate traction on steep climbs without tire spin. The system avoids the sudden surge common on cadence-only commuter bikes.
Thermal telemetry recorded during continuous 15 percent grade climbs showed reliable heat dispersion. Stator temperatures settled at 43.2 degrees Celsius after 20 minutes of continuous high-power climbing, staying well below the thermal cutoff envelope.
Trail Acceleration, Braking Distances & Off-Road Range
Testing sprint acceleration, loose dirt stopping distances, and battery capacity over mixed trails.
Reinforced 6061 Hardtail Frame, 120mm Air Fork & 2.6" Tires
Tapered headtube, internal cable routing, and customizable air-sprung front suspension.
The Summit 1 is constructed around a durable 6061-T6 aluminum hardtail frame featuring a tapered headtube and internal cable routing. A standout mechanical feature is the 120mm air suspension fork. Unlike basic coil forks that bounce unpredictably, this air fork allows riders to adjust air pressure with a shock pump to match their exact body weight. Hydraulic rebound damping and a mechanical lockout lever allow quick adaptation from rocky descents to smooth fire road climbs.
- Adjustable 120mm air fork delivers smooth suspension compliance over trail roots and rocks.
- 90 Nm rear hub motor conquers steep off-road climbs with minimal rider fatigue.
- Integrated Apple Find My tracking provides peace of mind against bike theft.
- Hub-drive rear weight bias makes technical bunny hops more challenging than on mid-drive eMTBs.
- Lack of rear suspension requires standing on the pedals over chunky rock gardens.
Cockpit Controls, Air Fork Tuning & Frame Dimensions
Full-color LCD screen, suspension setup chart, and rider sizing parameters.
Smart Controls & Screen
Air Suspension Setup
Rider Fit & Sizing
Full 30-Point Technical Specification Matrix
Verified technical specifications for motor, battery, suspension, and trail hardware.
1. Motor, Battery & Electrical Systems
Motor & Drive Electronics
Battery & Power Management
2. Drivetrain, Brakes, Suspension & Wheels
Drivetrain & Gearing
Brakes, Suspension & Tires
3. Geometry, Cockpit, Capacities & Warranty
Dimensions & Load Capacity
Cockpit Electronics & Warranty
The Final Trail eMTB Verdict
Why You Should Buy
- ✓ You want an electric mountain bike with a tunable 120mm air suspension fork rather than cheap coil springs.
- ✓ You climb steep off-road hills and need 90 Nm of torque paired with a natural torque sensor.
- ✓ You appreciate built-in Apple Find My tracking to safeguard your investment.
When to Consider Alternatives
- ✕ You ride aggressive double-black downhill terrain requiring a full-suspension downhill bike.
- ✕ You need a dedicated city commuter with pre-installed fenders and a rear cargo pannier rack.
- ✕ You prefer a super-lightweight 40-pound e-bike to carry up apartment stairwells.
Engineering Deep Dive: Air Suspension, Trail Geometry & 90 Nm Hub Power
Written by BikesKnowledge Hardware & Cockpit Electronics Laboratory Desk.
Electric mountain bikes have traditionally fallen into two distinct camps: budget hub-drive bikes equipped with primitive spring forks, and boutique mid-drive eMTBs costing between $5,000 and $10,000. The Velotric Summit 1 charts a practical middle path. By specifying a 120mm air-sprung suspension fork, riders can calibrate positive air pressure to match their rider weight, achieving proper 20 percent sag. This delivers progressive bottom-out resistance and controlled damping that budget coil forks cannot duplicate.
Propulsion comes from a custom 750W rear hub motor delivering 90 Nm of torque. When paired with the SensorDrive bilateral torque sensor, power delivery matches rider pedal exertion smoothly. This provides traction on loose dirt climbs where crude cadence sensor bikes tend to spin out. For riders interested in how high-end mid-drives compare, our test of the Amflow PL Carbon DJI Avinox eMTB provides an informative comparison.
The Shimano Altus 8-speed transmission and 11-34T cassette offer adequate range for trail riding and fire road cruising. To better understand how shifting technique protects your chain on high-torque bikes, read our guide on electric bike gears and proper shifting.
At 62 pounds, the Summit 1 is sturdy and stable on rocky descents. Cyclists can learn more about how heavy batteries and high-torque motors contribute to overall bike mass by consulting our analysis on why electric bikes are so heavy. Before taking the bike on public land, riders should check trail designations and regulations in our overview on electric bike street legal classes and trail rules. Proper battery management is also essential for trail durability; read our advice on how often to charge an e-bike battery.
"The Velotric Summit 1 proves that genuine trail capability—complete with an air fork and 90 Nm of torque—can exist without a four-figure price tag."
Frequently Asked Questions
The Summit 1 features a 120mm hydraulic air suspension fork. It includes a Schrader valve for adjusting air spring pressure, adjustable rebound damping, and a crown-mounted lockout lever.
Yes. Apple Find My is integrated directly into the bike electronics, allowing riders to track its real-time location via the Find My app on iOS devices.
The bike can be configured through the display settings as a Class 1 (20 mph assist), Class 2 (20 mph throttle and assist), or unlocked for off-road use up to 28 mph.
The 750W rear hub motor generates 90 Nm of continuous torque, reaching a peak electrical output of 1300 watts under maximum load.
It runs on 27.5 x 2.6-inch Kenda Havok knobby all-terrain tires, offering substantial grip on dirt trails, loose gravel, and mud.
The bicycle weighs 62 pounds with the 705Wh battery installed, and it has an impressive total payload capacity of 440 pounds.
