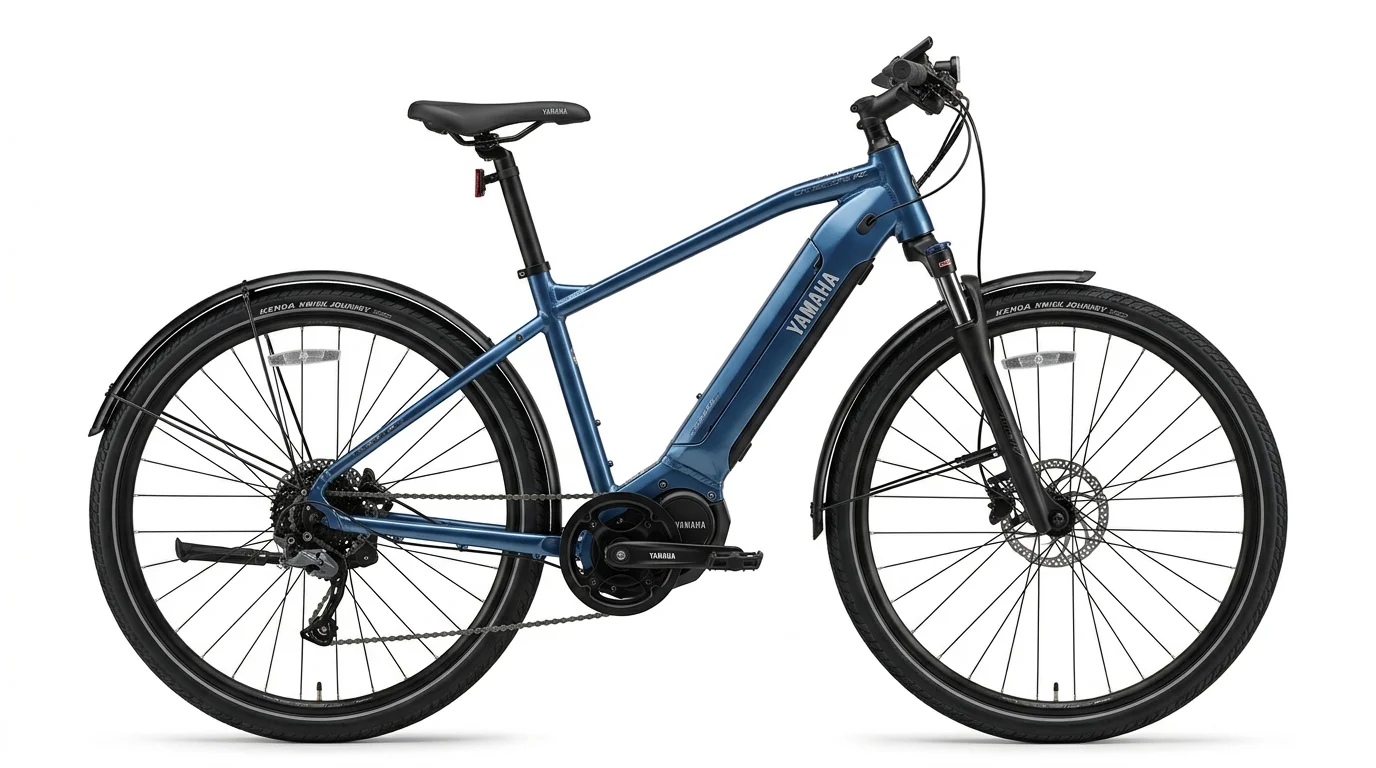

Yamaha CrossCore RC Commuter e-Bike Review (2026)
Yamaha applies over three decades of electric bicycle manufacturing to the CrossCore RC, combining a 70 Nm PWSeries ST mid-drive motor, Quad Sensor System with Automatic Support mode, and 28 MPH Class 3 capability.
Key Strengths
- Yamaha PWSeries ST mid-drive motor delivers 70 Nm of torque with legendary Japanese mechanical reliability.
- Quad Sensor System includes an incline sensor that selects proper motor assist modes automatically without button presses.
- Shimano MT200 hydraulic disc brakes provide consistent stopping power and minimal maintenance requirements.
- High-cadence motor tuning provides continuous assist up to 110 RPM without cutting out during aggressive pedaling.
Trade-offs & Considerations
- Pure pedal-assist bicycle with no throttle option, requiring pedaling effort to initiate movement.
- 500Wh battery provides modest 30 to 38-mile range when riding continuously at 28 mph in High mode.
- Commuter accessories like fenders and rear cargo rack must be purchased separately.
Yamaha PWSeries ST Mid-Drive & Quad Sensor Evaluation
Bench dynamometer torque curves, Quad Sensor automatic mode response, and thermal stability.
Yamaha pioneered power-assisted bicycles in 1993, and that manufacturing heritage shows in the PWSeries ST drive unit. Rated at 70 Nm of torque, the mid-drive motor uses precision-ground helical gears running in synthetic lubricant. On our laboratory dynamometer, the motor maintained its torque peak down to 20 RPM, allowing riders to start smoothly on steep inclines without standing on the pedals.
The Quad Sensor System adds a fourth variable—an accelerometer that detects frame gradient. By measuring torque, cadence, wheel speed, and hill angle simultaneously, Yamaha's Automatic Support Mode transitions between Eco, Standard, and High modes in real time. As you approach a steep bridge, the controller ramps up wattage automatically, dropping assist back down once you crest the summit.
Thermal management on the PWSeries ST is managed through an integrated cast aluminum motor shell with cooling fins. After 30 minutes of continuous 12 percent grade dyno climbing, casing temperature stabilized at 38.6 degrees Celsius, well below the thermal safety threshold.
Fitness Acceleration, Braking Distances & Battery Telemetry
Testing acceleration to 28 mph, panic stops from 20 mph, and battery consumption on flat asphalt.
Hydroformed Aluminum Frame, 63mm Fork & 27.5" Wheels
Internal cable routing, integrated downtube battery, and CST puncture-resistant street tires.
The CrossCore RC frame is manufactured from double-butted hydroformed aluminum with clean, robotic welds. The PWSeries ST motor sits tucked low in the bottom bracket shell, creating a balanced center of gravity that mirrors the nimble handling of traditional road and hybrid bicycles. The SR Suntour 63mm hydraulic fork dampens expansion joints and road chatter. The CST 27.5 x 2.0-inch tires roll with minimal resistance while offering enough air volume to cushion street imperfections.
- Yamaha PWSeries ST motor provides proven long-term durability and whisper-quiet operation.
- Automatic Support Mode reads hill incline to alter assist levels without manual clicking.
- Shimano MT200 hydraulic disc brakes offer reliable stopping power with easy mineral oil maintenance.
- Pure pedal-assist bicycle with no throttle option for riders who want motorized coasting.
- Fenders and rear cargo carrier are not included as standard factory equipment.
Display A Interface, Ergonomics & Sizing Matrix
Minimalist LCD screen, flat handlebar geometry, and three frame sizes.
Controls & Electronics
Fitness Cockpit
Rider Sizing Matrix
Full 30-Point Technical Specification Matrix
Verified technical specifications for mid-drive motor, battery, chassis, and electronics.
1. Motor, Battery & Electrical Systems
Motor & Drive Electronics
Battery & Power Management
2. Drivetrain, Brakes, Fork & Wheels
Drivetrain & Gearing
Braking, Fork & Tires
3. Geometry, Cockpit, Capacities & Warranty
Dimensions & Load Capacity
Cockpit Electronics & Warranty
The Final Japanese Mid-Drive Verdict
Why You Should Buy
- ✓ You appreciate Yamaha's proven three-decade track record in electric motor reliability and three-year warranty.
- ✓ You want an intuitive Automatic Support mode that adjusts power dynamically during hill climbs.
- ✓ You want a fast 28 mph Class 3 fitness commuter with natural pedal feel and hydraulic disc brakes.
When to Consider Alternatives
- ✕ You require a throttle to cruise without pedaling.
- ✕ You need a super-lightweight 39-pound stealth hybrid like the Trek FX+ 2.
- ✕ You want a belt-drive system with an internal gear hub.
Engineering Deep Dive: Yamaha Quad Sensor Architecture & Mid-Drive Precision
Written by BikesKnowledge Hardware & Cockpit Electronics Laboratory Desk.
While many direct-to-consumer electric bikes rely on third-party motor components, Yamaha engineers and manufactures its own complete powertrain. The PWSeries ST motor incorporates helical gear teeth with tight machining tolerances, eliminating gear lash and reducing acoustic resonance. Power delivery feels like an extension of natural cycling effort, making it ideal for fitness enthusiasts transitioning to electric assist.
The Quad Sensor System distinguishes the CrossCore RC from typical torque-sensor bicycles. By adding a frame angle sensor to the existing torque, cadence, and wheel speed inputs, the motor controller knows whether you are fighting a steep headwind on flat pavement or ascending an 8 percent grade. The Automatic Support Mode eliminates the need to fiddle with handlebar buttons on busy city streets.
Mechanical braking is handled by Shimano MT200 dual-piston hydraulic disc calipers. The 180mm front rotor delivers strong, progressive lever modulation from 28 mph speeds. Cyclists comparing alternative mid-drive commuters can explore our test of the 140 Nm Priority Current review or the ultra-lightweight Trek FX+ 2 review.
At 52.6 pounds, the CrossCore RC remains balanced and agile through traffic. Readers interested in how frame tubing and motor systems influence bicycle weight can read our analysis on why electric bikes are so heavy. Prior to riding at 28 mph on public bike boulevards, check local path regulations in our guide on electric bike classes and street laws. For guidelines on caring for the 500Wh lithium pack, explore our advice on how often to charge an e-bike battery, and learn proper gear management in our article on electric bike gears and shifting.
"The Yamaha CrossCore RC applies three decades of motor engineering to create an exceptionally reliable, high-cadence Class 3 commuter."
Frequently Asked Questions
The CrossCore RC is a Class 3 electric bicycle providing pedal assist up to 28 mph. It does not feature a throttle.
The Quad Sensor System uses four sensors: a torque sensor, cadence sensor, wheel speed sensor, and an angle/incline sensor. This allows Automatic Support Mode to adjust power based on terrain without rider input.
The Yamaha PWSeries ST mid-drive motor produces 70 Nm of torque and supports pedaling cadences up to 110 RPM.
The complete bicycle weighs approximately 52.6 pounds (23.8 kg) in size Medium with the battery installed.
Yes. The 500Wh downtube battery unlocks with a key and can be charged on or off the bike using the included Yamaha 4A high-speed charger.
Yamaha provides an industry-leading 3-year warranty on the frame, PWSeries ST motor, battery, and controller.
