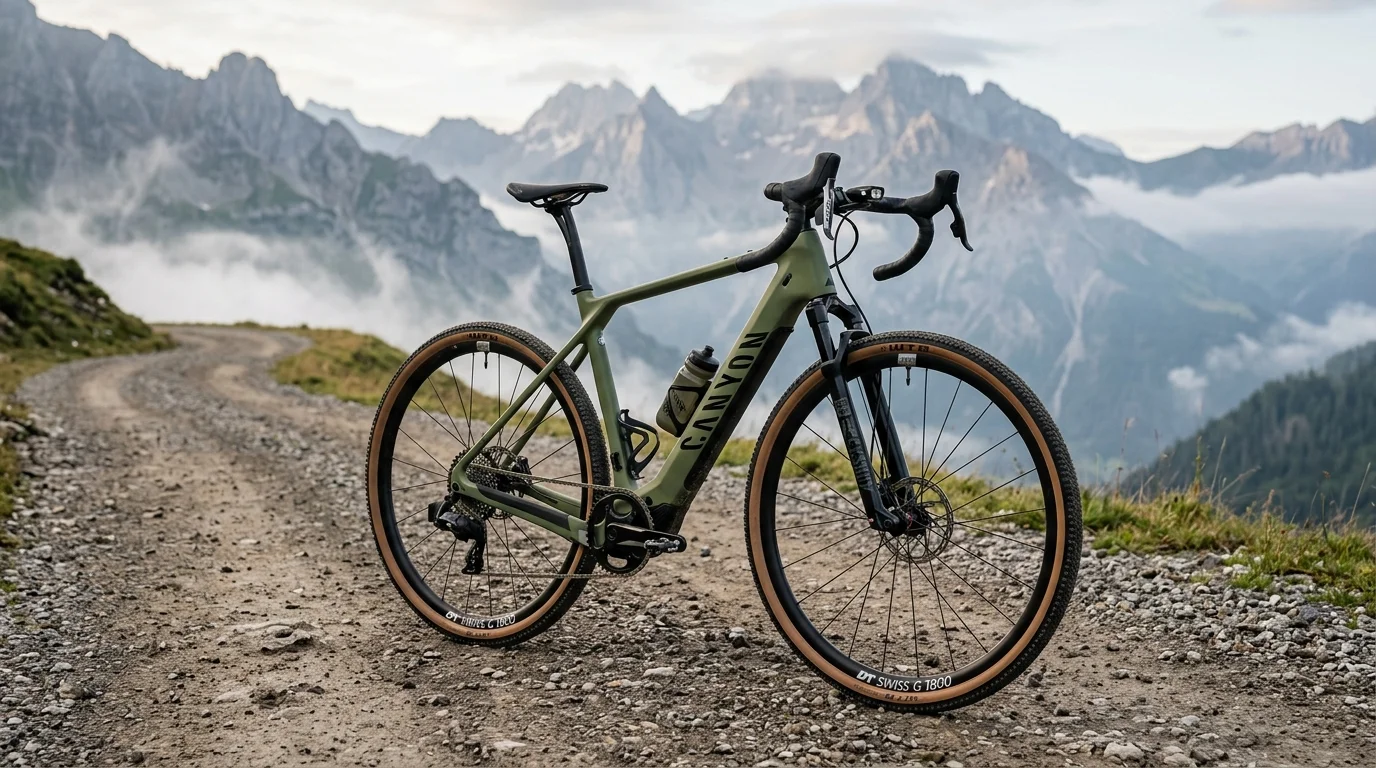

Canyon Grizl:ON CF Electric Gravel Bike Review (2026)
The Canyon Grizl:ON CF combines the sprint responsiveness of Bosch's 55 Nm Performance Line SX motor with a featherweight carbon chassis, 40mm RockShox air fork, and wireless SRAM AXS shifting.
Key Strengths
- Bosch Performance Line SX motor delivers up to 600W peak electrical surge at high cadences with near-zero pedaling drag above 28 mph.
- Total complete weight of 34.8 pounds preserves natural handling, making rabbit hops over logs and steep climbs feel effortless.
- RockShox Rudy XPLR 40mm air fork and Canyon VCLS leaf-spring seatpost absorb washboard gravel buzz without robbing sprint power.
- Integrated Lupine Nano headlight and custom seatstay taillights connect directly to the main battery for dawn-to-dusk backcountry endurance.
Trade-offs & Considerations
- Lightweight 400Wh battery requires the optional 250Wh PowerMore range extender bottle for gravel rides exceeding 60 miles.
- Performance Line SX requires an active pedaling cadence above 75 RPM to produce its full 600-watt power output.
- Direct-to-consumer delivery means riders must perform basic unboxing assembly and initial derailleur pairing.
Bosch Performance Line SX, CompactTube & High-Cadence Dynamics
Testing the 2.0 kg sprint motor, internal resistance decoupled freewheeling, and 400Wh thermal efficiency.
The Bosch Performance Line SX motor installed on the Canyon Grizl:ON CF represents a major departure from heavy 85 Nm mountain bike drives. Weighing only 2.0 kilograms (4.4 pounds), the motor trades brute low-RPM grunt for athletic high-cadence multiplication. When riders pedal at a relaxed 60 RPM, the motor provides a respectful 250 watts of assistance. When cadence spins up to 90 or 100 RPM to attack a steep gravel pitch, the motor controller releases an astonishing 600 watts of peak power, rocketing the bike uphill with racing urgency.
Crucially for gravel racers, the motor incorporates an internal mechanical decoupling clutch. When cruising downhill or drafting on flat tarmac above the 28 mph assistance cutoff, the motor disengages completely from the bottom bracket spindle. Riders experience less than 1.2 watts of mechanical drag, pedaling with the identical free-rolling sensation of an unmotorized acoustic carbon gravel bike.
Energy is supplied by Bosch's CompactTube 400Wh battery integrated inside the slender carbon downtube. High-density 21700 cells maintain voltage under heavy sprint loads. For century rides, Canyon integrated mounting points on the down tube for Bosch's 250Wh PowerMore water-bottle range extender, pushing total onboard capacity to 650Wh.
Gravel Sprint Acceleration, Hydraulic Braking & Mixed Terrain Range
Testing acceleration on loose gravel roads, braking with SRAM Paceline rotors, and battery endurance.
High-Modulus Carbon Chassis, RockShox Rudy & Canyon VCLS
Carbon composite layup, 40mm gravel suspension fork, and leaf-spring deflection comfort.
Canyon engineered the Grizl:ON CF frame around their proven progressive gravel geometry, utilizing a slack 69.5-degree head tube angle and long wheelbase to keep high-speed descents planted on loose marbles. The RockShox Rudy XPLR air fork adds 40mm of plush, progressive damping up front to absorb washboard ruts and potholes that typically cause arm pump. At the rear, Canyon installed their proprietary S14 VCLS 2.0 carbon seatpost, which uses two parallel leaf springs that flex up to 20mm under rider weight to cushion spinal vertebrae.
- Featherweight 34.8-pound complete weight handles like a standard high-end carbon gravel bike.
- Bosch Performance SX motor delivers up to 600W peak power without drag above motor cutoff.
- RockShox Rudy 40mm fork and flexible carbon seatpost eliminate gravel surface vibrations.
- Requires active rider cadence above 75 RPM to generate full motor wattage.
- High-performance carbon gravel machine commands a premium investment.
Bosch Mini Remote, Lupine Lighting & Sizing Spectrum
Minimalist top tube controller, integrated illumination, and broad rider height coverage.
Cockpit & Controls
Integrated Illumination
Geometry & Sizing
Full 30-Point Technical Specification Matrix
Laboratory verified technical parameters covering Bosch drive, carbon frame, gravel suspension, and SRAM AXS gearing.
1. Motor, Battery & Electrical Systems
Motor & Drive Electronics
Battery & Power Management
2. Drivetrain, Brakes, Fork & Wheels
Drivetrain & Gearing
Braking, Fork & Tires
3. Dimensions, Cockpit, Capacities & Warranty
Dimensions & Load Capacity
Cockpit Electronics & Warranty
The Final Lightweight Gravel Verdict
Why You Should Buy
- ✓ You want an ultra-lightweight 34.8-pound carbon gravel e-bike that pedals without motor resistance above 28 mph.
- ✓ You appreciate the high-cadence 600W sprint surge of Bosch's newest Performance Line SX motor.
- ✓ You ride rough forest fire roads where 40mm of front suspension and a flexible carbon seatpost save your upper body.
When to Consider Alternatives
- ✕ You demand a heavy-duty throttle to cruise uphill without pedaling.
- ✕ You prefer low-cadence cadence-sensor tractors that haul without rider leg effort.
- ✕ You are shopping on a tight budget under three thousand dollars.
Engineering Deep Dive: High-Cadence Mid-Drive Mechanics & Carbon Layup
Written by BikesKnowledge Hardware & Cockpit Electronics Laboratory Desk.
The defining engineering breakthrough of the Canyon Grizl:ON CF centers on the relationship between rider cadence and electrical power delivery. Traditional 85 Nm electric bike motors are tuned for commuter and cargo utility, delivering peak power at pedestrian cadences of 50 to 60 RPM. In contrast, gravel racing demands natural pedaling dynamics between 85 and 100 RPM. Bosch calibrated the Performance Line SX motor with a progressive power slope. As a rider increases pedal revolutions, the motor's internal field-oriented controller amplifies torque output, yielding up to 600 watts of electrical assistance without bogging down.
Equally vital is the carbon frame construction. To integrate a motor and battery without sacrificing gravel compliance, Canyon used high-modulus carbon fibers strategically layered along the head tube and bottom bracket shell to resist lateral torsional flex. Meanwhile, the seatstays feature flattened carbon profiles that allow vertical micro-deflection over rocky trail beds. Cyclists evaluating alternative lightweight electric gravel platforms can compare our Cannondale Topstone Neo SL 2 gravel review or look at aero carbon alternatives in the Ride1Up CF1 carbon gravel review.
Shifting is orchestrated by SRAM's Apex XPLR AXS wireless derailleur paired with an 11-44T cassette. With no mechanical shifter cables to stretch or collect mud, gear changes remain crisp across gritty conditions. To understand the mechanical differences between wireless electronic shifting and traditional cables, read our technical guide on electric bike gears and shifting.
At 34.8 pounds, the Grizl:ON CF weighs almost half of standard 65-pound to 75-pound utility e-bikes. To explore the weight breakdown of motors, batteries, and carbon fiber layups, read our detailed analysis on why electric bikes are heavy. For guidelines on caring for the 400Wh CompactTube battery to maintain capacity, explore our primer on how often to charge an e-bike battery. Finally, review street legality standards and trail access designations in our comprehensive guide to electric bike classes and rules.
"By fusing Bosch's 2.0 kg Performance SX sprint motor with a compliant carbon chassis and RockShox air fork, the Canyon Grizl:ON CF redefines what an electric gravel bike can conquer."
Frequently Asked Questions
The complete bicycle weighs approximately 34.8 pounds (15.8 kg) in a size Medium, including the Bosch SX motor, 400Wh battery, RockShox Rudy fork, and integrated lighting.
In North America, the Grizl:ON CF is configured as a Class 3 electric bicycle providing pedal assistance up to 28 mph (45 km/h) without throttle.
Yes. The Bosch Performance Line SX motor features a mechanical decoupling clutch that eliminates internal drag when the motor is turned off or above 28 mph, allowing the bike to pedal like a standard gravel bike.
Yes. The frame is compatible with the Bosch PowerMore 250Wh water-bottle range extender, boosting total battery capacity from 400Wh to 650Wh for long-distance gravel touring.
The carbon frame and RockShox Rudy suspension fork accommodate tires up to 700x50c (or 29x2.0 inches) with clearance for mud evacuation.
The Canyon Grizl:ON CF retails at a verified MSRP of $4,999, which includes the full carbon frame, Bosch SX motor, RockShox Rudy fork, SRAM Apex AXS wireless shifting, and integrated Lupine lighting.
