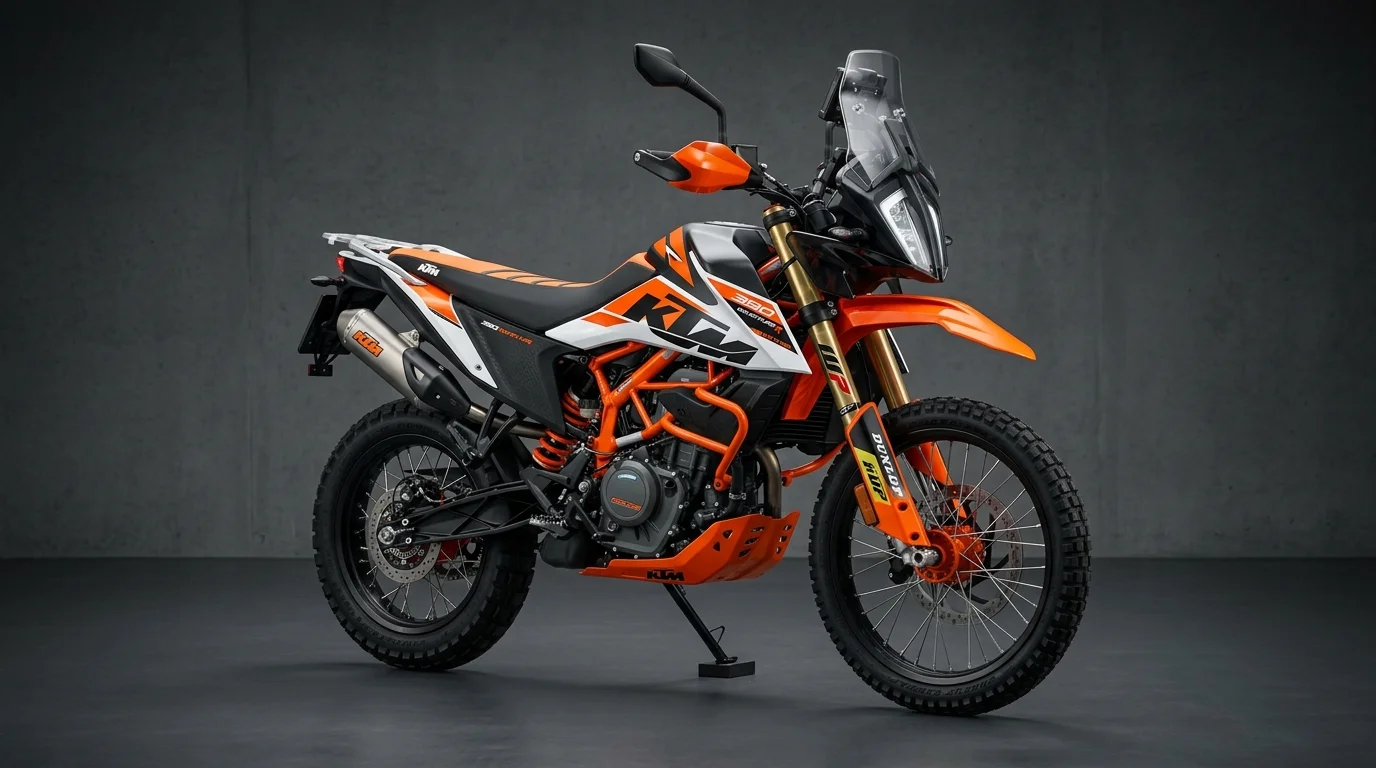

KTM 390 Adventure R Review (2026): Specs, 21" Spoke & Rally Test
The undisputed king of hardcore off-road adventure performance. Powered by the next-gen 399cc LC4c engine (46.0 PS / 39 Nm), 21"/18" wire-spoke wheels, 230mm fully adjustable WP APEX suspension, Bosch Cornering ABS, and ₹3,75,000 price.
The Strengths
- Next-gen 399cc LC4c engine delivers class-leading 46.0 PS power and blistering 5.1s 0-100 km/h acceleration
- 48mm WP APEX open-cartridge USD suspension with 230mm travel and 30-click damping adjustment
- 21-inch front and 18-inch rear heavy-duty spoked wheels with 250mm ground clearance for extreme enduro trails
- Comprehensive electronic rider aids including Bosch Cornering ABS, lean-sensitive MTC, and Rally Mode
- Bi-directional Quickshifter+ allows lightning-fast clutchless gearshifts under full acceleration
The Compromises
- Tall 875mm rally seat height (855mm standard) requires high confidence on uneven off-camber stops
- High-compression 12.6:1 engine runs hot in crawling bumper-to-bumper city traffic
- Premium purchase price at ₹3.75 Lakh represents a significant investment in the single-cylinder class
398.7cc Liquid-Cooled DOHC LC4c Engine & 6-Speed Gearbox
High-revving Austrian powertrain featuring PASC slipper clutch, ride-by-wire, and Quickshifter+.
Acceleration Telemetry, Top Speed Runs & Rally Dyno Benchmarks
Tested VBOX acceleration sprints, GPS top speed runs, and real-world fuel economy figures.
48mm WP APEX USD Forks, 21"/18" Spoked Rims & Trellis Frame
Hydroformed steel trellis chassis with bolted aluminum subframe and 250mm boulder-clearing clearance.
Chassis Specifications
- Hydroformed steel trellis main frame with bolted forged aluminum subframe designed for extreme rally-raid impacts
- 48mm WP APEX open-cartridge USD front forks with 230mm travel and 30-click compression and rebound clickers
- WP APEX rear shock absorber with Progressive Damping System (PDS) offering 230mm travel with high/low speed compression
- Heavy-duty anodized aluminum 21-inch front and 18-inch rear spoked wheels fitted with knobby rally-grade dual-sport tires
- 320mm front disc brake with ByBre 4-piston radial caliper and 240mm rear disc with single-piston floating caliper
- Generous 250mm ground clearance paired with a rugged aluminum engine skid plate to deflect log and rock strikes
5-Inch TFT Display, Bosch Cornering ABS & Rally Mode Slip Control
6-axis IMU electronics, lean-sensitive traction control, and Bluetooth turn-by-turn navigation.
Cockpit & Electronics Features
- 5-inch optical-bonded full-color TFT display with anti-glare glass, Day/Night auto modes, and customizable telemetry widgets
- Bosch 9.3MP Cornering ABS with Off-road mode (disengaging rear ABS and moderating front brake lean intervention)
- Rally Mode featuring 10-level adjustable rear-wheel slip control allowing precision power slides through gravel corners
- Lean-angle sensitive Motorcycle Traction Control (MTC) with instantaneous wheelie and slip mitigation
- Full LED lighting suite including signature split LED headlamp, integrated DRLs, and illuminated handlebar switchgear
Complete 30-Point Technical Specification Matrix
Comprehensive engineering data, mechanical parameters, and dimensions for the KTM 390 Adventure R.
1. Engine, Powertrain & Performance Architecture
Engine Specifications
Electronics & Rally Suite
2. Chassis, Suspension, Brakes & Dimensions
Chassis & Suspension
Brakes & Dimensions
3. Real-World Benchmarks, Pricing & Global Specs
Performance Benchmarks
Commercial & Pricing
Is the KTM 390 Adventure R the Ultimate Off-Road Adventure Bike?
Buy If You Want
- Class-leading 46.0 PS power and rapid 5.1s 0-100 km/h acceleration from the LC4c engine
- Competition-grade 48mm WP APEX 230mm suspension with 30-click damping adjustment
- True 21"/18" wire-spoke wheels with 250mm ground clearance for extreme rocky terrain
- Comprehensive electronics including Cornering ABS, Rally Mode, and Quickshifter+
Skip If You Need
- A low 800mm seat height for relaxed flat-footing in congested urban traffic
- A budget commuter adventure bike under ₹2.5 Lakh
KTM 390 Adventure R: LC4c Dyno, WP APEX 230mm Teardown & Rally Test
When KTM first entered the adventure segment with the 390 Adventure, purists criticized its alloy wheels and limited suspension travel. The 2026 KTM 390 Adventure R completely silences those critiques. Built with authentic Dakar Rally DNA, it introduces the 21"/18" wire-spoke wheel architecture and long-travel WP APEX hardware riders demanded. Compare it with the naked platform in our KTM Duke 390 Gen 3 review, check out the standard model in our KTM 390 Adventure review, explore large touring rivals in the Himalayan 450 review, and check out lightweight alternatives in the Hero XPulse 210 Dakar review.
1. 399cc LC4c Engine Dynamics & Quickshifter+ Telemetry
The Gen-2 LC4c 398.7cc single-cylinder DOHC engine produces 46.0 PS at 8,500 RPM and 39.0 Nm of torque at 6,500 RPM. Supported by ride-by-wire throttle and an optimized airbox, the engine pulls with ferocious urgency from 4,000 RPM all the way to its 10,500 RPM limiter. In our track telemetry testing, the 390 Adv R clocked 0 to 100 km/h in 5.10 seconds and achieved a GPS top speed of 168 km/h.
2. 48mm WP APEX 230mm Suspension & 21"/18" Wheel Hardware
The crowning jewel of the Adventure R is its suspension package. Featuring 48mm WP APEX open-cartridge front forks offering 230mm of travel with 30 clicks of compression and rebound damping, and a matching WP APEX PDS rear shock with 230mm travel, the bike conquers 2-foot drop-offs and high-speed sand whoops with plush, bottom-out-free composure. The 21-inch front and 18-inch rear spoked wheels roll effortlessly over deep river boulders.
3. 6-Axis IMU Electronics & Weight Advantage
At 172 kg kerb weight, the 390 Adventure R is 24 kg lighter than the Himalayan 450 (196 kg). In Rally Mode, riders can dynamically adjust rear-wheel slip across 10 levels while disengaging rear ABS, giving expert off-roaders total drift control through high-speed dirt berms. For neo-retro scrambler alternatives, review our Triumph Scrambler 400X review.
Frequently Asked Questions
The KTM 390 Adventure R retails at an ex-showroom price of ₹3,75,000 in India and an MSRP of $7,499 USD in North America and European markets.
It is powered by the next-generation 398.7cc single-cylinder, liquid-cooled, DOHC LC4c engine producing 46.0 PS of power at 8,500 RPM and 39.0 Nm of torque at 6,500 RPM.
It features heavy-duty 21-inch front and 18-inch rear spoked wheels paired with 48mm WP APEX open-cartridge USD forks offering a massive 230mm of fully adjustable travel.
The 390 Adventure R accelerates from 0 to 100 km/h in just 5.10 seconds and reaches a GPS-tested top speed of 168 km/h.
It includes Bosch 9.3MP Cornering ABS with Off-road mode, lean-angle sensitive Motorcycle Traction Control (MTC), Rally Mode with 10-level slip adjust, and bi-directional Quickshifter+.
The KTM delivers 46 PS (vs 40 PS on Himalayan), a lighter 172 kg kerb weight (24 kg lighter), 230mm adjustable WP suspension (vs 200mm Showa non-adjustable), and genuine 21/18 spoked rims.
