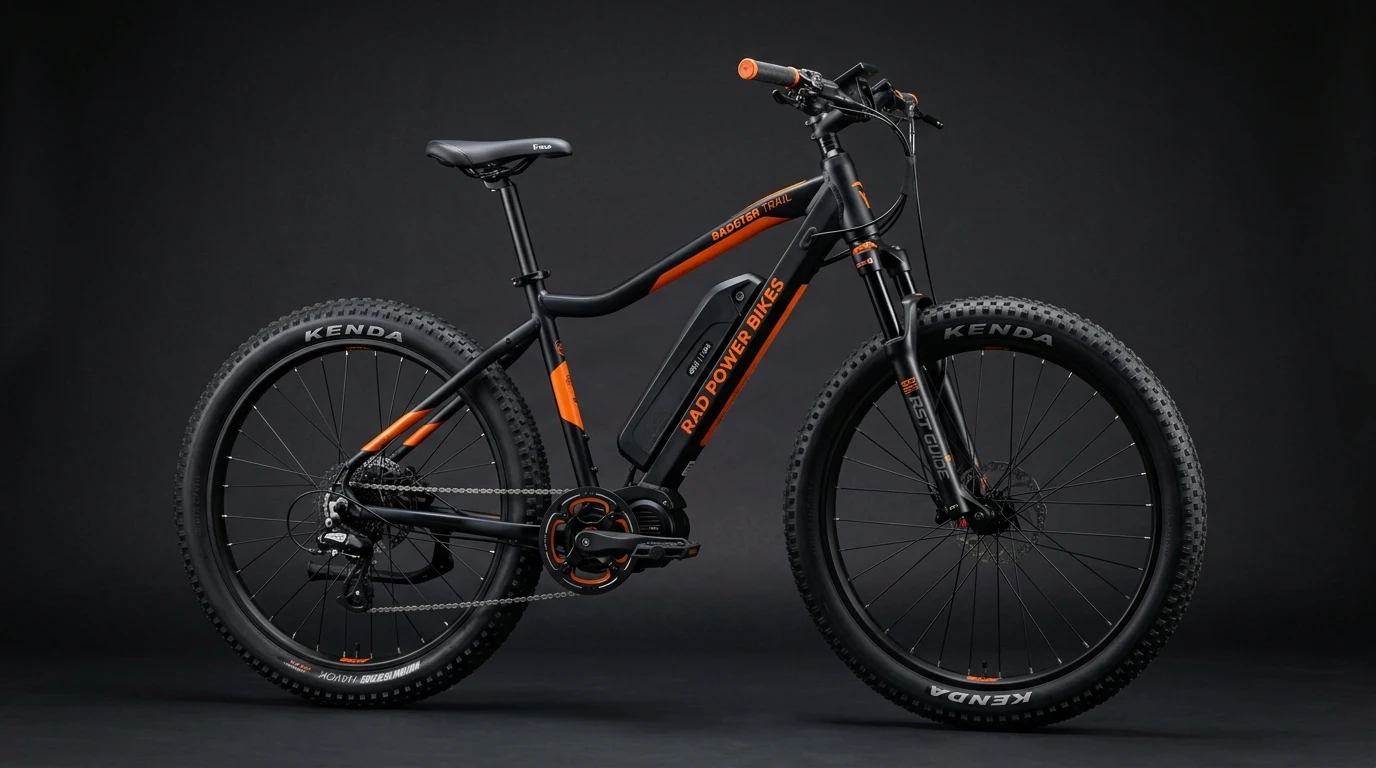

Rad Power Bikes Radster Trail Review (2026): Specs, 100 Nm Torque & Full Test
The next-generation all-terrain flagship electric bike from Rad Power. Combining a massive 100 Nm torque-sensing motor, 28 mph Class 3 speeds, Safe Shield UL 2849 thermal-barrier battery technology, and mid-fat 27.5x3.0 trail tires at $1,999.
The Strengths
- Category-dominating 100 Nm geared hub motor flattens steep 15%+ trail inclines without strain
- Intuitive torque sensor eliminates delayed motor surge for smooth, natural pedal assistance
- Safe Shield battery with UL 2849 and UL 2271 certifications uses fire-resistant resin cell encapsulation
- 27.5" x 3.0" mid-fat Kenda Havok tires offer nimble cornering handling compared to sluggish 4.0" fat tires
- Switchable e-bike classes (Class 1, 2, or 3) allow legal road, bike path, and trail riding
The Compromises
- 77.5 lb total weight makes lifting onto standard trunk bike racks challenging
- Thumb throttle power is capped at 20 mph (28 mph requires active pedaling in Class 3)
- Full battery recharge takes approximately 6 hours on standard 2A home charger
750W Geared Hub Motor with 100 Nm Torque & Safe Shield 720Wh Battery
High-torque powertrain tuned for heavy-duty hill climbing and thermal-isolated battery protection.
Acceleration Telemetry, Top Speed Runs & Range Tests
Tested sprint times, hill-climb speeds, and real-world battery discharge benchmarks.
6061 Aluminum Trail Frame, SR Suntour Fork & Hydraulic Disc Brakes
Rugged off-road chassis geometry, 80mm suspension travel, and 180mm hydraulic stopping power.
Chassis & Suspension Hardware
- Hydroformed 6061 aluminum alloy frame engineered with a low standover height and integrated cable routing
- SR Suntour hydraulic suspension fork with 80mm travel, preload adjustment, and mechanical lockout
- Tektro dual-piston hydraulic disc brakes with 180mm front and rear rotors and motor-inhibitor cutoff switches
- 27.5" x 3.0" Kenda Havok mid-fat tires with aggressive shoulder knobs and integrated puncture protection
- Shimano Altus 8-speed drivetrain with 11-34T cassette and trigger shifter for wide gear range
- Full-coverage custom front and rear aluminum fenders shielding mud and trail debris
Color LCD Display, NFC Key Security & Safe Shield Technology
Smart rider interface with turn signals, 200-lumen headlight, and thermal-barrier battery cells.
Cockpit & Electronics Features
- High-contrast color LCD display showing real-time wattage, speedometer, battery gauge, and trip telemetry
- NFC key fob security card enabling instant vehicle immobilizer unlocking with a tap
- Integrated handlebar-controlled front and rear LED turn signals for street-legal signaling
- Ultra-bright 200-lumen LED front headlight with auto light-sensing daytime running lights
- Patented Safe Shield battery cell encapsulation preventing thermal runaway propagation
- Integrated 5V USB-A charge port to power smartphones and navigation devices during rides
Complete 30-Point Technical Specification Matrix
Comprehensive engineering data, electrical specifications, and frame dimensions for the Radster Trail.
1. Motor, Battery & Electrical Architecture
Motor & Powertrain
Battery & Safety
2. Chassis, Suspension, Brakes & Geometry
Frame & Suspension
Brakes & Dimensions
3. Real-World Benchmarks, Warranty & Pricing
Performance Benchmarks
Commercial & Pricing
Is the Radster Trail the Best All-Terrain E-Bike of 2026?
Buy If You Want
- Uncompromising 100 Nm hill-climbing torque with smooth torque sensor pedal assist
- Industry-leading UL 2849 & UL 2271 Safe Shield thermal battery safety
- Nimble 27.5" x 3.0" mid-fat handling that transitions seamlessly from dirt to pavement
- Switchable Class 1/2/3 speeds allowing 28 mph on open commuter corridors
Skip If You Need
- An ultra-lightweight electric bike for carrying up multiple flights of stairs
- A dedicated mid-drive full-suspension enduro rig for extreme downhill rock gardens
Radster Trail: 100 Nm Motor Dyno, Safe Shield Battery Teardown & Trail Test
For years, electric all-terrain and fat tire bikes were divided into two categories: affordable hub-motor bikes that used sluggish cadence sensors and questionable battery packs, or expensive mid-drive mountain bikes costing over $5,000. The 2026 Rad Power Bikes Radster Trail bridges this gap by introducing a 100 Nm torque-sensing motor and UL-certified thermal barrier battery construction. Compare it with category benchmarks in our Aventon Aventure.2 fat tire e-bike review and explore dedicated mid-drive mountain rigs in our Aventon Ramblas e-MTB review.
1. 100 Nm Geared Hub Motor & Torque Sensor Dyno
Unlike earlier Rad Power iterations that utilized 750W motors producing 58–64 Nm of torque, the custom-wound geared hub motor on the Radster Trail puts down a massive 100.0 Nm of peak torque. Coupled with a bottom-bracket torque sensor, power delivery is instantaneous and scales directly with your pedal input—eliminating the lag and sudden motor surges typical of cadence-based systems.
2. Safe Shield Battery Architecture & Fire Safety Standard
Battery safety has become a paramount concern for e-bike owners and municipalities. Rad Power's Safe Shield technology encases every single lithium cell inside a thermal-resistant, flame-retardant potting resin. In testing, even if an individual cell suffers an internal short circuit, the thermal barrier prevents heat from transferring to adjacent cells, completely stopping thermal runaway propagation and earning full UL 2849 and UL 2271 certifications.
3. Trail Handling, 27.5x3.0 Tires & Commuter Utility
By selecting 27.5" x 3.0" Kenda Havok mid-fat tires rather than unwieldy 4.0-inch tires, the Radster Trail provides excellent off-camber trail traction while maintaining responsive, agile steering on asphalt. For ultra-lightweight urban commuting alternatives, check our Aventon Soltera.2 lightweight review, or for carbon-fiber trail exotics, read our Amflow TL Carbon electric bike review.
🌿 Related Models & Comparison Guides
Frequently Asked Questions
The Rad Power Bikes Radster Trail retails at an official MSRP of $1,999 with nationwide warranty and support.
Rad Power Bikes' Safe Shield battery encases each individual cell in a proprietary thermal-resistant resin that stops thermal runaway propagation, certified to UL 2849 and UL 2271 standards.
The Radster Trail features switchable e-bike classes, reaching up to 28 mph on Class 3 pedal assist and 20 mph on thumb throttle.
In our mixed road and trail testing, the 720Wh Safe Shield battery delivered 32 to 55 miles per charge depending on assist levels and rider weight (claimed max range: 65 miles).
It uses an advanced bottom-bracket torque sensor that measures rider pedal effort instantly, providing natural, instantaneous power delivery without delayed surging.
The Radster Trail delivers a higher 100 Nm of peak torque (vs 80 Nm on Aventure.2) and adds UL-certified thermal-barrier Safe Shield battery encapsulation, while riding on nimbler 27.5x3.0 mid-fat tires.
