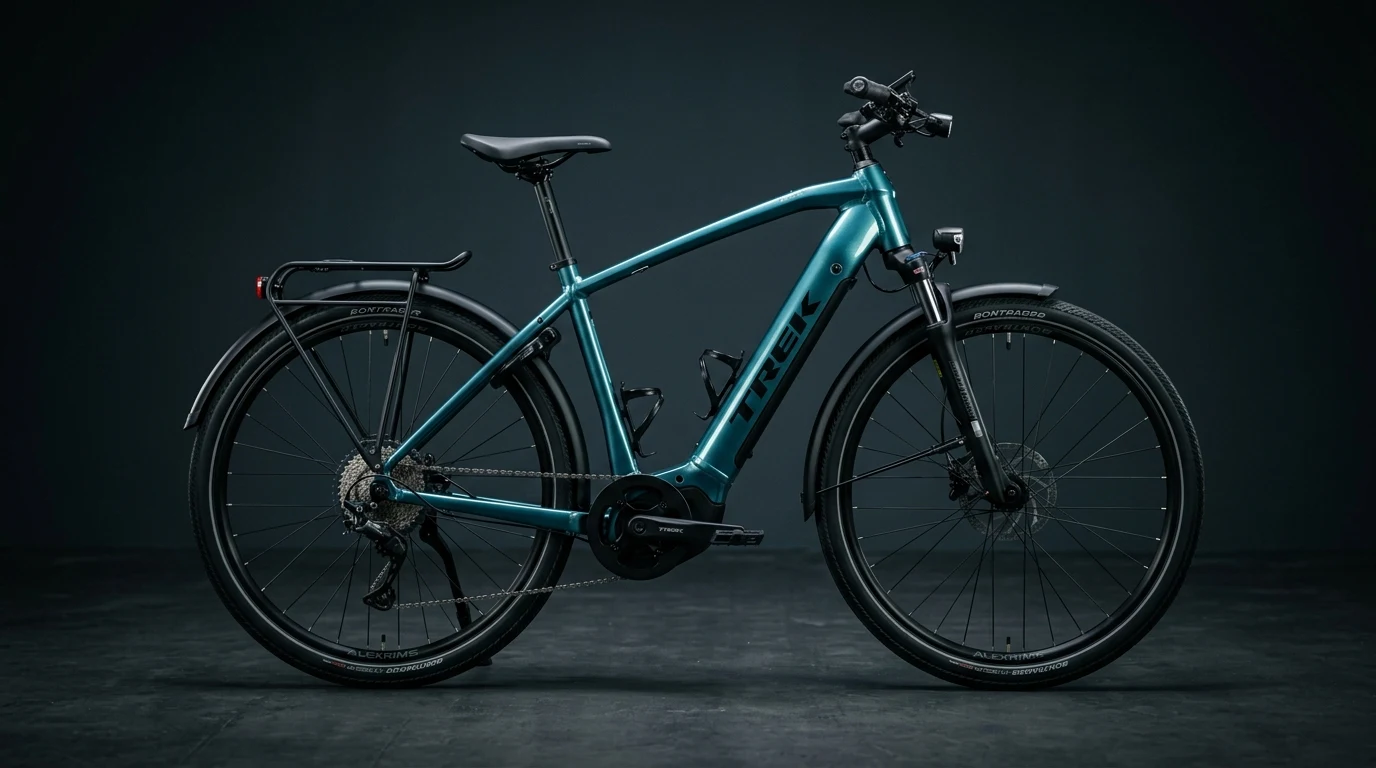

Trek Allant+ 7 Gen 2 Review (2026): Specs, Bosch CX & Road Test
The benchmark premium commuter electric bike. Powered by the high-torque Bosch Performance Line CX motor (85 Nm), integrated tool-free Removable Integrated Battery (RIB) system, Bosch Purion 200 Smart System, and Shimano CUES drivetrain at $3,299.
The Strengths
- High-torque 85 Nm Bosch Performance Line CX motor effortlessly conquers steep city hills
- Trek Removable Integrated Battery (RIB) system allows convenient, tool-free side battery removal
- Bosch Purion 200 color screen integrates full eBike Flow app navigation and activity telemetry
- High-durability Shimano CUES 9-speed drivetrain with Linkglide technology resists premature chain stretch
- Fully equipped out-of-the-box with custom alloy fenders, Herrmans lighting, and MIK rear rack
The Compromises
- Class 1 assistance tops out at 20 mph (speed pedelec commuters may desire Class 3 28 mph)
- Standard 500Wh battery requires upgrading to 625Wh for extra-long 60+ mile excursions
- Premium purchase price compared to direct-to-consumer hub motor alternatives
Bosch Performance Line CX (Smart System) & PowerTube 500Wh/625Wh
Industry-leading German mid-drive engineering with dynamic Auto Mode and eBike Flow connectivity.
Acceleration Telemetry, Top Speed Runs & Range Benchmarks
Tested torque sensor responsiveness, cadence matching, and real-world battery discharge curves.
Alpha Platinum Aluminum Frame, SR Suntour Fork & Shimano Brakes
Trek hydroformed commuter frame, 63mm hydraulic suspension fork, and Shimano MT200 hydraulic disc brakes.
Chassis & Suspension Hardware
- Trek Alpha Platinum Aluminum frame with hydroformed tubes, internal cable routing, and motor armor skid plate
- SR Suntour XCR32 / Mobie25 hydraulic suspension fork with 63mm travel, coil spring preload, and lockout
- Shimano MT200 hydraulic disc brakes with 180mm front and rear centerlock rotors for reliable wet-weather braking
- Bontrager E-Grip 27.5" x 2.40" high-volume reflective commuter tires offering low rolling resistance and grip
- Shimano CUES U4000 9-speed drivetrain with Linkglide cassette (11-46T) resisting chain wear under high torque
- MIK HD-compatible rear luggage rack rated for 55 lbs (25 kg) cargo and child seat mounting
Bosch Purion 200 Screen, eBike Flow App & Trek RIB Battery Integration
Compact color handlebar computer, Bluetooth telemetry tracking, and tool-free battery swap.
Cockpit & Smart Features
- Bosch Purion 200 all-in-one color display with ergonomic thumb buttons, battery percentage, and gear assist cues
- Seamless smartphone integration via the Bosch eBike Flow app for custom motor tuning, navigation, and over-the-air updates
- Herrmans H-Black MR8 180-lumen front headlight and Spanninga integrated fender taillight
- Trek Removable Integrated Battery (RIB) system allowing side-loading battery detachment without frame scratch risks
- Ergonomic Bontrager Satellite Elite grips and Bontrager Commuter dual-density saddle
Complete 30-Point Technical Specification Matrix
Comprehensive engineering data, electrical specifications, and frame dimensions for the Trek Allant+ 7 Gen 2.
1. Motor, Battery & Electrical Architecture
Motor & Powertrain
Battery & Display
2. Chassis, Suspension, Brakes & Geometry
Frame & Suspension
Brakes & Dimensions
3. Real-World Benchmarks, Warranty & Pricing
Performance Benchmarks
Commercial & Pricing
Is the Trek Allant+ 7 Gen 2 the Best Bosch Commuter E-Bike?
Buy If You Want
- Proven German mid-drive reliability with the 85 Nm Bosch Performance Line CX motor
- Convenient, tool-free side-loading battery swaps with the Trek RIB frame system
- Long-lasting drivetrain durability with Shimano CUES Linkglide components
- Comprehensive nationwide dealer service and lifetime Trek frame warranty
Skip If You Need
- Class 3 28 mph assisted speeds for high-speed highway bike lane commuting
- A thumb throttle for cruising without active pedaling
Trek Allant+ 7: Bosch CX Dyno, RIB Battery Teardown & Commuter Road Test
In the crowded electric commuter bicycle market, many riders find themselves caught between budget direct-to-consumer hub motor bikes with minimal dealer support and ultra-expensive luxury e-bikes approaching $6,000. The 2026 Trek Allant+ 7 Gen 2 establishes the sweet spot by delivering Bosch's flagship motor system at $3,299. Compare luxury automatic alternatives in our Specialized Turbo Vado 5.0 IGH review and accessible budget commuters in our Aventon Level.2 review.
1. Bosch Performance Line CX (Smart System) & Auto Mode
The heart of the Allant+ 7 is the 85 Nm Bosch Performance Line CX mid-drive motor. In Auto mode, the motor's onboard sensors calculate pedal cadence, torque, and vehicle acceleration over 1,000 times per second, automatically ramping up assistance when confronting headwind or steep hills without requiring the rider to constantly toggle between power modes on the Purion 200 controller.
2. Trek Removable Integrated Battery (RIB) Architecture
Removing an integrated e-bike battery for indoor charging is often cumbersome on competitive frames. Trek's patented RIB system integrates the battery and frame cover into a single unit that detaches from the right side of the downtube with a simple key turn, featuring a built-in handle that prevents accidental drops.
3. Shimano CUES Linkglide Drivetrain & Everyday Utility
Mid-drive motors deliver massive torque directly through the chain, causing standard 11-speed or 12-speed chains to wear out rapidly. Trek equipped the Allant+ 7 with Shimano's heavy-duty CUES 9-speed Linkglide drivetrain, featuring thicker sprocket teeth that triple drivetrain lifespan under electric assist. For all-terrain adventures, explore the Rad Power Radster Trail review or discover carbon trail exotics in our Amflow TL Carbon electric bike review.
🌿 Related Models & Comparison Guides
Frequently Asked Questions
The Trek Allant+ 7 Gen 2 retails at an MSRP of $3,299 with authorized dealer support and Trek lifetime frame warranty.
It uses the flagship Bosch Performance Line CX (Smart System) mid-drive motor producing 85 Nm of torque with Auto, Tour+, and Turbo modes.
Trek's Removable Integrated Battery (RIB) system encases the Bosch PowerTube battery inside a one-piece side-release frame cover, allowing tool-free removal with an integrated carry handle.
In mixed commuting on the 500Wh battery, range spans 35 to 55 miles, while the optional 625Wh battery extends range to over 65 miles per charge.
It operates as a Class 1 electric bike delivering smooth pedal assistance up to 20 mph (32 km/h).
The Allant+ 7 offers Bosch Smart System CX power at $3,299 (over $2,200 less than the Specialized Vado 5.0 IGH), using a durable Shimano CUES Linkglide derailleur setup instead of an internal belt drive.
