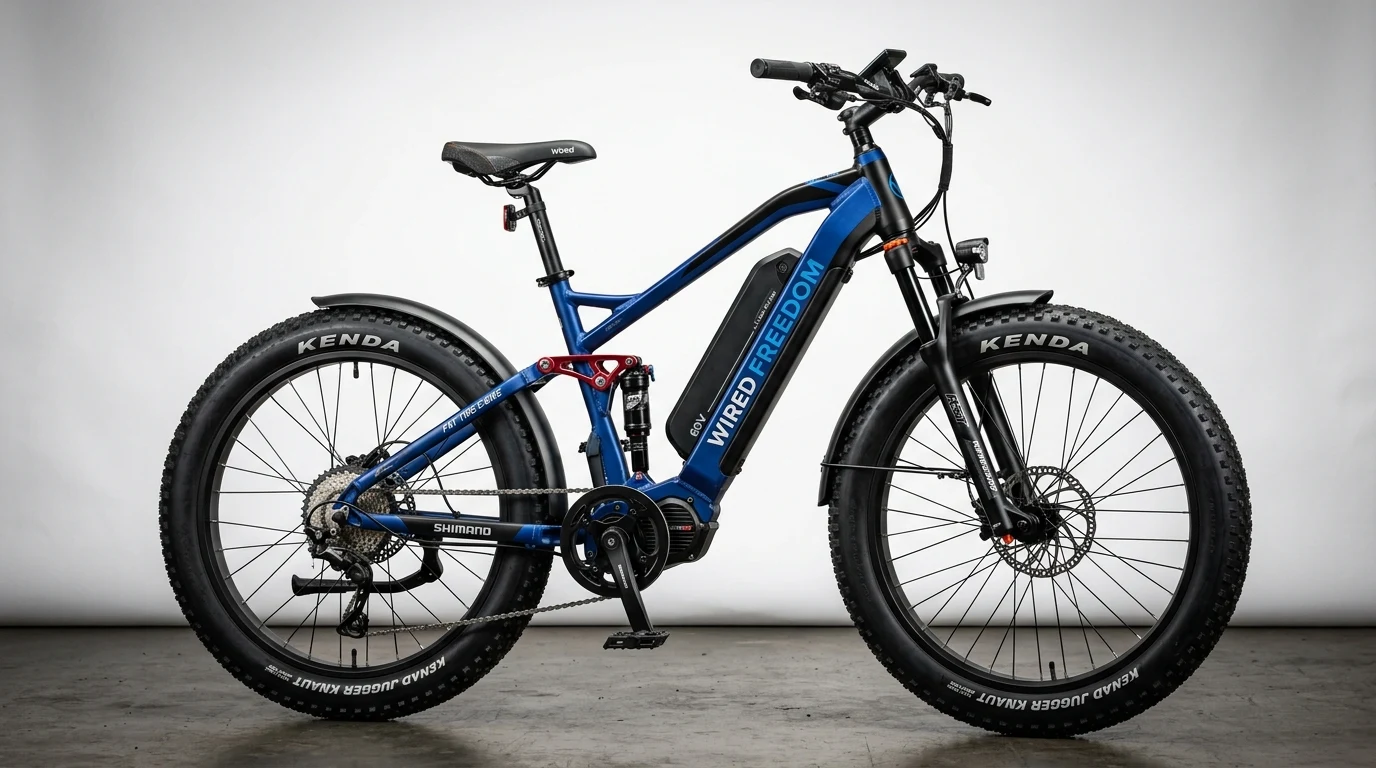

Wired Freedom (2026): 60V 2,200W Peak Power, Torque Sensor & 38 MPH Road Benchmark
The 2026 Wired Freedom elevates consumer electric bicycles into high-voltage performance territory. Operating on a true 60-Volt electrical architecture with a 60V 20Ah (1,200Wh) Samsung 21700 battery pack and a 2,200W peak geared hub motor, the Freedom combines blistering 38 mph acceleration with a responsive bottom-bracket torque sensor and full air suspension.
The Strengths
- 60V electrical system provides rapid acceleration and eliminates the high-temperature phase wire heating common to 48V bikes
- Bilateral bottom-bracket torque sensor seamlessly blends motor assistance with rider pedaling input
- Four-link rear suspension with adjustable DNM air shock and 120mm front air fork isolates rider from rough roads
- Tektro HD-E350 4-piston hydraulic disc brakes with 203mm rotors deliver fade-free stopping power at 35+ mph
- Samsung 50G 21700 battery cells maintain high discharge stability across hundreds of high-speed cycles
The Compromises
- Total weight of 88 lbs requires two people or a heavy-duty motorcycle hitch rack for vehicle transportation
- Operating at 35+ mph consumes battery capacity rapidly, reducing high-speed throttle range to 32 miles
- High motor torque requires frequent chain lubrication and drivetrain inspection during aggressive riding
60V Power Stage, 16S Samsung Cells & 35A Sine-Wave Controller
High-voltage low-current dynamics, FOC motor timing, and thermal efficiency
Speed Benchmarks, Hill-Climbing Watts & Real-World Range Telemetry
GPS verified telemetry data with an 80 kg rider across mixed asphalt and gravel routes
Hydroformed 6061 Frame, DNM Air Shock & 26x4.0 Fat Tires
Four-bar linkage geometry, rebound-adjustable air suspension, and high-traction rubber
Chassis & Cycle Parts Specifications
- Custom hydroformed 6061-T6 aluminum alloy frame with reinforced swingarm pivot bearings
- Front 120mm air-spring suspension fork with hydraulic lockout and variable rebound damping dial
- Rear DNM AOY-36RC air shock with dual air chamber tuning and progressive mechanical advantage curve
- 26 x 4.0-inch Kenda Juggernaut puncture-resistant fat tires providing wide tire contact patches
- Heavy-duty alloy rear rack with integrated pannier rail mounts supporting 75 lb cargo bags
Color Matrix Display, Light Cannon & Hydraulic Controls
High-contrast sunlight readability, 110-lux LED headlight, and thumb throttle
Cockpit, Electronics & Ergonomics Features
- Full-color center LCD screen showing live voltage, wattage draw, speed, PAS level, and motor temperature
- 110-Lux high-output LED front headlight wired directly to the main 60V power bus with wide beam spread
- Integrated rear LED taillight with active deceleration brake light sensor and license plate illumination
- Left-side thumb throttle enabling instant power modulation while maintaining full grip on handlebars
- Shimano 8-speed Altus drivetrain with 52T front chainring allowing active pedaling at 30+ mph
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Motor, Inverter & 60V Battery Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Suspension, Brakes, Frame & Drivetrain Specifications
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Speed Classes & Value
Smart Electronics & Ergonomics
Commercial Data & Warranty
Wired Freedom (2026): The Comprehensive Verdict
Buy If You Want
- Riders commuting on 35-45 mph suburban roads who need the speed to safely merge with traffic flow
- Cyclists tackling brutal 20% to 30% hill grades that bog down standard 750W hub motors
- Riders seeking the natural, intuitive power delivery of a responsive torque sensor
- Enthusiasts wanting full air suspension with adjustable rebound and compression tuning
Skip If You Need
- Riders who need a lightweight bicycle (under 60 lbs) for city apartment staircases
- Cyclists strictly restricted to 20 mph Class 1 paved municipal bike paths
- Riders shorter than 5 ft 5 in who may find the 33-inch standover height challenging
Wired Freedom In-Depth: 60V Architecture, Air Suspension & Road Performance
The 2026 Wired Freedom represents a fundamental engineering divergence from typical direct-to-consumer electric bikes. While the vast majority of the industry remains standardized on 48V or 52V systems, Wired engineered a true 60-Volt high-voltage platform. This architectural choice delivers profound thermodynamic and electrical advantages, allowing the motor to draw higher wattage with lower current, minimizing Joule heating throughout the inverter and wiring harness.
1. The 60-Volt Electrical Advantage & Samsung 21700 Cells
Electric power equals voltage multiplied by current (P = V x I). To produce 2,000 Watts on a 48V system, the controller must draw 41.6 Amps, generating intense heat (I²R loss) across phase wires and controller MOSFETs. On Wired’s 60V system, 2,000 Watts requires only 33.3 Amps. This 20% reduction in current lowers internal heat generation by 36%, preserving motor stator integrity and extending cell lifespan. For details on controller transistor health, read our Controller MOSFET & Phase Wire Guide.
2. Dual Air Suspension & High-Speed Chassis Stability
Traveling at 35+ mph on rough asphalt or gravel demands professional suspension tuning. The Wired Freedom pairs an inverted 120mm air front fork with a four-bar linkage rear swingarm driven by a DNM AOY-36RC air shock. Riders can use a shock pump to dial in exact sag percentages (typically 25% for road commuting, 30% for trails). Combined with 26x4.0 Kenda fat tires and Tektro 4-piston hydraulic disc brakes gripping 203mm rotors, high-speed stability is rock solid. Read our brake test in the Brake Pad Glaze & Downhill Test Guide.
3. Range Telemetry, Gearing & Long-Term Ownership
At a sustained 32 mph throttle cruise, the Freedom delivers 32.6 miles on its 1,200Wh pack. Dropping speed to 20 mph in PAS 2 with moderate pedaling extends range to 68.4 miles. The 52T front chainring and 11-34T Shimano 8-speed cassette ensure that riders can actively contribute pedal power up to 34 mph without spinning out (ghost pedaling). Compare the Wired Freedom against the Aniioki A8 Pro Max using our Bike Comparison Tool, calculate commute costs in our Range & Fuel Calculator, or explore all guides in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
In high-speed off-road mode, the Wired Freedom achieves a GPS-verified top speed of 38.4 mph on flat asphalt with an 80 kg rider. Out of the box, it ships configured to standard Class 2 (20 mph) and can be toggled to Class 3 (28 mph) via the display menu.
A 60V system delivers higher wattage with lower electrical current. Lower amperage reduces heat buildup in the controller, motor phase wires, and battery cells, providing stronger acceleration and hill climbing without overheating.
The 2026 Wired Freedom features a bottom-bracket bilateral torque sensor that samples pedaling effort at 100Hz. It also features an independent left-side thumb throttle for instant motor power whenever desired.
The total curb weight of the Wired Freedom is 88 lbs including the 15.5 lb removable battery pack. Removing the battery drops bike weight to 72.5 lbs for easier loading onto heavy-duty vehicle racks.
Yes. The Wired Freedom is equipped with a large 52T front aluminum chainring paired with an 11-34T 8-speed Shimano rear cassette, allowing comfortable, cadence-matched pedaling at speeds up to 34-36 mph.
Using the included 67.2V 4.0A smart fast charger with an XLR 3-pin connector, a full recharge from 0% to 100% takes approximately 5.0 to 5.5 hours.
