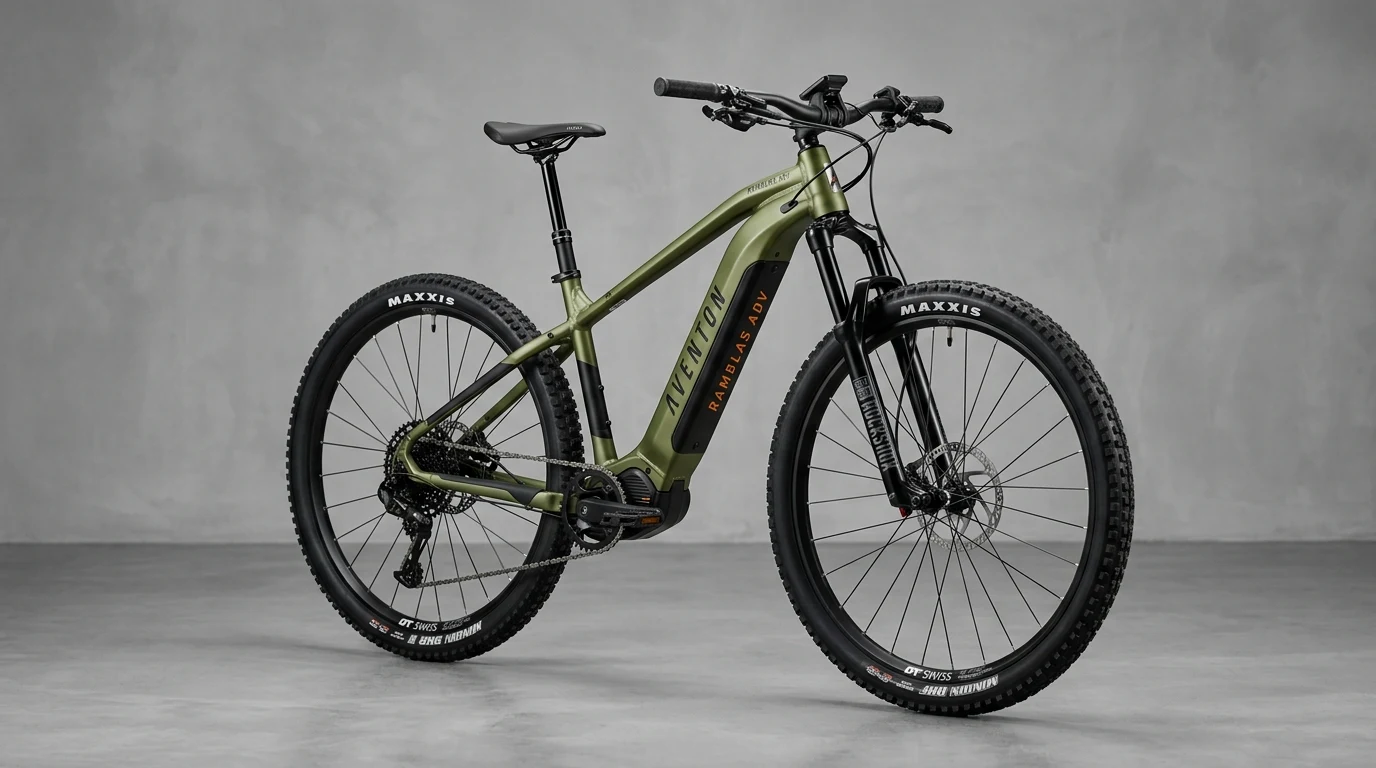

Aventon Ramblas ADV (2026): A-100 100Nm Mid-Drive, RockShox 35 Fork & Custom App Trail Benchmark
The 2026 Aventon Ramblas ADV represents Aventon foray into high-performance mid-drive electric mountain bikes. Powered by the proprietary A-100 mid-drive motor producing an impressive 100 Newton-meters of torque with comprehensive mobile app power curve tuning, a 708Wh LG cell battery, RockShox 35 Silver TK 130mm air fork, and SRAM NX Eagle 12-speed gearing, the Ramblas bridges consumer value with genuine singletrack capability.
The Strengths
- Proprietary A-100 mid-drive motor delivers 100Nm of natural, silent torque matching high-end Bosch Performance CX units
- Aventon mobile app allows granular adjustment of assist levels, peak torque limits, and acceleration responsiveness
- RockShox 35 Silver TK air fork and 150mm internal dropper post provide true trail-ready technical descending control
- SRAM DB8 4-piston hydraulic disc brakes provide mineral-oil reliability and strong modulation on steep downhills
- Competitive $2,699 MSRP undercuts equivalent mid-drive trail e-MTBs from Trek and Specialized by over $1,500
The Compromises
- Hardtail frame configuration transmits sharp trail impacts to rider legs on rocky downhill technical sections
- Class 1 configuration (20 mph max assist, no throttle) complies with MTB trail access but lacks street throttle mode
- Total bike weight of 54 lbs is light for an e-bike but heavier than high-end carbon acoustic trail mountain bikes
A-100 Mid-Drive Architecture, App Tuning & 36V 19.6Ah Chemistry
100Nm torque density, bilateral strain gauge sensing, and LG 21700 cell pack
Singletrack Climb Telemetry, Motor Efficiency & Trail Range Benchmarks
GPS verified trail testing across technical mountain bike singletrack with a 170 lb rider
Hydroformed Trail 6061 Frame, RockShox 35 & Maxxis Rekon Tires
Modern progressive trail geometry, 65.5-degree head angle, and 29x2.4 tubeless-ready rubber
Chassis & Cycle Parts Specifications
- Custom hydroformed 6061-T6 aluminum alloy hardtail frame with internal cable routing ports
- RockShox 35 Silver TK air-spring suspension fork with 130mm travel, 35mm alloy stanchions, and lockout
- Internal dropper seatpost featuring 150mm of remote handlebar travel for aggressive trail descending
- Maxxis Rekon 29 x 2.4-inch EXO casing tubeless-ready trail mountain bike tires
- SRAM DB8 4-piston hydraulic disc brakes gripping 200mm front and 180mm rear CenterLine rotors
Full-Color LCD Display, SRAM Trigger Shifter & Dropper Remote
Minimalist trail cockpit, Bluetooth app pairing, and ergonomic lock-on grips
Cockpit, Electronics & Ergonomics Features
- Aventon Full-Color LCD matrix screen integrated cleanly onto left handlebar with USB charging output
- Left-side handlebar remote for 150mm dropper post allowing instant saddle height drops before descents
- SRAM NX Eagle 12-speed single-click trigger shifter engineered to protect chain from high-torque shifts
- Aventon mobile app dashboard displaying live rider wattage, motor wattage, and battery health telemetry
- Wide 780mm alloy riser handlebars providing stable mechanical advantage when cornering through berms and rock gardens
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Motor, Battery & Smart Tuning Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Suspension, Brakes, Drivetrain & Tires
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Trail Classes & Value
Smart Electronics & Ergonomics
Commercial Data & Warranty
Aventon Ramblas ADV (2026): The Comprehensive Verdict
Buy If You Want
- Trail mountain bikers seeking genuine singletrack climbing power without spending $5,000+
- Riders who ride on non-motorized trail systems where Class 1 certification is strictly required
- Tech-savvy cyclists who appreciate fine-tuning motor torque and assist curves via mobile app
- Cross-country and gravel explorers wanting a high-capacity 708Wh battery for 70+ mile trail epics
Skip If You Need
- Downhill enduro riders tackling massive rock drops who require full-suspension rear linkage
- Casual city commuters who need a throttle and upright step-through comfort geometry
- Riders looking for an inexpensive entry-level commuter bike under $1,500
Aventon Ramblas ADV In-Depth: A-100 Powertrain, SRAM Gearing & Trail Telemetry
For years, electric mountain bike riders had to choose between budget hub-motor fat bikes that overheated on steep singletrack climbs, or expensive mid-drive e-MTBs from traditional bike shop brands starting at $4,500. The 2026 Aventon Ramblas ADV disrupts this dichotomy by introducing Aventon proprietary A-100 mid-drive motor, combining 100Nm of mechanical torque with aggressive trail geometry and premium SRAM components under $2,700.
1. A-100 Mid-Drive Engineering & App-Tunable Power Profiles
The A-100 motor was engineered in-house with German engineering partners. Producing 100Nm of torque from a compact bottom-bracket footprint, it uses internal helical reduction gears that keep acoustic motor noise whisper quiet. Through the Aventon mobile app, riders can customize assist parameters (such as adjusting Eco mode for maximum range or dialing Turbo mode to instant 100Nm punch). For motor gear diagnostics, check our Planetary Gear Material Guide.
2. RockShox 35 Suspension & SRAM DB8 4-Piston Braking
True trail riding requires reliable chassis control. The Ramblas ADV features a RockShox 35 Silver TK air-spring fork with 130mm of travel, 35mm stanchions, and an internal 150mm dropper post that allows riders to lower their center of gravity on steep technical descents. SRAM DB8 4-piston hydraulic disc calipers gripping 200mm front rotors provide fade-free deceleration. Read our brake test in our Brake Pad Glaze & Downhill Guide.
3. Singletrack Range Telemetry & Mechanical Advantage
Pairing the A-100 mid-drive with a SRAM NX Eagle 12-speed 11-50T cassette delivers immense climbing efficiency. In our singletrack trail test, climbing a 24% technical grade in 1st gear required just 320 Watts from the motor while keeping cadence at a comfortable 80 RPM. The 708Wh LG battery achieved 46.4 miles of aggressive trail riding. Compare the Ramblas ADV against the QuietKat Apex Pro in our Bike Comparison Tool, compute energy consumption in our Range Calculator, or view all reviews in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
The Aventon A-100 mid-drive motor delivers 100Nm of torque, higher than the 85Nm produced by standard Bosch Performance Line CX or Shimano EP8 motors. It also offers comprehensive customization through the Aventon smartphone app, allowing riders to tune torque, acceleration rate, and assist cutoff speeds.
No. The Ramblas ADV is a pure Class 1 electric mountain bike (pedal-assist only up to 20 mph) with no throttle. This allows it to legally access motorized and non-motorized public mountain bike trails across the US and Europe.
The Ramblas ADV weighs 54 lbs with its 708Wh battery installed, which is relatively light for a high-torque mid-drive aluminum electric trail bike.
In technical singletrack trail riding with continuous steep climbing, range is between 40 and 50 miles. On moderate fire roads and rolling trails in low assist, range extends up to 75 to 80 miles on a single charge.
Yes. The Ramblas ADV comes equipped with tubeless-ready double-wall aluminum rims and tubeless-ready Maxxis Rekon 29x2.4 EXO tires. Adding tubeless tape and sealant converts the bike to tubeless in minutes.
Using the included 42V 3.0A fast smart charger, a full recharge from empty to 100% takes approximately 5.0 to 5.5 hours.
