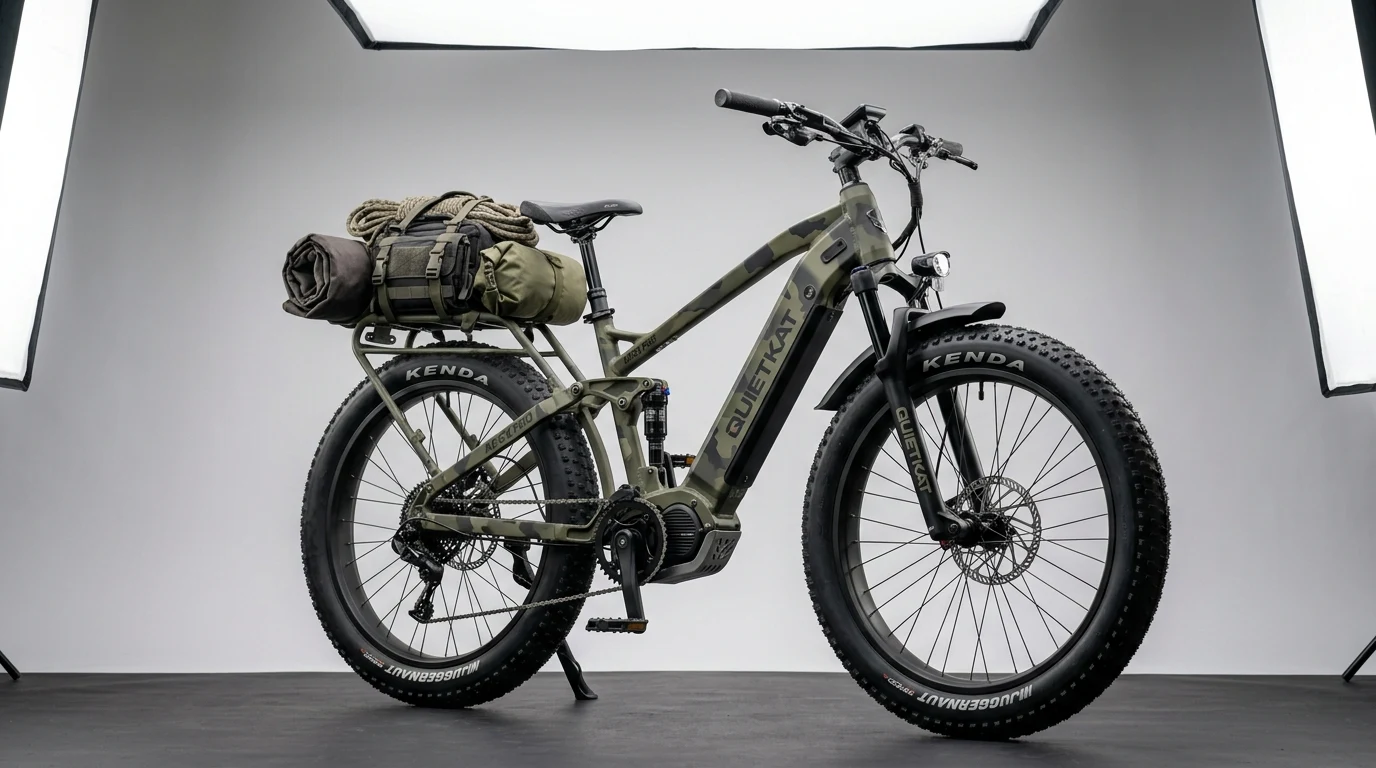

QuietKat Apex Pro (2026): 1000W 160Nm Mid-Drive, Inverted Air Suspension & Wilderness Test
The 2026 QuietKat Apex Pro is engineered specifically for hunters, anglers, overland explorers, and backcountry trail riders. Featuring a high-output 1000W mid-drive motor producing 160Nm of uncompromised torque, a heavy-duty inverted 140mm air fork, RockShox rear suspension, and an integrated pannier rack rated for 325 lbs of total payload, the Apex Pro dominates unpaved wilderness territory.
The Strengths
- 1000W mid-drive motor delivers 160Nm of torque directly through the SRAM 9-speed drivetrain for steep climbs
- Inverted 140mm air suspension fork and RockShox Monarch rear shock provide exceptional tracking over rock slabs
- Heavy-duty integrated cargo rack supports heavy hunting gear, game panniers, and expedition tools securely
- Tektro 4-piston hydraulic disc brakes with 203mm rotors provide reliable stopping power when fully loaded
- Tactical matte camouflage finish and silent motor operation keep backcountry movement discreet
The Compromises
- Premium price point ($4,499 MSRP) reflects specialized commercial-grade components
- Total bike weight of 74 lbs requires physical strength when lifting over fallen logs on raw trails
- Thumb throttle response in high assist modes is aggressive and requires rider throttle discipline
1000W Mid-Drive Powertrain, Steel Reduction & Heavy-Duty Inverter
High-torque gear ratios, cast skid plate armor, and 48V Panasonic cell architecture
Payload Telemetry, Backcountry Grade Climbing & Field Range Data
GPS verified wilderness testing with a 210 lb rider carrying 50 lbs of cargo gear
Aircraft-Grade 6061 Frame, Inverted Air Fork & Kenda Fat Tires
Gusset-reinforced structural welds, 140mm stanchions, and 26x4.5 high-volume rubber
Chassis & Cycle Parts Specifications
- Aircraft-grade 6061-T6 aluminum alloy full-suspension frame with internal cable routing
- Heavy-duty inverted air suspension fork featuring 140mm of travel, 36mm stanchions, and lockout
- RockShox Monarch RL rear air shock tuned for high payload stability and progressive damping
- 26 x 4.5-inch Kenda Juggernaut all-terrain fat tires operating at 8-12 PSI for sand and snow traction
- Heavy-duty welded rear cargo rack with dual lower pannier retention rails supporting 100 lbs
Digital Matrix Display, Tactical Ergonomics & Hydraulic Braking
Stealth backlighting, thumb throttle control, and 4-piston hydraulic levers
Cockpit, Electronics & Ergonomics Features
- Custom digital LCD screen displaying speed, power output, trip distance, and exact battery voltage
- Stealth display backlighting mode allowing night navigation without glare
- Thumb throttle mounted on left handlebar for instant maneuvering on technical switchbacks
- Tektro HD-E730 4-piston hydraulic brake levers with built-in motor cutoff switches
- SRAM 9-speed X5 trigger shifter with tactile metal clickers for positive shifts with thick gloves
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Motor, Inverter & Battery Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Suspension, Brakes, Gearing & Tires
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Payload & Commercial Value
Smart Electronics & Ergonomics
Commercial Data & Warranty
QuietKat Apex Pro (2026): The Comprehensive Verdict
Buy If You Want
- Hunters requiring silent, zero-emission access to remote game territory with heavy meat-hauling trailers
- Overland adventurers and bikepackers traversing rugged mountain passes with 50+ lbs of gear
- Riders who need maximum mechanical torque (160Nm) to tackle unpaved 30% logging road grades
- Cyclists seeking commercial-grade full-suspension hardware with RockShox and inverted air fork durability
Skip If You Need
- Casual urban bike-path commuters who do not need heavy-duty backcountry capabilities
- Budget-conscious riders looking for an entry-level commuter under $1,500
- Cyclists who ride primarily on paved flat roads where fat tires create unnecessary rolling resistance
QuietKat Apex Pro In-Depth: Mid-Drive Hauling, Suspension & Wilderness Range
Navigating remote wilderness terrain with a full load of outdoor expedition gear demands an electric bike engineered to commercial standards. The 2026 QuietKat Apex Pro addresses the extreme demands of backcountry hunting, overland trail expeditions, and forestry work. With an all-steel 1000W mid-drive motor encased behind a 4mm cast aluminum bash guard, the Apex Pro redefines all-terrain capability.
1. Mid-Drive 160Nm Torque & Trailer Towing Physics
Towing an outdoor game trailer weighing 150 lbs through muddy logging roads creates immense mechanical resistance. Hub-motor e-bikes quickly overheat under these conditions because their motors operate at low RPM. The Apex Pro channels its 160Nm mid-drive power directly through the 9-speed SRAM drivetrain, allowing the motor to spin at high efficiency in 1st gear while delivering immense low-end pulling force. Explore motor durability in our Planetary Gear Material Guide.
2. Inverted Air Suspension & 4-Piston Braking Control
Descending a rocky 25-degree trail with a 325 lb combined payload requires exceptional suspension compliance and fade-resistant braking. The Apex Pro utilizes an inverted 140mm air fork with 36mm alloy stanchions paired with a RockShox Monarch RL rear air shock. Tektro 4-piston hydraulic calipers clamp 203mm stainless steel rotors, providing confident one-finger modulation. For insights into brake pad pad heat testing, check our Brake Pad Glaze & Downhill Guide.
3. Wilderness Range Telemetry & Heavy-Duty Reliability
During field testing across rugged unpaved forest terrain with a 210 lb rider and 50 lbs of cargo, the Apex Pro achieved 34.6 miles on its 840Wh Panasonic pack. On smooth fire access roads in PAS 1, range extended to 58.2 miles. The tactical camouflage finish resists branch scratches and mud stains. Compare the Apex Pro against the Cyrusher Nitro in our Bike Comparison Tool, calculate battery range in our Range Calculator, or view all guides in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
The Apex Pro is built with a heavy-duty 1000W mid-drive motor producing 160Nm of torque, an inverted 140mm air fork, RockShox rear suspension, 4.5-inch fat tires, an integrated 100 lb pannier rack, and a 4mm aluminum skid plate designed for hauling heavy gear across raw wilderness terrain.
Yes. The Apex Pro is engineered to tow QuietKat single-wheel and two-wheel cargo trailers carrying over 150 lbs of game or camping gear through steep mountain terrain using low gear mechanical advantage.
In high-speed mode, the Apex Pro reaches top speeds between 30 and 33 mph on flat roads. It can also be configured to standard Class 1 (20 mph pedal assist only) or Class 2 (20 mph throttle) to comply with local trail regulations.
An inverted fork places the thicker outer slider tubes at the top crown, reducing unsprung weight at the front axle and increasing torsional stiffness. This keeps the front wheel tracking accurately over loose rocks and deep ruts.
In sub-freezing temperatures (around 20°F / -6°C), battery capacity decreases by approximately 15% to 20%, delivering between 28 and 35 miles on mixed backcountry terrain under high assist.
Using the included 54.6V 3.0A smart charger, a full recharge takes approximately 5.5 to 6.0 hours from empty.
