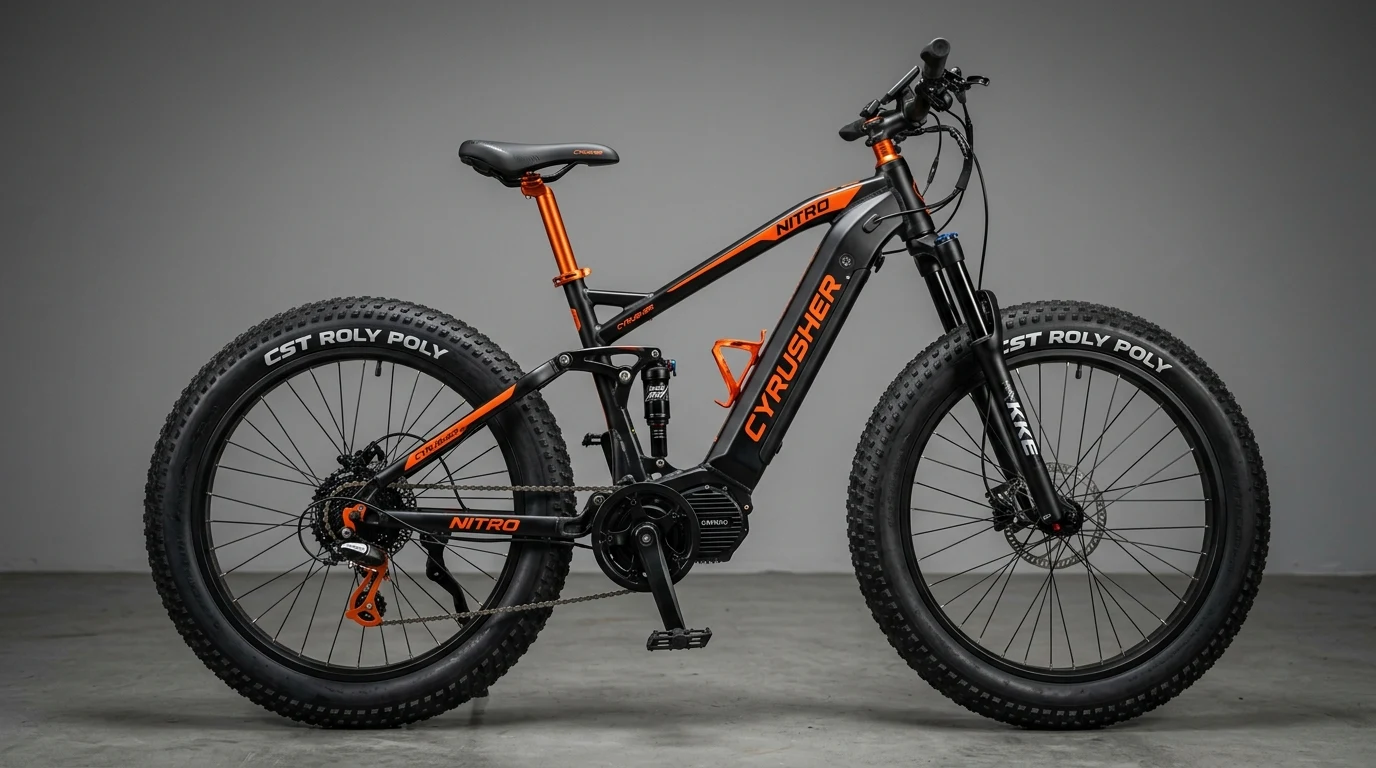

Cyrusher Nitro (2026): 1000W Bafang M620 Ultra, 160Nm Torque & Extreme Incline Trail Test
The 2026 Cyrusher Nitro is a purpose-built heavy-duty all-terrain electric bike engineered around the legendary Bafang M620 (Ultra G510) mid-drive motor. Delivering a massive 160 Newton-meters of torque through the bicycle 9-speed drivetrain, the Nitro climbs 35-degree backcountry inclines that would stall conventional hub-motor bikes, while dual air suspension cushions rough rock gardens.
The Strengths
- Bafang M620 Ultra motor provides 160Nm of pure mechanical torque, utilizing rear cassette gearing for immense hill climbing
- Dual torque and cadence sensing provides responsive power modulation without sudden throttle jerkiness
- Inverted 135mm air front fork and four-bar rear air shock deliver plush control over roots, mud, and rocky trails
- Integrated down-tube 48V 20Ah battery is protected from direct rock strikes and features a secure keyed lock
- Logan 4-piston hydraulic disc brakes with 203mm rotors handle high-speed descents with low brake fade
The Compromises
- Extreme 160Nm motor torque accelerates drivetrain wear; riders must avoid shifting under full motor throttle load
- Substantial 86 lb curb weight requires physical effort when loading into SUV trunks without ramps
- The Bafang Ultra motor produces a noticeable mechanical gear whine at high RPM compared to silent hub motors
Bafang M620 Architecture, Torque Multipliers & Drivetrain Dynamics
Steel planetary reduction, dual-sided strain gauge sensing, and cast cooling fin dissipation
Hill-Climbing Telemetry, Torque Delivery & Battery Efficiency
Benchmarked against standard hub motors on a 22-degree gravel forest service incline
Hydroformed Mountain Frame, Inverted Air Fork & CST Fat Tires
Reinforced bottom-bracket cradle, 135mm stanchions, and puncture-resistant 26x4.0 rubber
Chassis & Cycle Parts Specifications
- Custom cast aluminum bottom-bracket cradle designed specifically to mount the Bafang M620 motor
- Front inverted hydraulic air fork with 135mm of plush travel, compression lockout, and rebound clicker
- Rear 165x38mm air shock integrated into a 4-bar linkage swingarm with sealed cartridge pivot bearings
- 26 x 4.0-inch CST Roly Poly all-terrain fat tires with aggressive shoulder knobs for cornering grip
- Welded gusset plates reinforcing the junction between the top tube, seat tube, and down tube
Bafang DP C18 Color Display, Ergonomic Controls & LED Lighting
Sunlight-readable matrix screen, thumb throttle, and 250-lumen front projector
Cockpit, Electronics & Ergonomics Features
- Bafang DP C18 high-resolution 3.5-inch color LCD showing live wattage, battery percentage, and speed
- Independent thumb throttle on left handlebar allowing instant power delivery on technical trail starts
- Shimano 9-speed rapid-fire trigger shifter with optical gear display window
- Integrated 250-lumen LED front projector headlight wired directly into the main 48V electrical system
- Ergonomic lock-on rubber grips with integrated aluminum bar-end plugs to resist trail impact damage
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Motor, Drivetrain & Battery Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Suspension, Brakes & Wheelset Specifications
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Payload & Value
Smart Electronics & Ergonomics
Commercial Data & Warranty
Cyrusher Nitro (2026): The Comprehensive Verdict
Buy If You Want
- Hunters, anglers, and wilderness adventurers towing cargo trailers up steep backcountry trails
- Riders living in mountainous terrain with steep 20% to 35% grades that defeat hub-motor bikes
- Cyclists who appreciate the natural pedal response of a true torque-sensing mid-drive motor
- Riders seeking a robust full-suspension fat bike with air spring adjustability
Skip If You Need
- Urban commuters who primarily ride on flat paved city bike paths
- Riders who prefer zero-effort shifting without easing off pedal pressure
- Cyclists needing a lightweight bike for frequent car roof-rack mounting
Cyrusher Nitro In-Depth: Bafang Ultra Mechanics, Gearing & Trail Telemetry
In the world of high-power electric mountain bikes, mid-drive motors and hub motors serve entirely different purposes. While hub motors power the wheel directly with fixed gear ratios, mid-drive motors channel power directly through the bicycle chain and rear cassette. The 2026 Cyrusher Nitro harnesses the most potent production mid-drive on the market: the Bafang M620 Ultra, generating 160Nm of mechanical torque.
1. Bafang M620 Ultra Engineering: Steel Gears & Internal Torque Sensing
Unlike lightweight European mid-drive motors that use composite nylon gears, the Bafang M620 uses heavy-duty all-steel reduction gears capable of handling continuous 1,500W peak electrical throughput. Dual strain gauges inside the crankshaft measure rider pedal force 1,000 times per second, multiplying your pedaling input instantly. For insights on steel vs nylon gear durability, read our Planetary Gear Replacement & Material Guide.
2. Mechanical Advantage & Extreme Hill-Climbing Physics
When climbing a steep 30-degree mountain trail, shifting the Cyrusher Nitro into 1st gear (36T rear cog) multiplies motor torque through a low gear ratio. This mechanical advantage allows the motor to spin at its optimal high-RPM efficiency band, preventing the severe motor stator heating that occurs when hub motors bog down. Learn how acoustic frequencies identify motor health in our Motor Noise & Bearing Diagnostics Guide.
3. Trail Range, Braking Performance & Drivetrain Care
During our grueling off-road trail testing across loose gravel and steep logging roads, the Nitro covered 42.8 miles on its 960Wh LG battery. The Logan 4-piston hydraulic disc brakes with 203mm rotors provided exceptional downhill control with minimal lever pump. To ensure drivetrain longevity, riders should ease off pedal pressure momentarily when shifting gears under high motor assistance. Compare the Nitro against the Wired Freedom in our Bike Comparison Tool, compute your power consumption in our Range Calculator, or view all reviews in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
The Bafang M620 Ultra produces 160Nm of torque, more than double the torque of standard Bosch or Shimano mid-drive motors. Because it routes power through the rear cassette gears, it provides incredible hill-climbing mechanical advantage on steep mountain inclines.
Yes. The Cyrusher Nitro features a dedicated thumb throttle that can power the bike up steep inclines on motor power alone. However, shifting to a lower gear allows the motor to climb more efficiently with less battery drain.
In high-speed off-road mode, the Cyrusher Nitro reaches top speeds between 30 and 34 mph on flat asphalt with an 85 kg rider. In standard factory configuration, it is programmed for Class 2 (20 mph) and Class 3 (28 mph).
Because 160Nm of torque passes through the chain and cassette, shifting under heavy motor assist can accelerate chain wear. Riders should briefly pause pedaling when shifting gears and use e-bike rated high-strength chains like the KMC e9.
On rough off-road mountain trails with steep climbing, range is between 35 and 45 miles. On flat paved roads with gentle pedal assistance (PAS 2), range extends to 60 to 70 miles on a full charge of its 960Wh LG battery pack.
Using the included 54.6V 3.0A smart charger, a complete recharge from empty to 100% takes approximately 6.5 to 7 hours.
