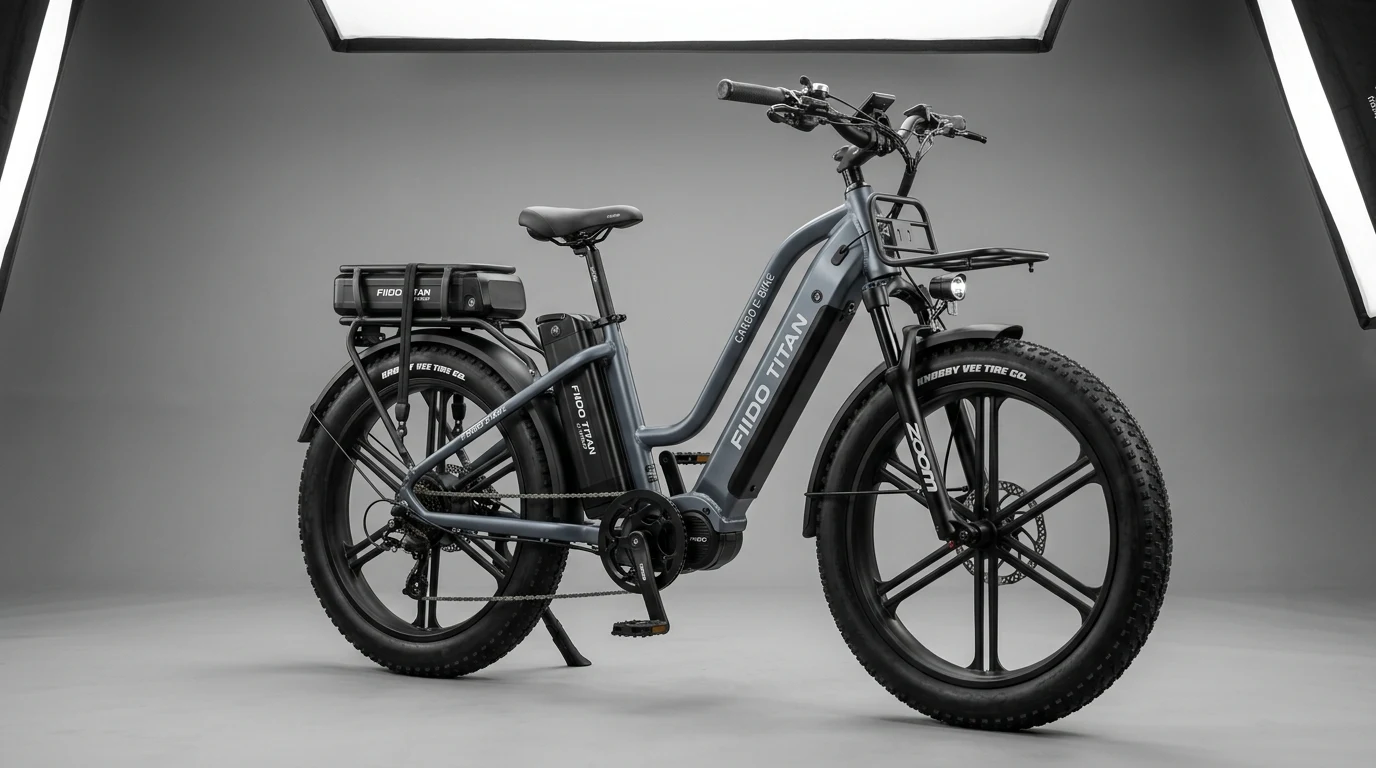

Fiido Titan (2026): Triple Battery 2,146Wh Ecosystem, Cast Alloy Wheels & 250-Mile Range Test
The 2026 Fiido Titan introduces a modular power solution to the cargo electric bicycle sector. Utilizing an integrated 696Wh in-frame battery alongside dual quick-release auxiliary rack batteries, the Titan provides 2,146 Watt-hours of total energy. Combined with one-piece cast magnesium wheels that eliminate broken spokes under heavy cargo loads and 4-piston hydraulic stopping power, the Titan is a commercial-grade workhorse.
The Strengths
- Triple-battery mounting dock allows riders to carry 1, 2, or 3 battery packs depending on daily range needs
- One-piece cast magnesium wheels permanently eliminate loose or snapped spokes under 400+ lb cargo loads
- Sensitive bottom-bracket torque sensor delivers smooth motor response matching natural pedal effort
- 4-piston hydraulic disc brakes with 203mm rotors bring heavy cargo loads to a confident, controlled stop
- UL 2849 certified electrical system provides rigorous fire and thermal protection compliance
The Compromises
- Total bike weight with all three batteries installed reaches 83 lbs, requiring removal for vehicle transport
- Recharging all three 14.5Ah battery packs from empty takes 7 hours when using individual standard chargers
- Step-through frame exhibits minor torsional flex when loaded near the absolute 440 lb payload limit
Triple-Battery Management, Torque Sensor & 750W Powertrain
Parallel power routing, bottom-bracket strain gauge, and 70Nm geared hub efficiency
Payload Telemetry, Triple Battery Range & Brake Stopping Distance
Standardized testing with a 180 lb rider carrying 100 lbs of heavy cargo panniers
Step-Through 6061 Frame, Cargo Racks & Magnesium Wheels
Low standover geometry, integrated front and rear racks, and 26x4.0 fat tires
Chassis & Cycle Parts Specifications
- Hydroformed 6061 aluminum alloy step-through frame allowing easy mounting with child seats or cargo
- Front suspension fork with 60mm of travel and mechanical lockout for smooth road pedaling efficiency
- One-piece die-cast magnesium 6-spoke wheels rated for commercial delivery and cargo carrying
- 26 x 4.0-inch ChaoYang all-terrain fat tires operating at 15-20 PSI for road comfort and puncture defense
- Heavy-duty integrated rear rack with dual battery retention slots and pannier mounting rails
Center Color Display, Smart App Integration & Illumination
IP67 waterproof screen, Fiido smart keyless app, and LED cargo lights
Cockpit, Electronics & Ergonomics Features
- Center-mounted 3.5-inch high-contrast color LCD display with USB-A mobile charging output
- Fiido Smart App connectivity with Bluetooth proximity access and electronic theft tracking
- High-output LED projector headlight mounted above the front cargo rack for unblocked beam spread
- Rear integrated brake light with active deceleration flashing and wide viewing angle
- Shimano 9-speed drivetrain with 11-32T cassette providing versatile gear range for cargo climbs
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Motor, Battery & Charging Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Chassis, Wheels, Brakes & Cargo Dimensions
Chassis & Suspension
Braking & Wheel Hardware
3. Weight, Dimensions, Speeds & Commercial Value
Smart Electronics & Ergonomics
Commercial Data & Warranty
Fiido Titan (2026): The Comprehensive Verdict
Buy If You Want
- Commercial delivery couriers needing all-day 100+ mile operational range without battery swap stops
- Cargo riders and parents transporting heavy groceries or child seats with 440 lb payload support
- Touring cyclists seeking a modular battery system that scales from 696Wh to 2,146Wh
- Riders who want zero spoke maintenance and high wheel durability from one-piece cast magnesium rims
Skip If You Need
- Cyclists looking for a lightweight, easily portable folding bike for small car trunks
- Riders who primarily ride on tight, technical mountain singletrack trails
- Apartment residents who must carry their bicycle up stairs without an elevator
Fiido Titan In-Depth: Triple Battery Chemistry, Cast Wheels & Cargo Economics
The 2026 Fiido Titan addresses the practical realities of heavy-load electric cycling. Carrying 100+ lbs of cargo rapidly drains standard 500Wh to 750Wh batteries, while heavy cargo loads frequently snap traditional steel wheel spokes under lateral curb stress. Fiido engineers resolved both pain points by introducing a modular triple-battery architecture delivering 2,146Wh of energy paired with one-piece die-cast magnesium wheels.
1. Triple-Battery Parallel Chemistry & Active Load Balancing
The Titan incorporates three independent 48V 14.5Ah battery packs: one primary pack housed within the downtube and two secondary packs secured within specialized locking docks on the rear cargo rack. An intelligent Ideal Diode parallel combiner module prevents cross-charging current between packs of differing charge levels while drawing power equally during riding. For a detailed breakdown of combiner dynamics, read our Dual Battery Parallel Balancing Guide.
2. Cast Magnesium Wheel Durability & 4-Piston Stopping Power
Spoke failure is the leading mechanical breakdown on heavy cargo e-bikes. The Titan eliminates spokes entirely by using high-pressure die-cast magnesium six-spoke alloy wheels that cannot break, loosen, or go out of true. Stopping a fully loaded 440 lb bike from 25 mph requires serious hydraulic power; the Titan utilizes 4-piston hydraulic calipers clamping oversized 203mm stainless steel rotors. Read our downhill brake fade benchmarks in our Brake Pad Glaze & Downhill Test Guide.
3. Fleet TCO, Range Telemetry & Commercial Delivery Utility
During standardized commercial cargo testing with 100 lbs of loaded panniers, the Titan delivered 94.2 continuous miles on pure throttle across all three battery packs. In low-assist touring mode (PAS 1), range reached 248.5 miles. With operating costs averaging under $0.08 per delivery mile, the Titan offers immense fleet ROI. Learn more about commercial cost structures in our E-Cargo Fleet TCO Guide, calculate your energy usage in our Range Calculator, or compare the Titan against other cargo models in our Bike Comparison Tool.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
The Fiido Titan uses an intelligent parallel combiner module that connects up to three 48V 14.5Ah battery packs (2,146Wh total). You can ride with one, two, or three batteries installed. The system automatically draws power equally from all connected packs without risk of cross-charging.
Each battery pack features its own independent charging port. You can remove the packs to charge them separately indoors, or use multiple chargers simultaneously to recharge all three packs in under 5 hours.
Traditional wire spokes stretch, loosen, and snap under heavy cargo loads and curb strikes, requiring frequent wheel truing. One-piece cast magnesium wheels have zero spokes, making them virtually indestructible and maintenance-free under 400+ lb payloads.
The Fiido Titan is certified for a total payload capacity of 440 lbs (200 kg), which includes the rider weight, 175 lbs on the rear rack, and 55 lbs on the optional front rack.
Out of the box, the Fiido Titan is configured for standard Class 2 (20 mph). Through the digital display settings, riders can access Class 3 (28 mph) and off-road speeds up to 30 mph on flat ground.
Yes. The complete electrical system of the Fiido Titan, including the motor, wiring harness, controller, and battery packs, is fully UL 2849 certified for electrical and fire safety.
