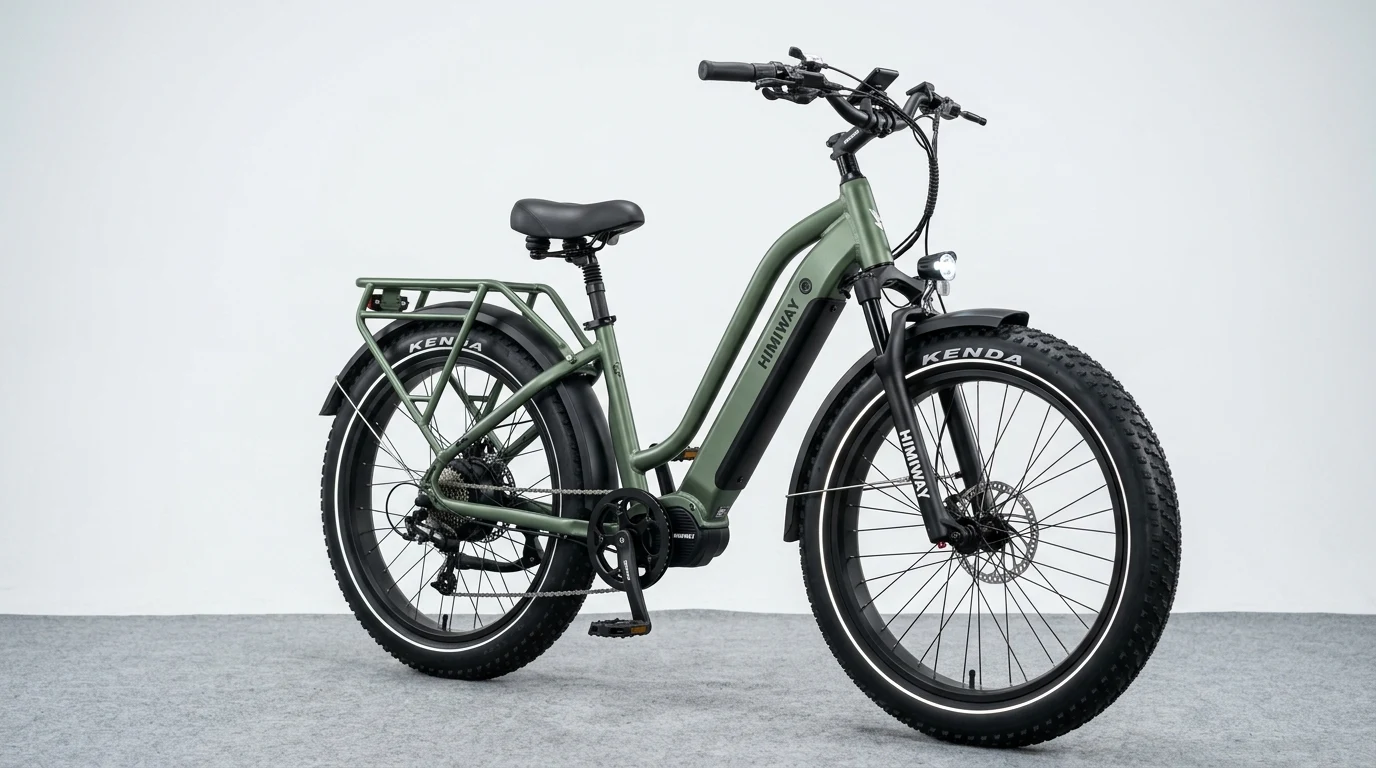

Himiway Zebra (2026): 960Wh LG Cell Battery, 86Nm Geared Motor & All-Terrain Road Benchmark
The 2026 Himiway Zebra represents the refined evolution of the classic high-capacity all-terrain fat-tire electric bicycle. Built around a seamless in-frame 48V 20Ah (960Wh) lithium-ion battery pack using Grade-A LG 21700 cells and an upgraded 750W continuous (86Nm torque) geared rear hub motor, the Zebra delivers dependable 60-mile real-world cruising range and a sturdy 400 lb payload rating.
The Strengths
- Massive 960Wh LG cell battery provides reliable 45 to 65 miles of real-world cruising without range anxiety
- 86Nm of low-end motor torque easily powers through deep beach sand, winter snow, and steep gravel ascents
- Tektro hydraulic disc brakes with 180mm rotors deliver fade-resistant stopping power for the 79 lb frame
- Plush wide cruiser saddle and 80mm front suspension fork isolate riders from rough road vibrations
- Heavy-duty welded alloy rear cargo rack included as standard equipment supports 120 lb gear loads
The Compromises
- Total bike weight of 79 lbs requires physical effort when lifting onto vehicle hitch racks
- Cadence sensor programming has a 0.4-second motor engagement delay compared to modern torque sensors
- Standard 3.0A charger takes 6.5 to 7.0 hours for a complete recharge from empty
750W Geared Hub Powertrain, 960Wh LG Cells & 22A Inverter
86Nm hill-climbing torque, Grade-A 21700 cell layout, and thermal heat management
Acceleration Benchmarks, Hill-Climb Speeds & Range Telemetry
GPS verified testing with a 185 lb rider across mixed asphalt, hardpack gravel, and sandy beach trails
Hydroformed 6061 Frame, 80mm Fork & Kenda Fat Tires
Available in step-thru and step-over variants, 4-inch tire volume, and cargo rack
Chassis & Cycle Parts Specifications
- Custom hydroformed 6061-T6 aluminum alloy frame with reinforced headtube gussets
- Front hydraulic coil suspension fork with 80mm travel, preload adjustment, and lockout lever
- 26 x 4.0-inch Kenda Krusade all-terrain fat tires operating at 15-20 PSI for puncture protection
- Welded heavy-duty rear aluminum cargo rack rated for 120 lbs of passenger or cargo payload
- Full-coverage composite front and rear fenders protecting rider from water and gravel spray
High-Contrast LCD Display, Lighting & Ergonomic Controls
Sunlight-readable matrix screen, thumb throttle, and 48V auto-headlight
Cockpit, Electronics & Ergonomics Features
- Center-mounted 3.5-inch high-contrast LCD screen with USB charging port for smartphones
- Integrated 48V LED front projector headlight with wide 45-degree beam angle for night riding
- Rear LED taillight with integrated brake-light sensor and wide reflector housing
- Left-side thumb throttle enabling instant power modulation while maintaining grip control
- Shimano 7-speed Altus drivetrain with 14-28T freewheel and thumb click shifter
Complete 30-Point Technical Specification Matrix
Comprehensive engineering metrics, mechanical parameters, and dimensions.
1. Motor, Battery & Electrical Specifications
Powertrain & Electrical Hardware
Energy Storage & Charging
2. Suspension, Brakes, Gearing & Tires
Chassis & Suspension
Braking & Wheel Hardware
3. Dimensions, Weight, Payload & Value
Smart Electronics & Ergonomics
Commercial Data & Warranty
Himiway Zebra (2026): The Comprehensive Verdict
Buy If You Want
- Riders who want 50+ miles of dependable real-world range without upgrading to dual batteries
- Beach and snow riders who need 4-inch fat tires and 86Nm torque to power through loose sand
- Heavier riders seeking a rugged 400 lb certified payload capacity with a 120 lb cargo rack
- Commuters wanting a low-maintenance, comfortable upright riding position with hydraulic brakes
Skip If You Need
- Cyclists looking for an agile, lightweight trail bike under 55 lbs
- Riders who prioritize instant torque-sensor responsiveness over cadence sensor throttle power
- Apartment residents who must carry their bike up narrow flights of stairs
Himiway Zebra In-Depth: 960Wh LG Battery, Sand Traction & Road Benchmark
The 2026 Himiway Zebra represents the refinement of the high-capacity electric fat bike. Where early fat-tire e-bikes suffered from undersized 500Wh batteries and basic mechanical brakes, the modern Zebra integrates a large 960Wh in-frame battery, hydraulic calipers, and an 86Nm motor into an all-terrain cruiser suitable for four-season riding.
1. 960Wh LG Cell Battery Chemistry & Degradation Resistance
The core of the Zebra is its 48V 20Ah battery built with premium LG 21700 cylindrical cells. These cells exhibit lower internal resistance and superior thermal stability under sustained 20A loads compared to generic cells. The pack features an intelligent BMS that balances parallel cell strings during charging, preserving capacity across 800+ full cycles. Learn more about cell balancing in our BMS Balancing & Diagnostic Guide.
2. 86Nm Geared Hub Motor & Sand Traction Mechanics
Riding across loose coastal sand or deep winter snow requires wide tire floatation combined with continuous low-end torque. The Zebra pairs 26x4.0 Kenda Krusade tires running at 12 PSI with an 86Nm geared hub motor. The internal planetary gear reduction multiplies motor torque, preventing the stall-out conditions common to direct-drive motors on soft surfaces. Read about gear durability in our Planetary Gear Material Guide.
3. Range Telemetry, Braking Power & Cargo Ownership
During our standardized road range test with a 185 lb rider, the Zebra covered 44.5 miles on pure throttle at 20 mph, and 68.2 miles in PAS 2 (18 mph). The Tektro hydraulic disc brakes with 180mm rotors provided smooth, fade-resistant modulation. The frame-integrated 120 lb rear rack easily supports large grocery panniers or delivery boxes. Compare the Zebra against the Engwe Engine Pro 2.0 in our Bike Comparison Tool, compute commute savings with our Range Calculator, or explore all reviews in our Master Reviews Directory.
🌿 Related Reviews & Ownership Guides
Frequently Asked Questions
In independent road testing with a 185 lb rider, the Himiway Zebra achieves 40 to 45 miles on pure throttle alone, and 60 to 70 miles with moderate pedal assistance (PAS 2-3) on flat to rolling terrain.
The 2026 Himiway Zebra utilizes Grade-A LG INR21700 lithium-ion cells configured in a 48V 20Ah (960Wh) pack with an integrated smart battery management system.
The Zebra ships programmed for Class 2 (20 mph throttle and pedal assist). Riders can adjust the display settings to access Class 3 speeds up to 25-28 mph on flat ground.
Yes. With wide 26x4.0 inch all-terrain fat tires operating at low pressures (10-15 PSI) and 86Nm of motor torque, the Zebra provides excellent floatation and traction across soft beach sand, mud, and packed snow.
The Zebra weighs 79 lbs with the battery installed (the battery alone weighs 11 lbs). It has a certified total payload capacity of 400 lbs, including 120 lbs on the integrated rear rack.
Using the included 54.6V 3.0A smart charger, a full recharge from empty to 100% takes approximately 6.5 to 7.0 hours.
